Code 41 - Throttle Position Sensor (TPS) Signal

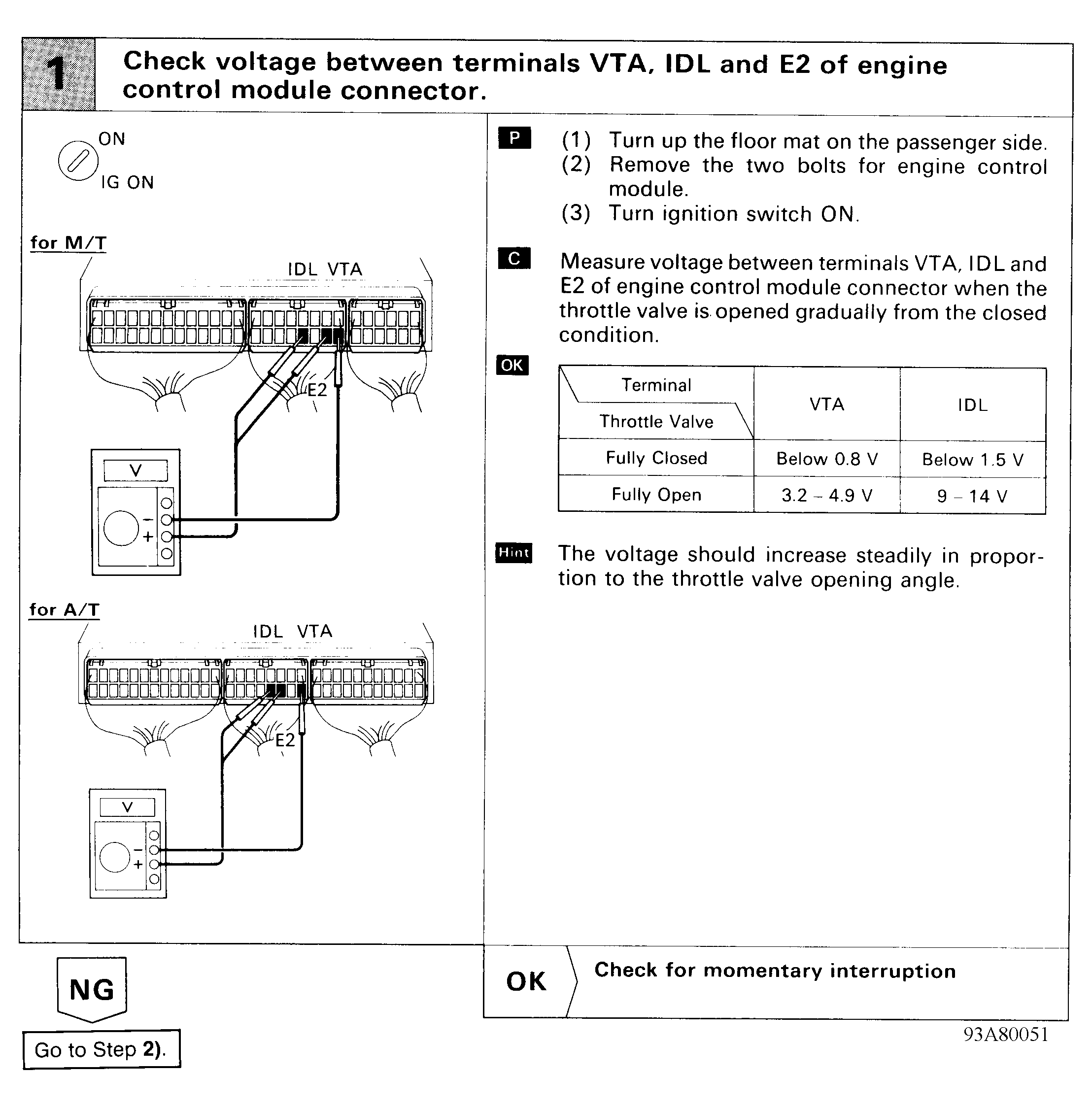

Fig 1: Code 41 Flow Chart - TPS Signal (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Code 41 Flow Chart - TPS Signal (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
