Code 71 - EGR System Malfunction

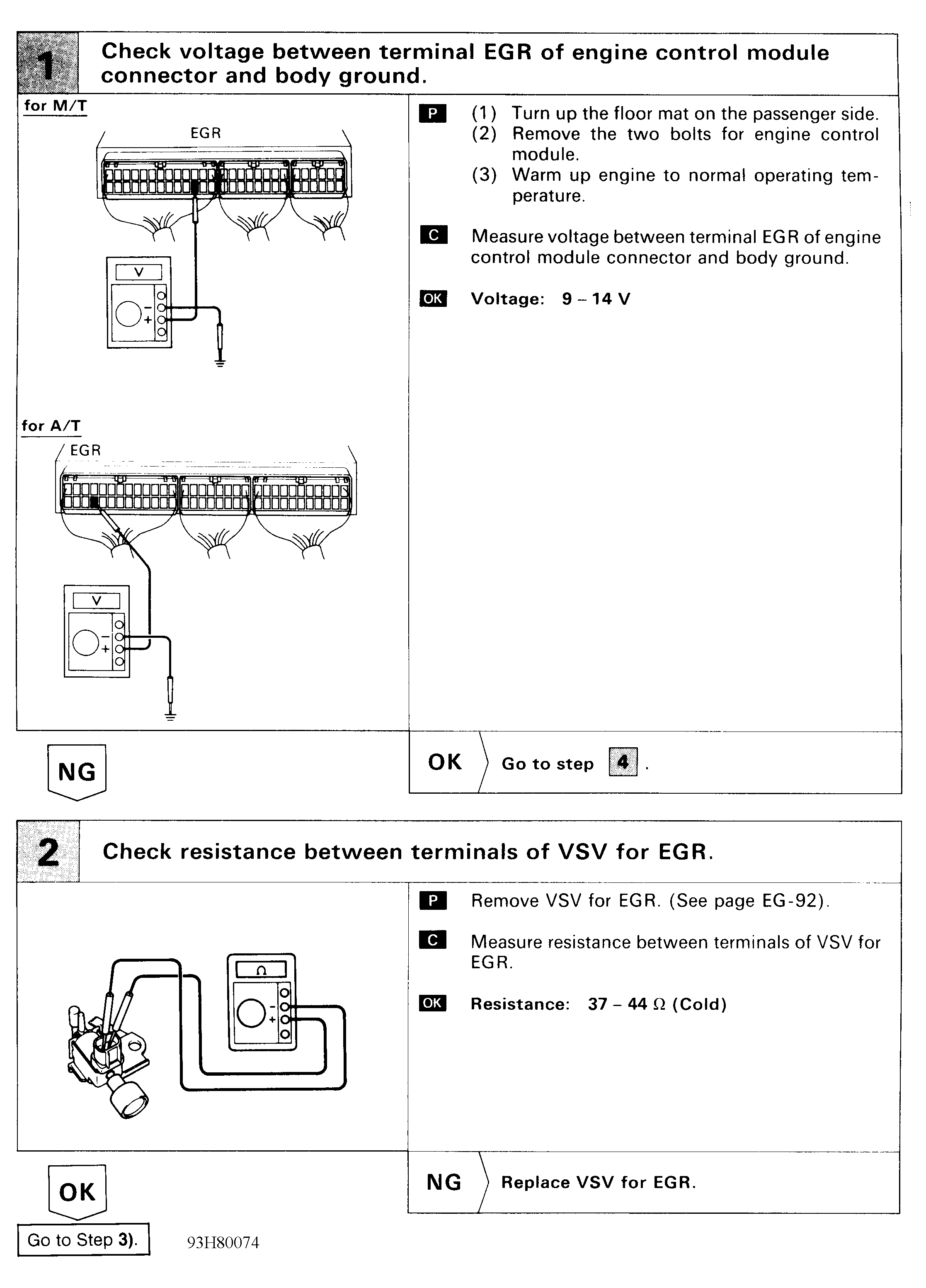

Fig 1: Code 71 Flow Chart - EGR System Malfunction (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

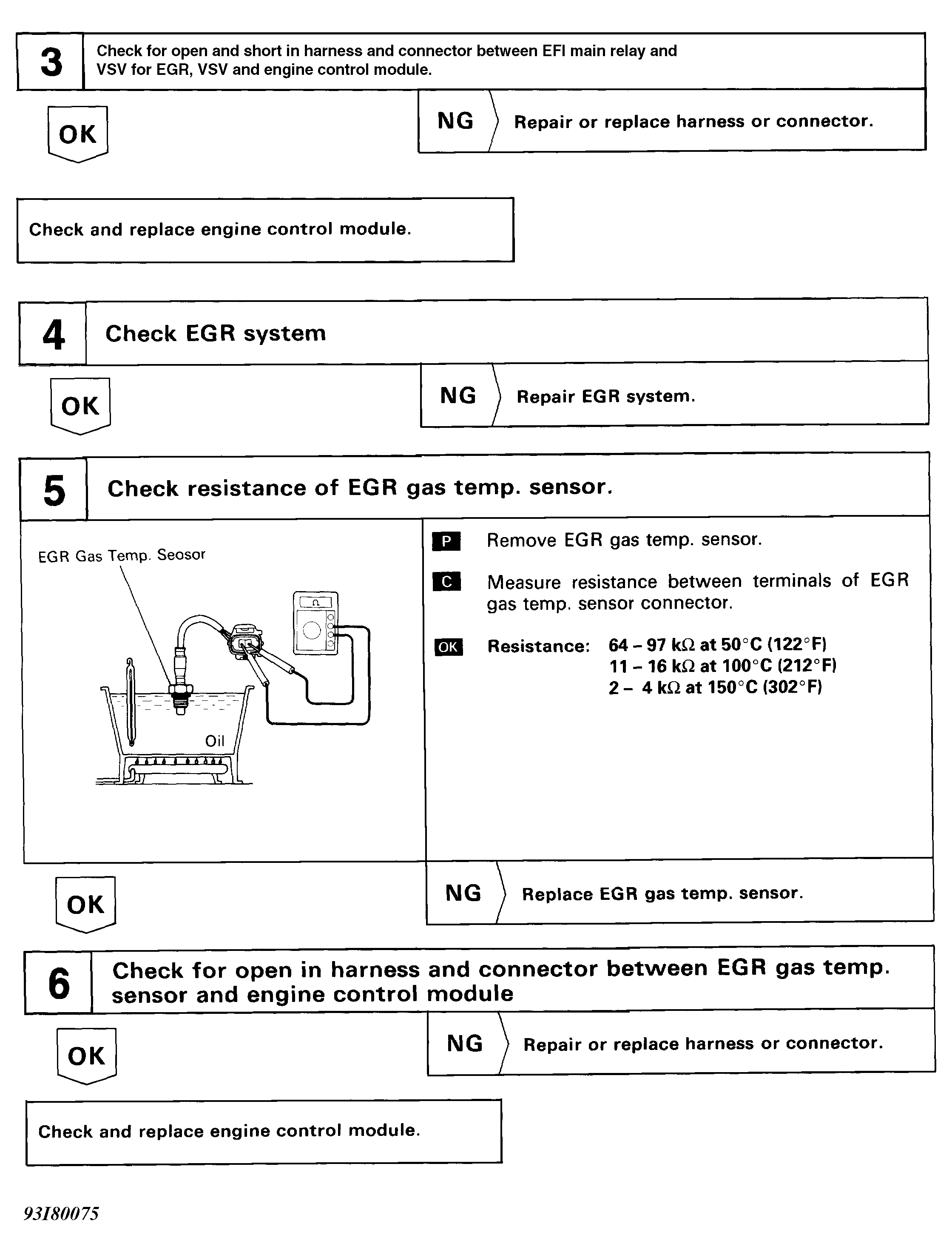

Fig 2: Code 71 Flow Chart - EGR System Malfunction (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
