Test No. 8 - Idle Speed Control Circuit

TEST NO. 12 - IDLE SPEED CONTROL CIRCUIT TROUBLE

Terminal	Trouble	Condition	STD Voltage
ISC1 - ISC4 - E1	No Voltage	Ignition Switch ON	9-14V

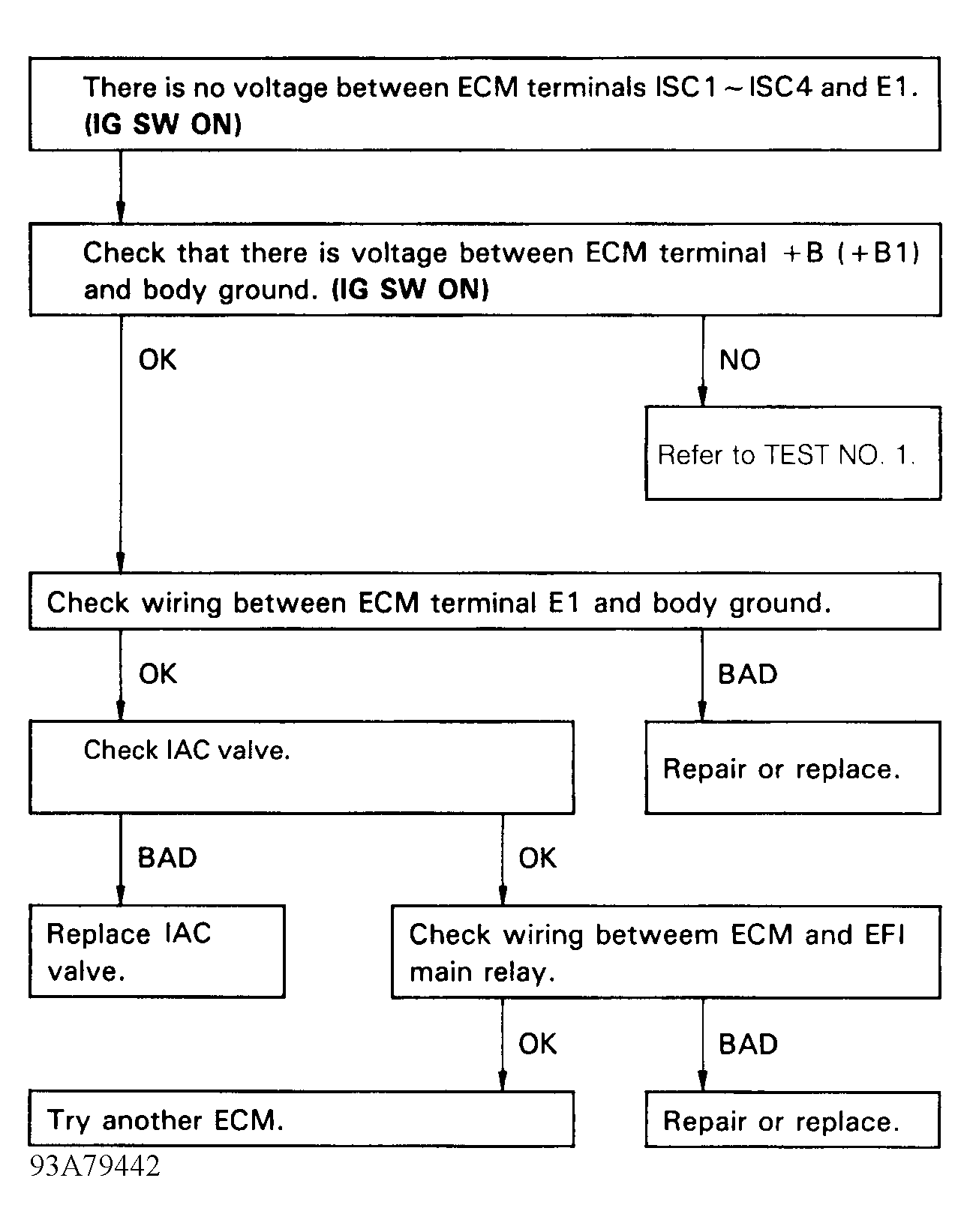

Fig 1: Test No. 8 Flow Chart - Idle Speed Control Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

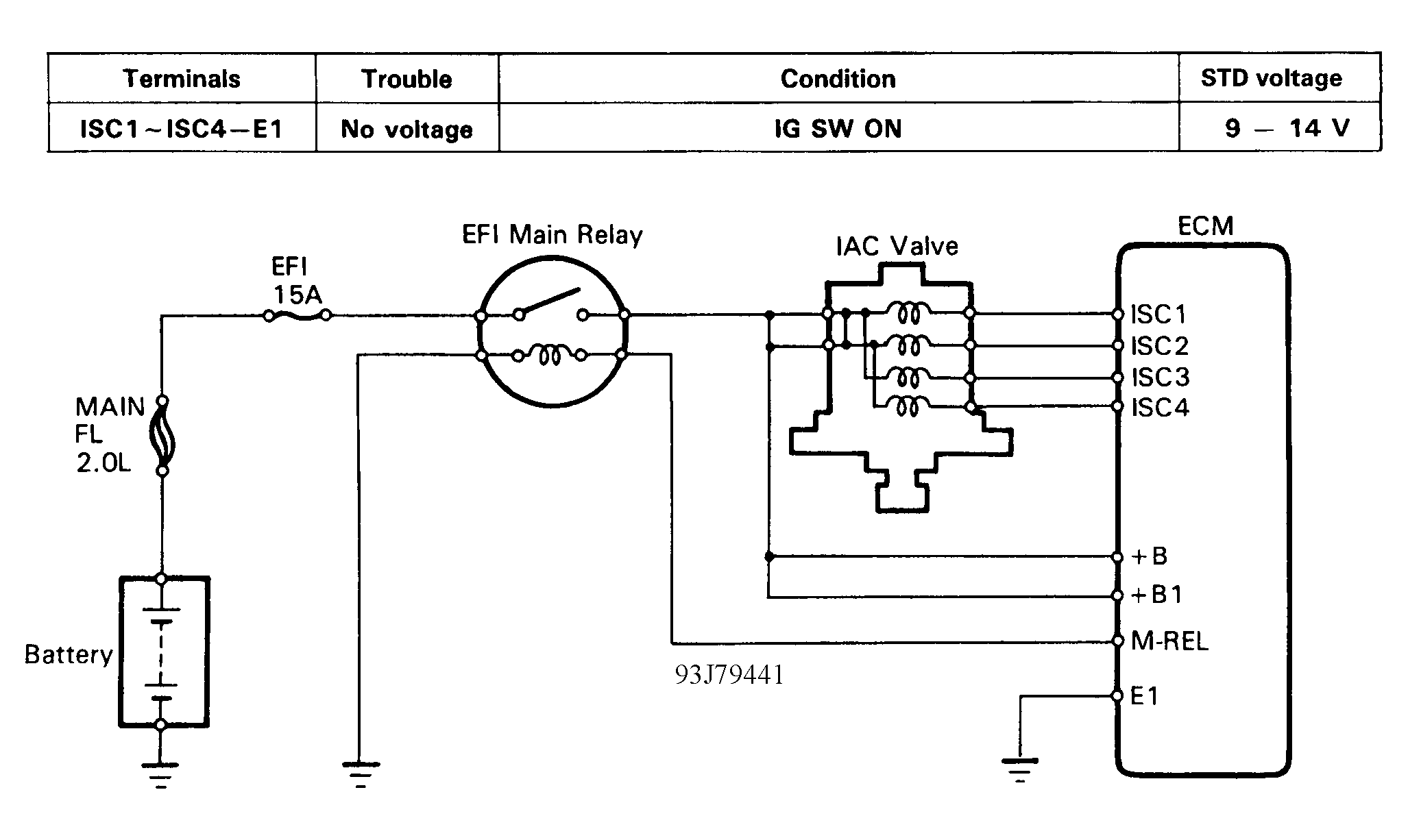

Fig 2: Test No. 8 Schematic - Idle Speed Control Circuit
