Code 21, 27 - O2 Sensor Signal

NOTE: Code 27 applies to 5S-FE only.

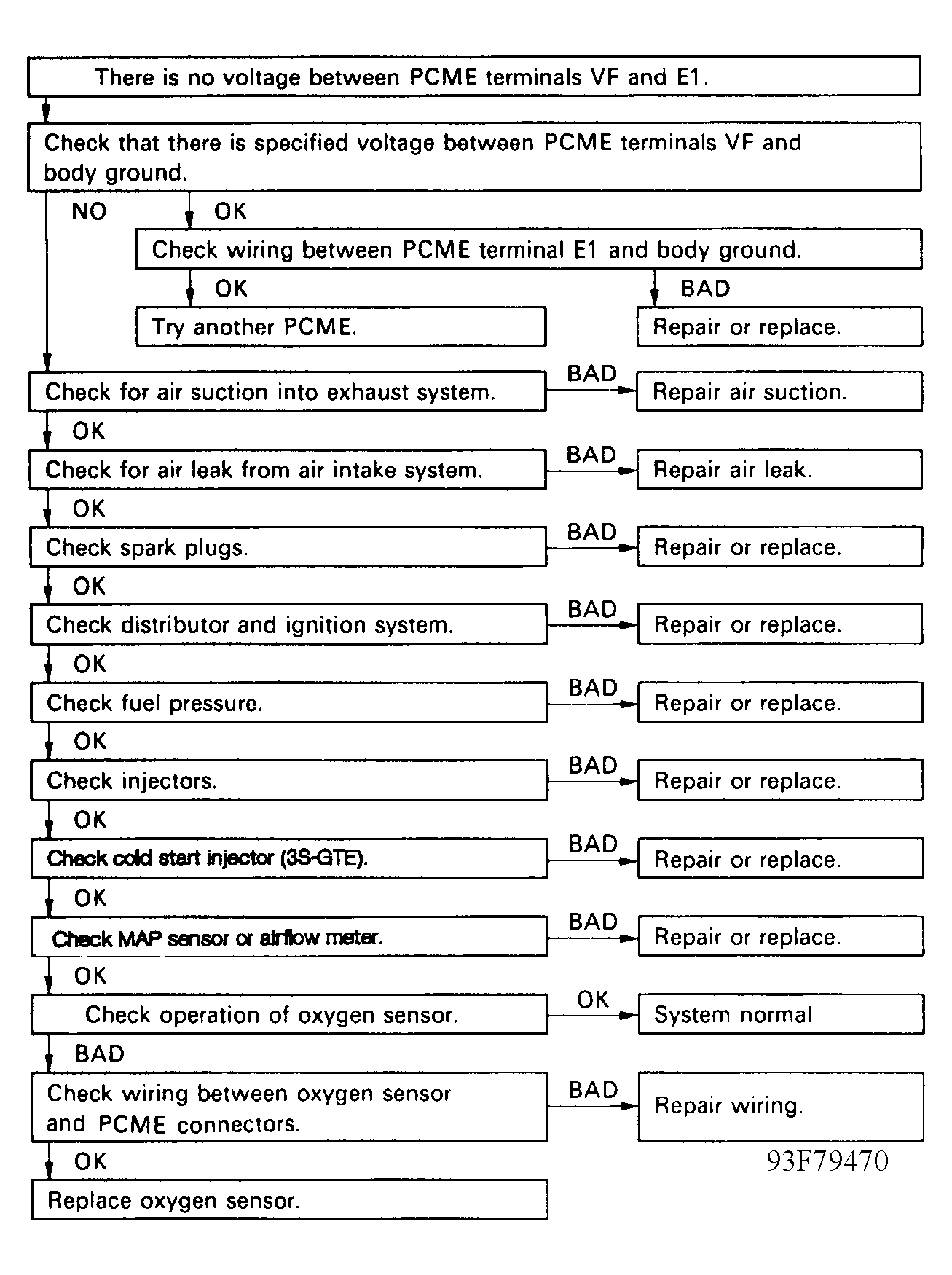

Fig 1: Code 21, 27 Flow Chart (All Engines) - O2 Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

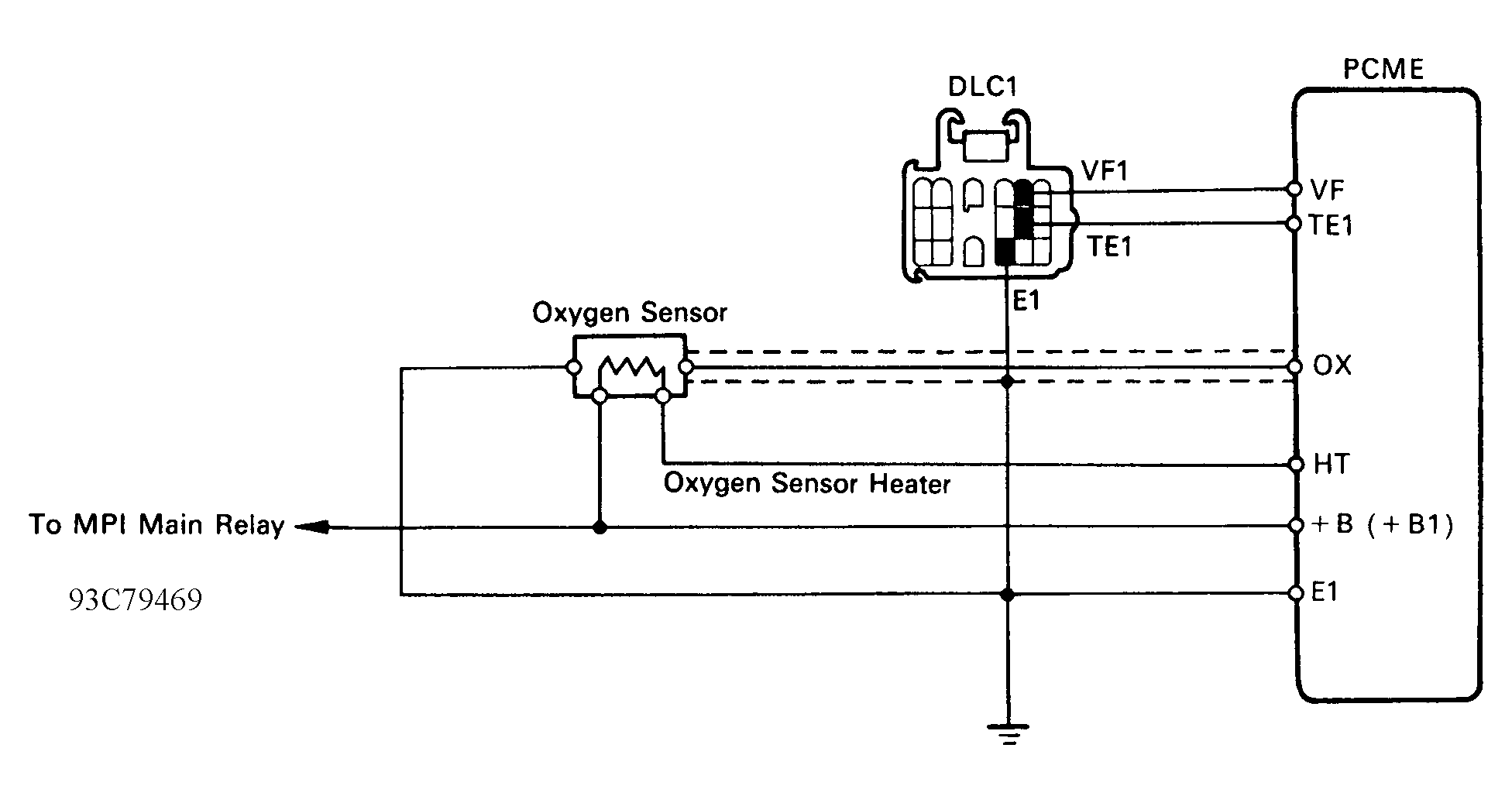

Fig 2: Code 21 Schematic (3S-GTE) - O2 Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

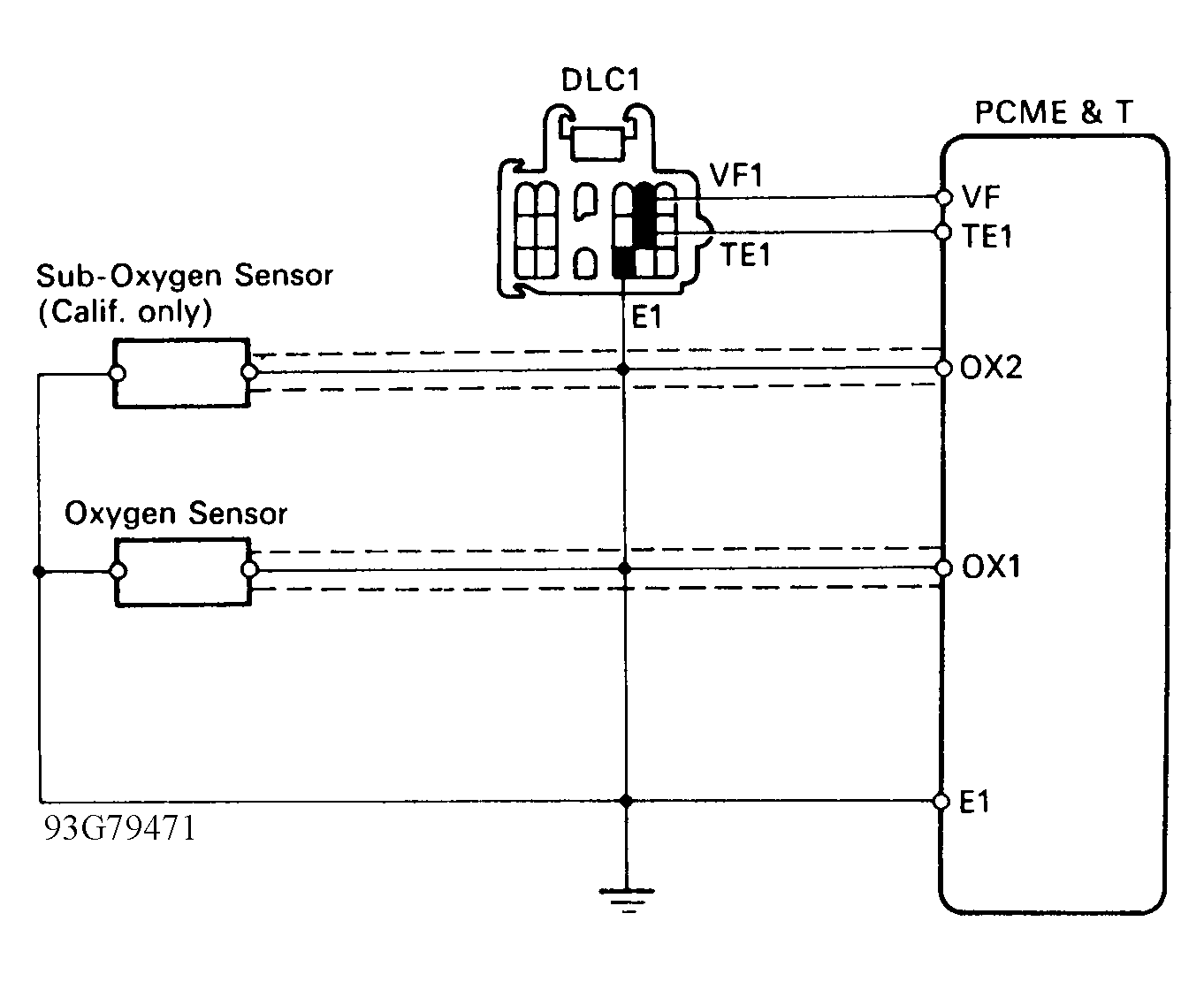

Fig 3: Code 21, 27 Schematic (5S-FE) - O2 Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
