ECM Terminal Identification

CAUTION: Perform all voltage measurements with ECM harness connector installed. Use a high-impedance DVOM (10,000-ohm minimum). Verify battery voltage is greater than 11 volts.

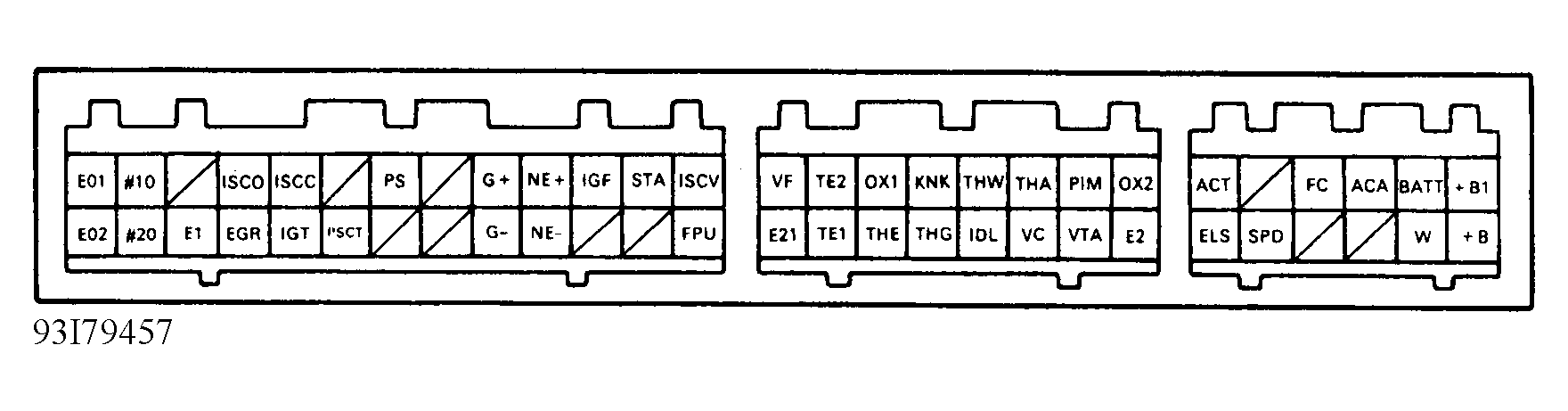

Fig 1: ECM Terminal Identification (3S-GTE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

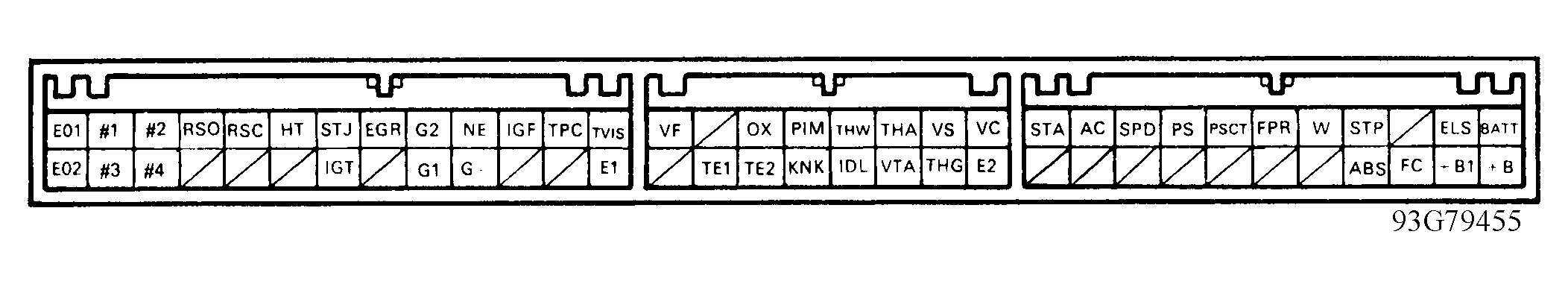

Fig 2: ECM Terminal Identification (5S-FE With A/T)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

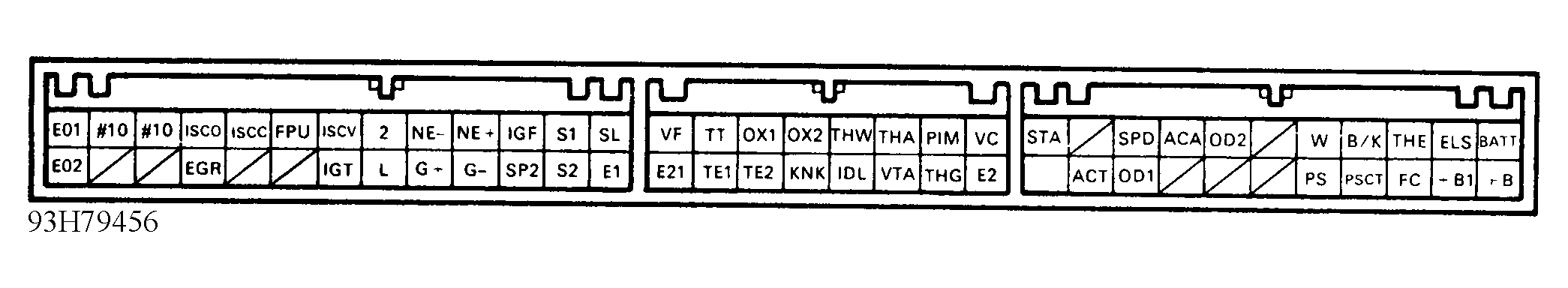

Fig 3: ECM Terminal Identification (5S-FE With M/T)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
