Test No. 9 - Injector Circuit

TEST NO. 9 - INJECTOR CIRCUIT TROUBLE

Terminal	Trouble	Condition	STD Voltage
No. 10, & 20 to E01 & E02	No Voltage	Ignition Switch ON	10-14V

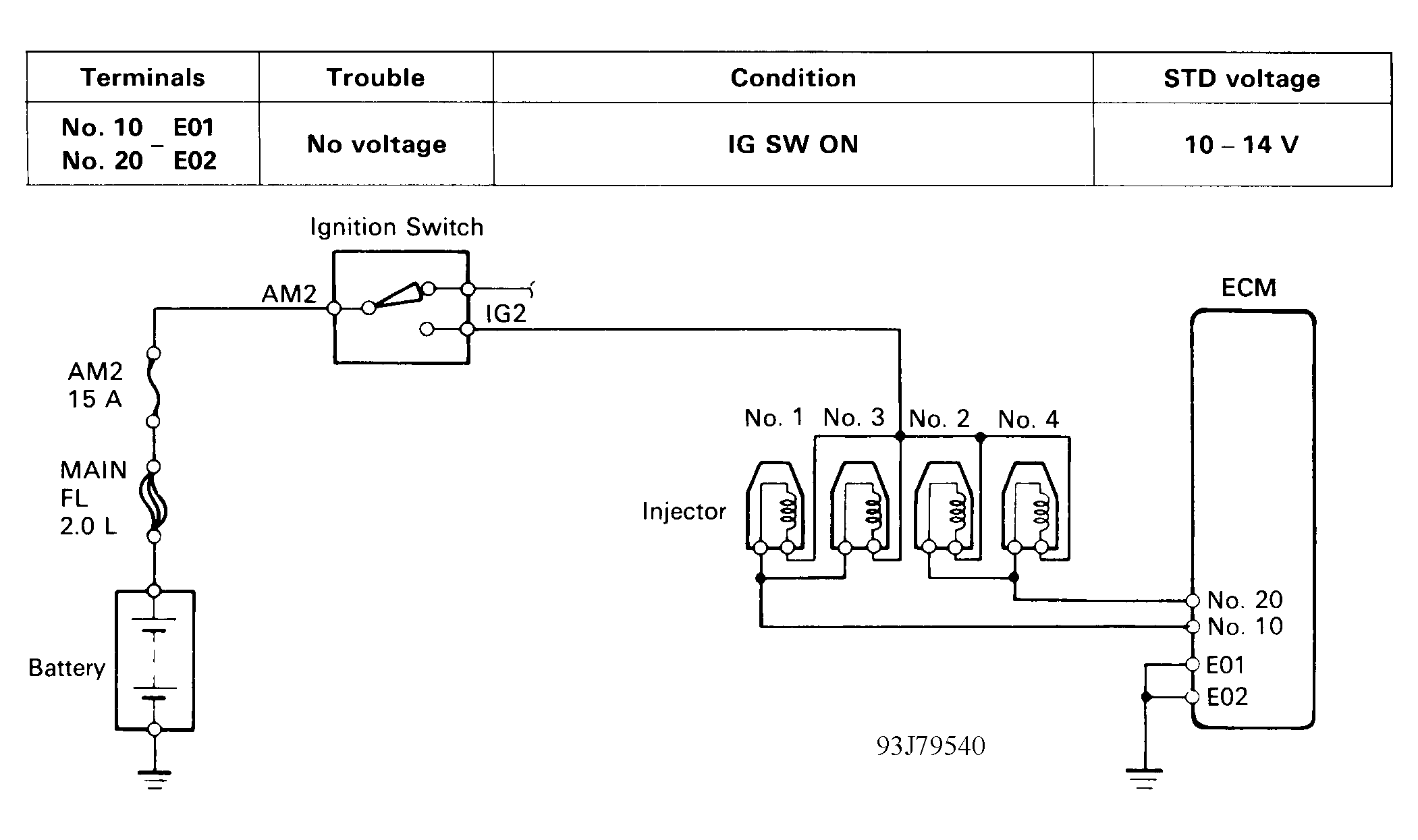

Fig 1: Test No. 9 Schematic - Injector Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

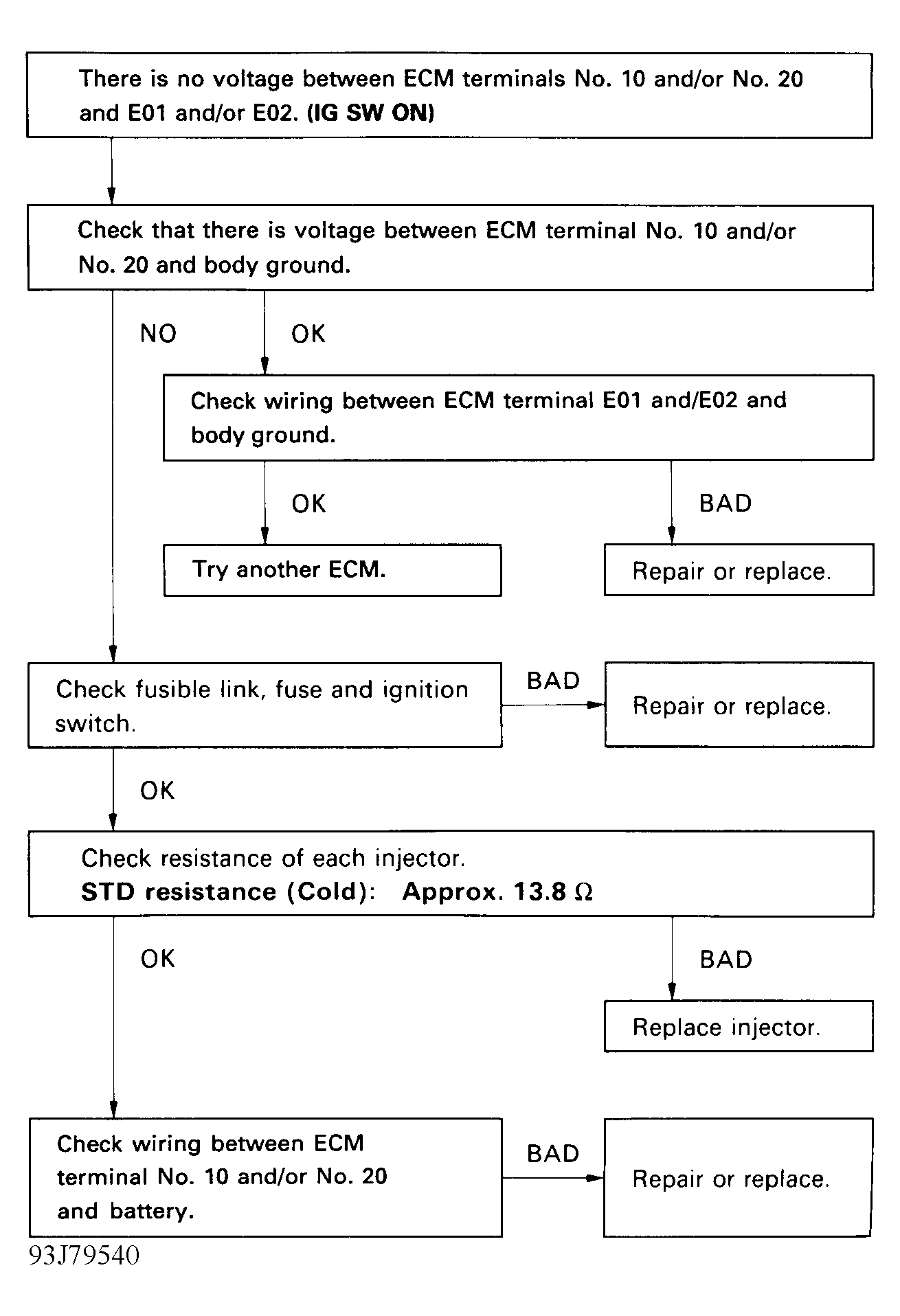

Fig 2: Test No. 9 Flow Chart - Injector Circuit
