Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

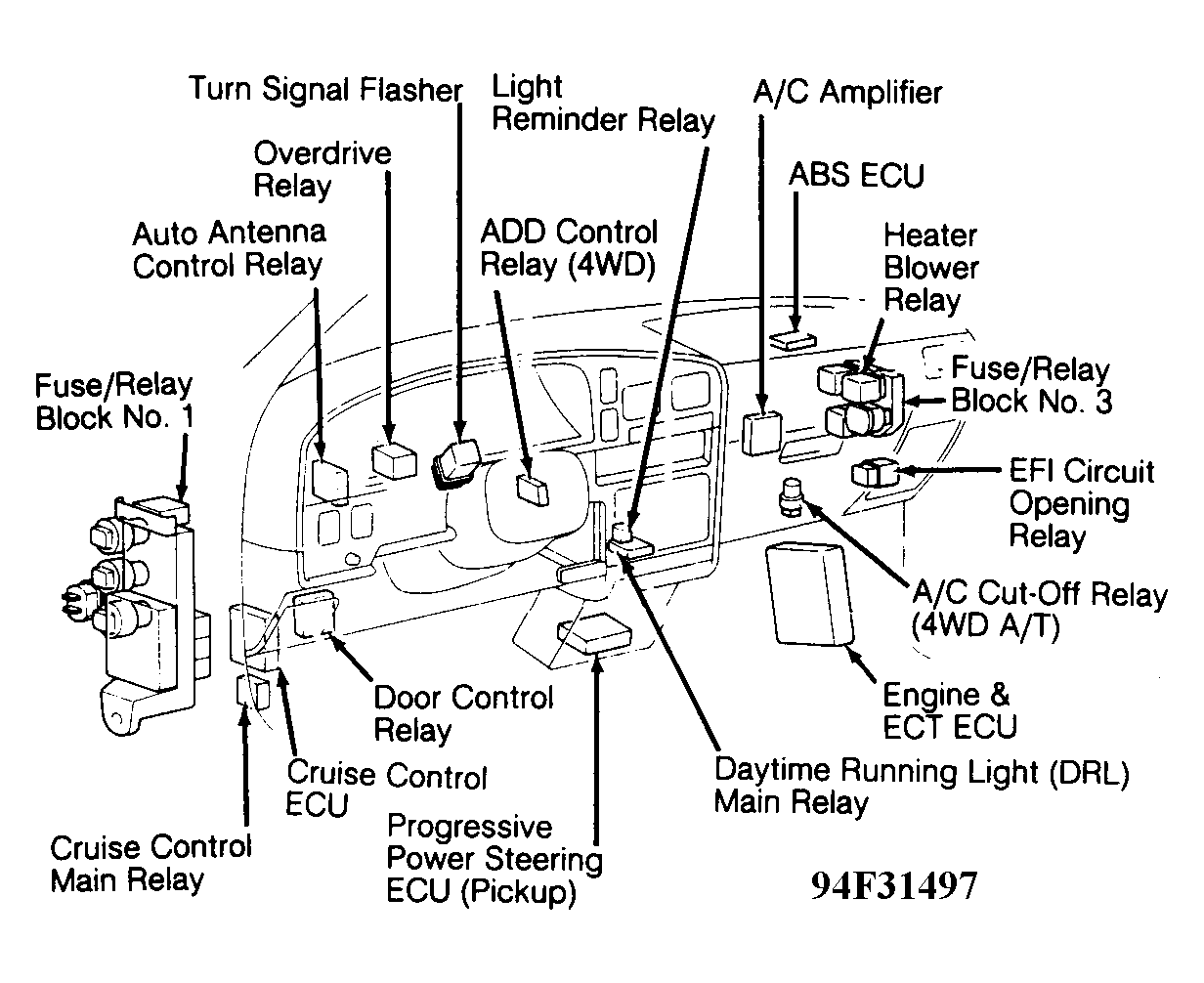

| ABS ECU | Above rear of glove box. See Figure. |
| Cruise Control ECU | Behind left kick panel, near fuse / relay block No. 1. See Figure. |

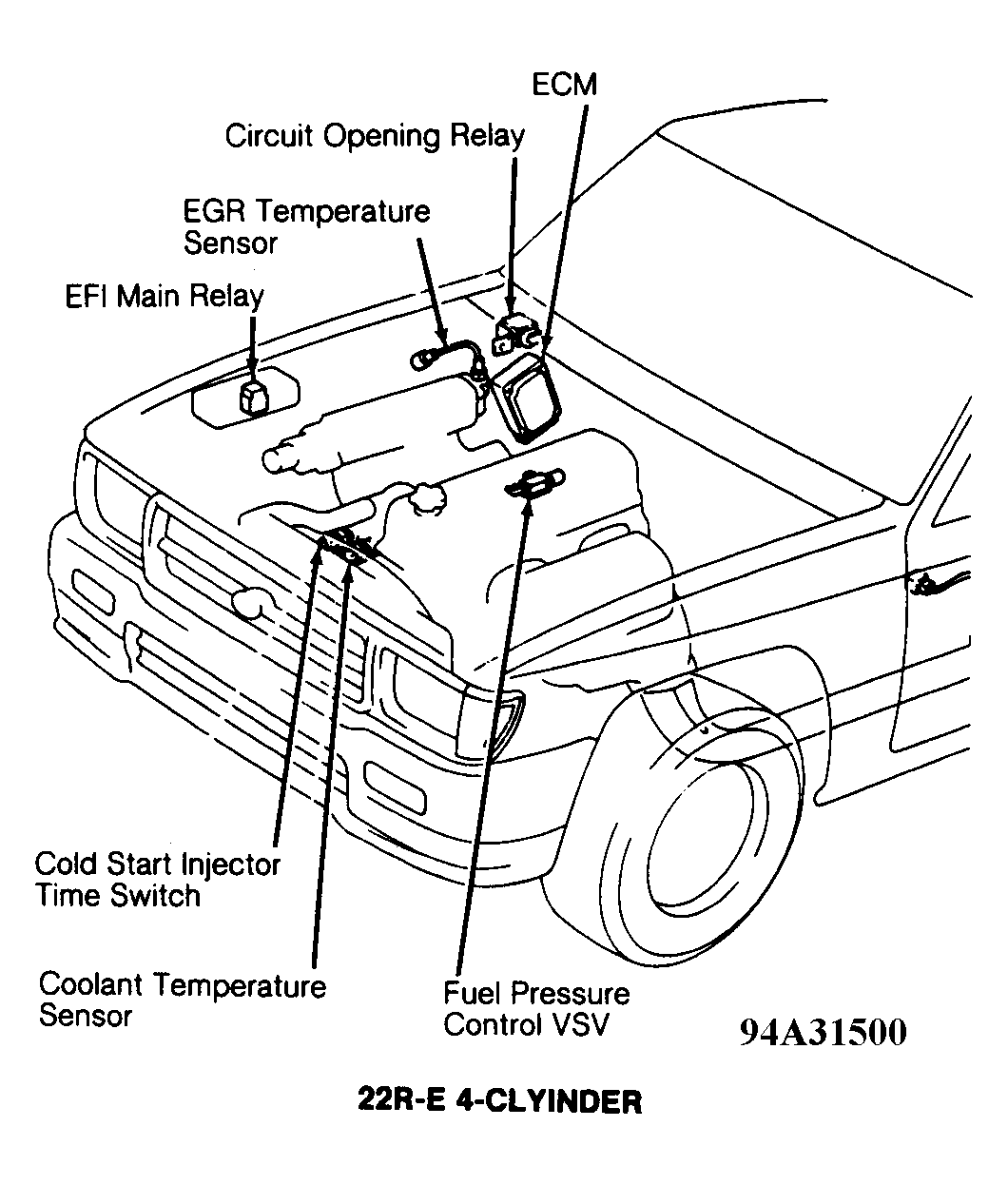

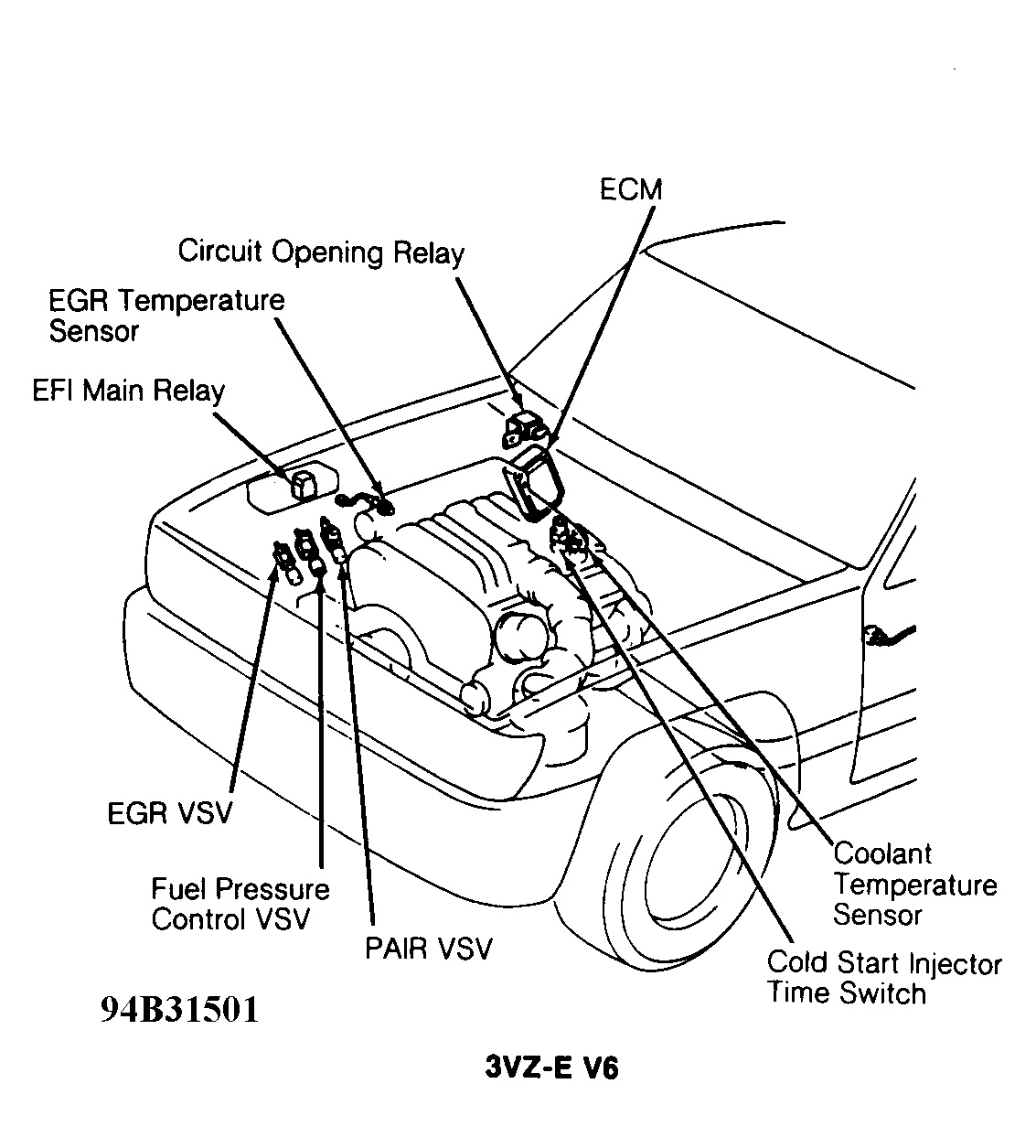

| Engine & ECT ECU | Behind right kick panel. See Figure, Figure & Figure . |
| Progressive Power Steering (PPS) ECU (Pickup) | Mounted to floor under center of dash, under deceleration sensor. See Figure. |

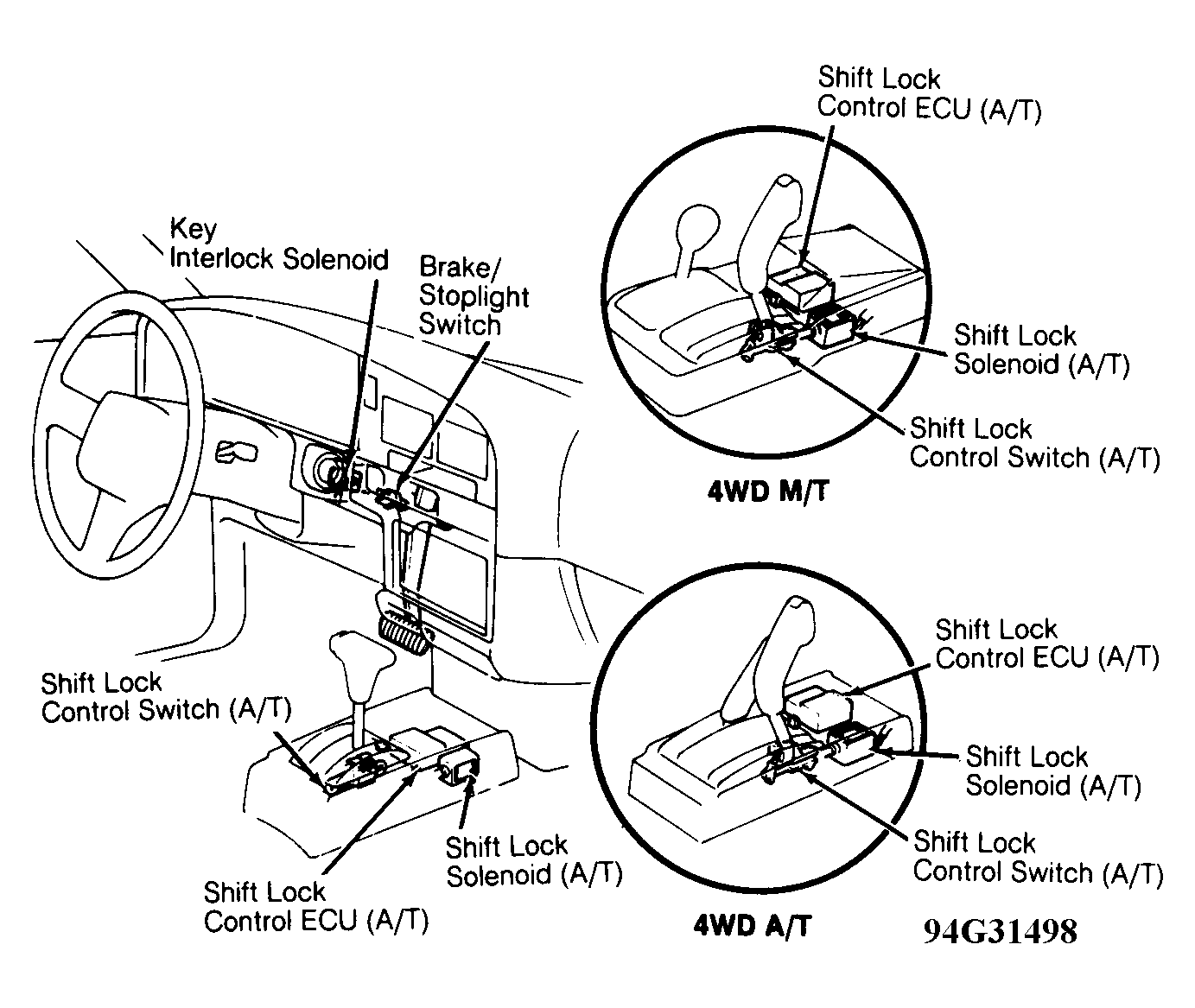

| Shift Lock Control ECU | Under shift lever console. See Figure. |
