DTC 22 - Engine Coolant Temperature Signal

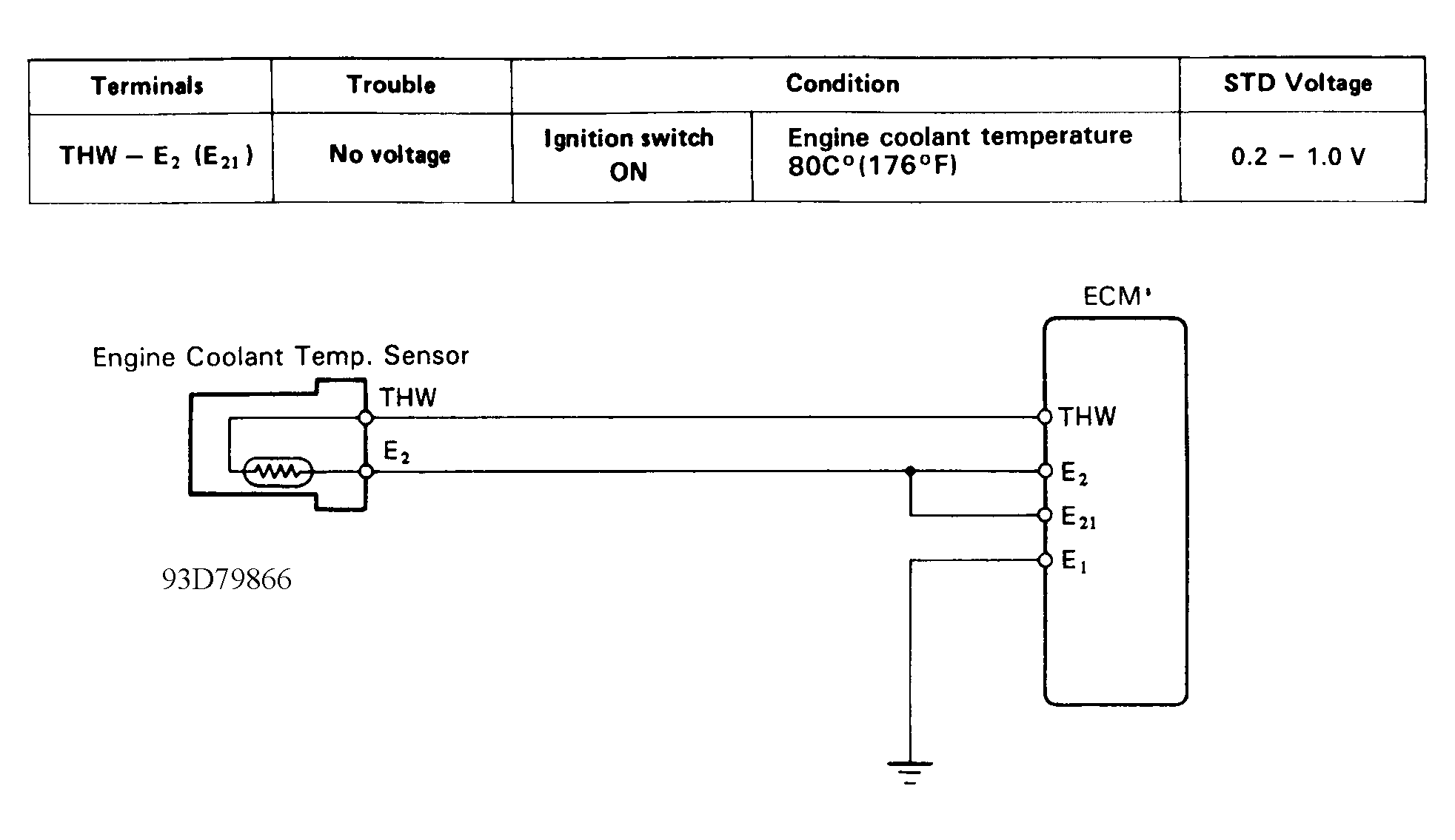

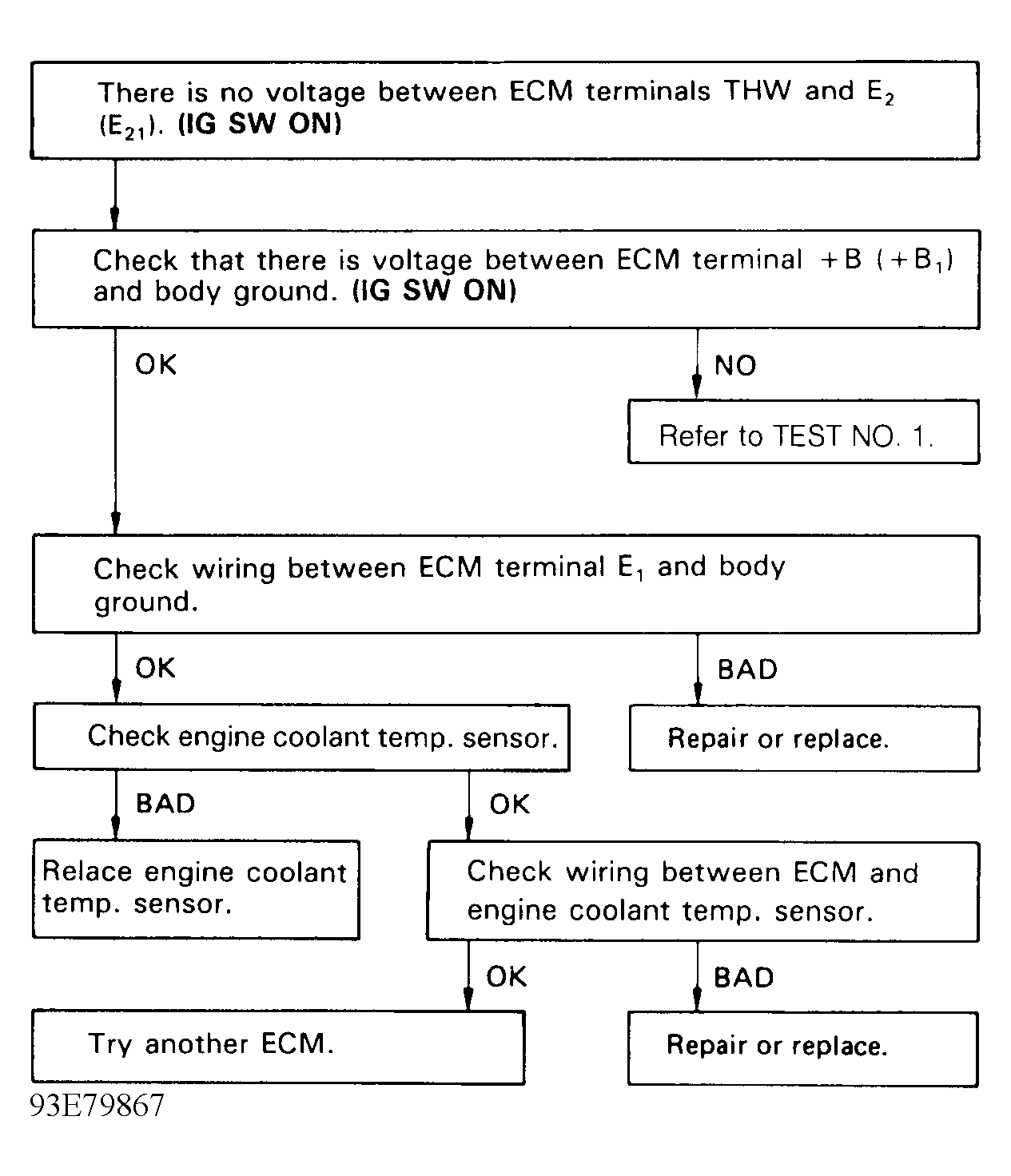

DTC 22 - ENGINE COOLANT TEMPERATURE SIGNAL TROUBLE
| Terminal |
Trouble |
Condition |
STD Voltage |
| THW-E2 (E21) |
No Voltage |
Ignition Switch ON Engine Coolant Temp. 80°C (176°F) |
0.2-1.0V |
