DTC 43 - Starter Signal

DTC 43 - STARTER SIGNAL TROUBLE

Terminal	Trouble	Condition	STD Voltage
STA-E1	No Voltage	Ignition in START position	6V Or More

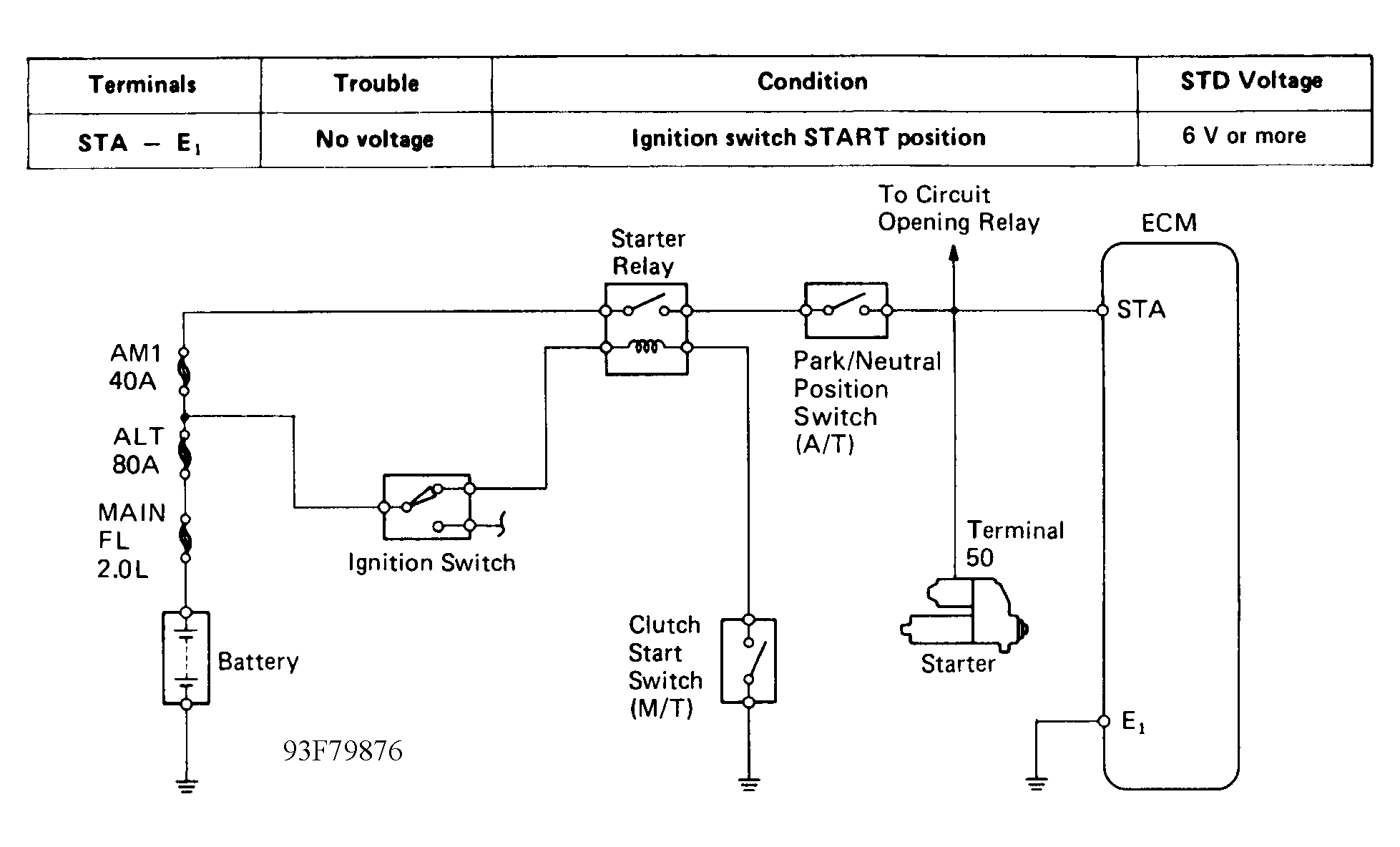

Fig 1: DTC 43 - Schematic

G93F79876

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: DTC 43 - Component Diagram

G93H79878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

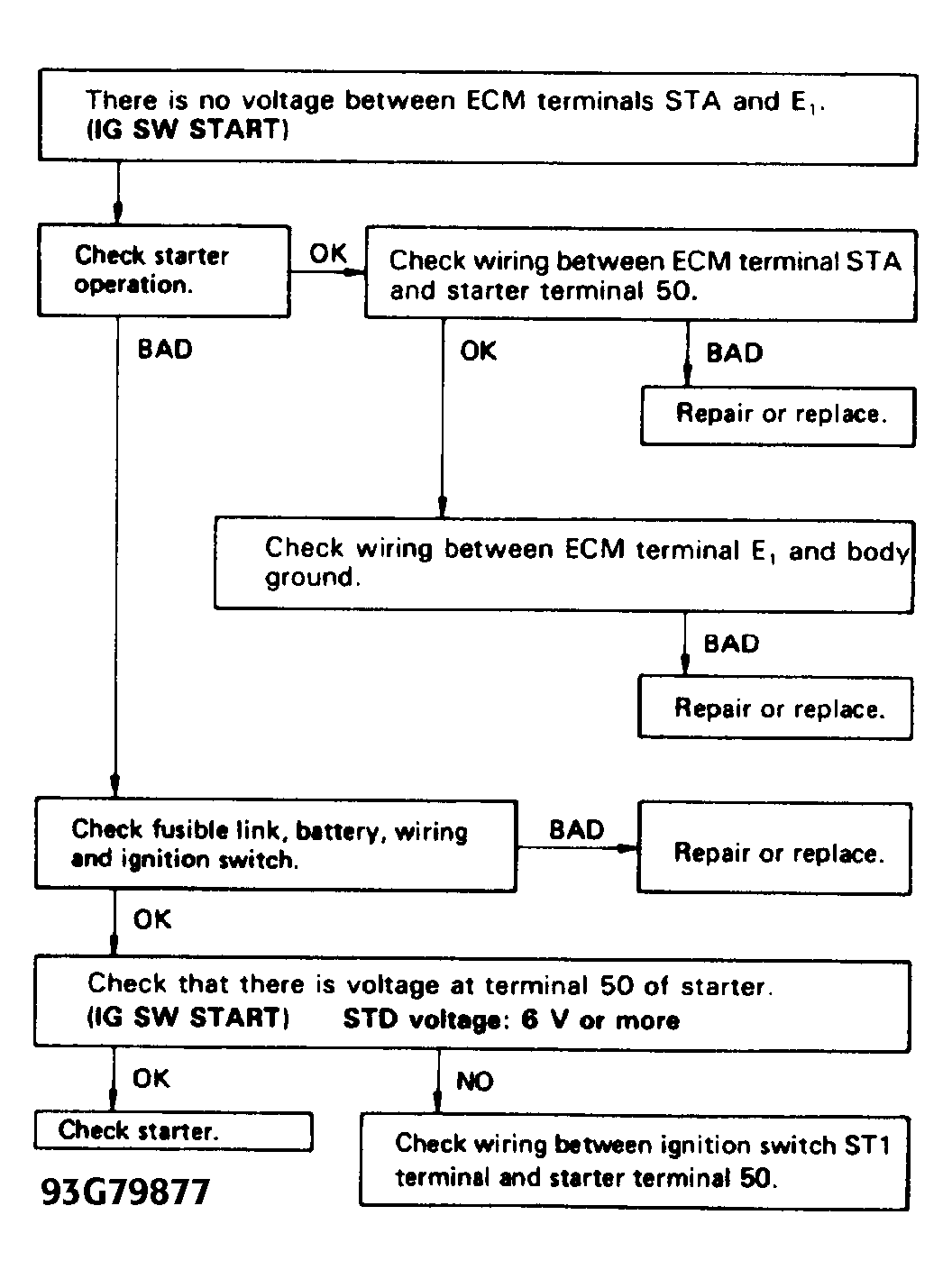

Fig 3: DTC 43 - Diagnostic Flowchart

G93G79877

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
