Test No. 1 ECM (+B) Circuit Check

TEST NO. 1 - ECM (+B) CIRCUIT CHECK

Terminal	Trouble	Condition	STD Voltage
BATT-E1	No Voltage	All	9-14V
+B - E1	"	Ignition Switch ON	"
+B1 - E1	"	"	"

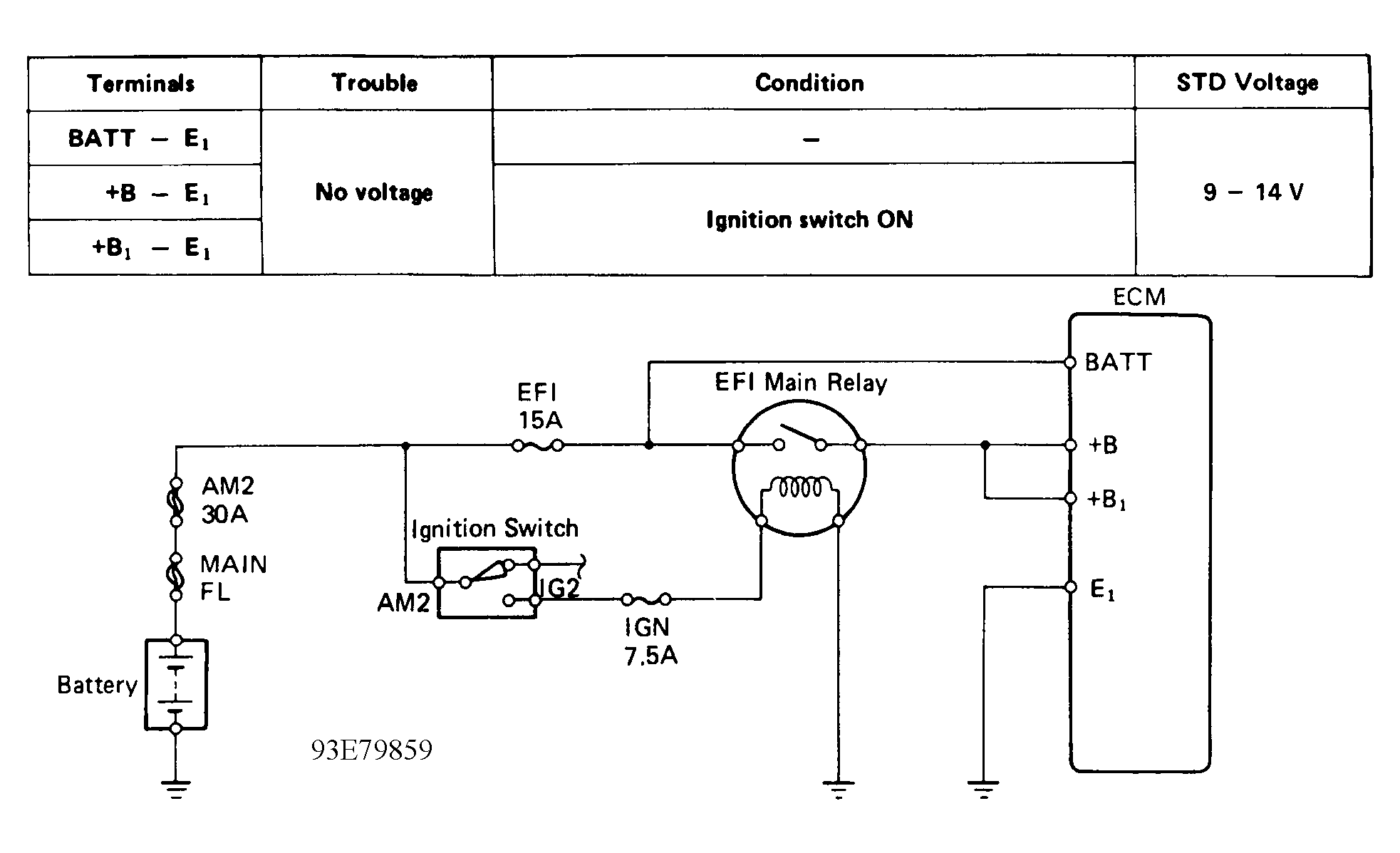

Fig 1: Test No. 1 - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

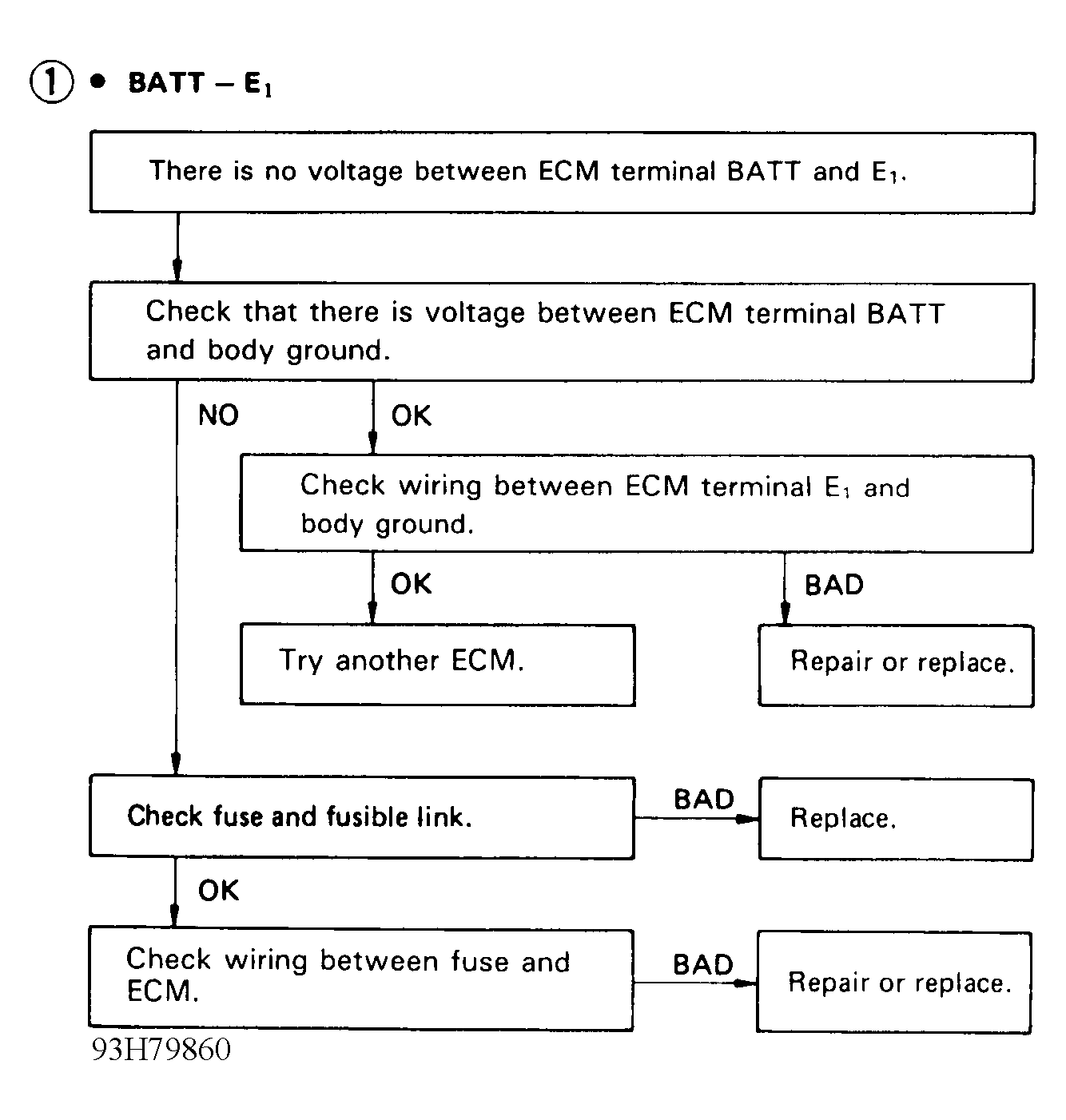

Fig 2: Test No. 1 - Diagnostic Flowchart (1 Of 2)

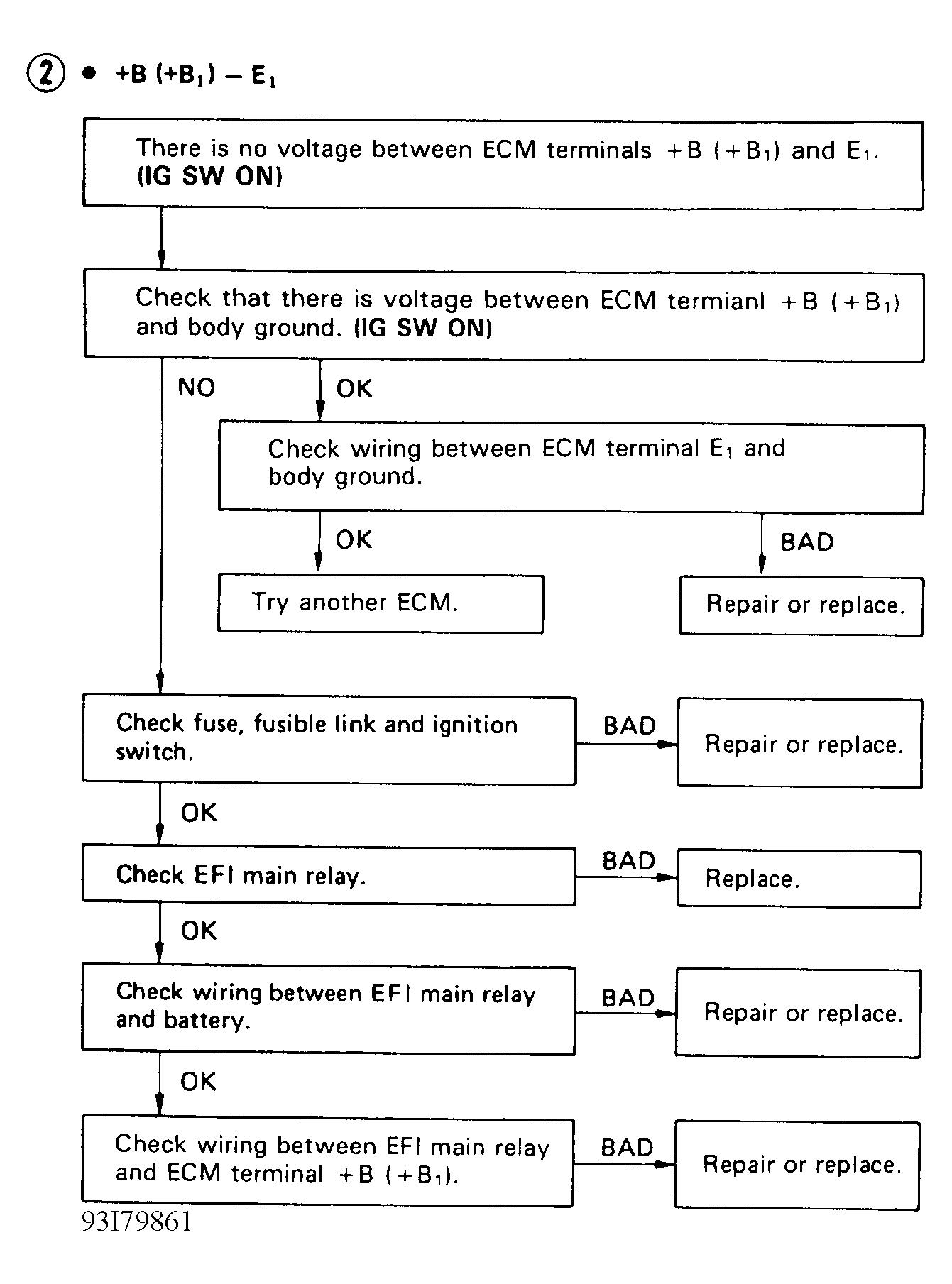

Fig 3: Test No. 1 - Diagnostic Flowchart (2 Of 2)
