Wiring Diagrams: Wiring Diagram

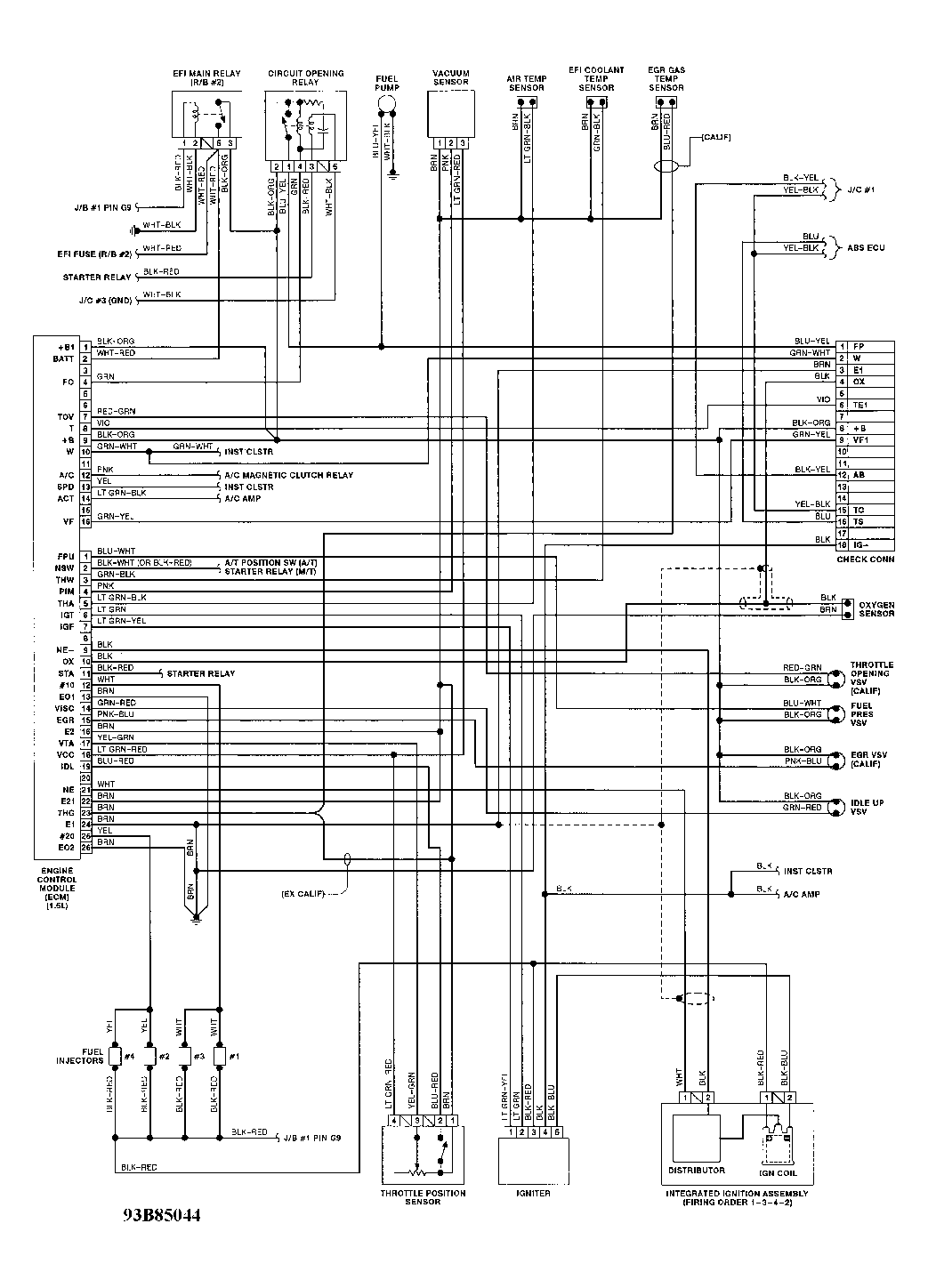

Fig 1: Wiring Diagram (Tercel 1.5L)
G93B85044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
