Crankshaft Position Sensor

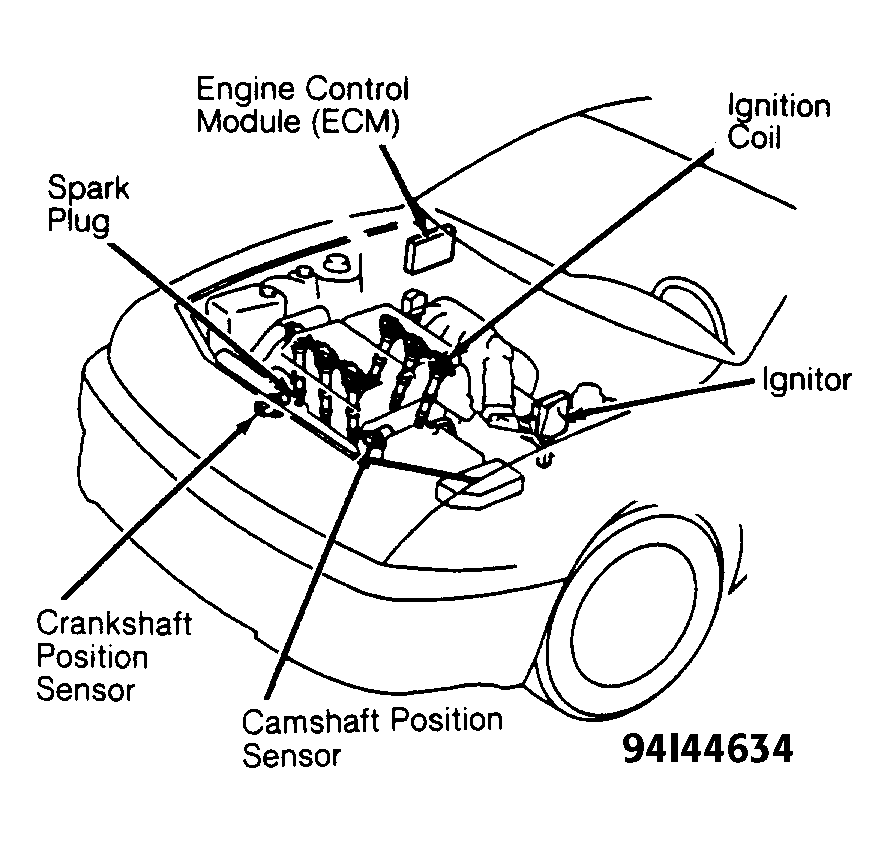

- Disconnect connector from crankshaft position sensor, located near front of crankshaft. See Figure. Using ohmmeter, measure resistance between both electrical terminals of crankshaft position sensor.
- Replace crankshaft position sensor if resistance is not 1630-2740 ohms at 68°F (20°C). Reinstall electrical connector on crankshaft position sensor.
