Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS ECU | Under left side of dash by steering column. |
| A/C Control Unit | Center of the dash, behind ashtray. See Figure. |
| Cruise Control ECU | Behind right kick panel. See Figure. |
| Door Lock ECU | Behind center of dash, behind ashtray. |

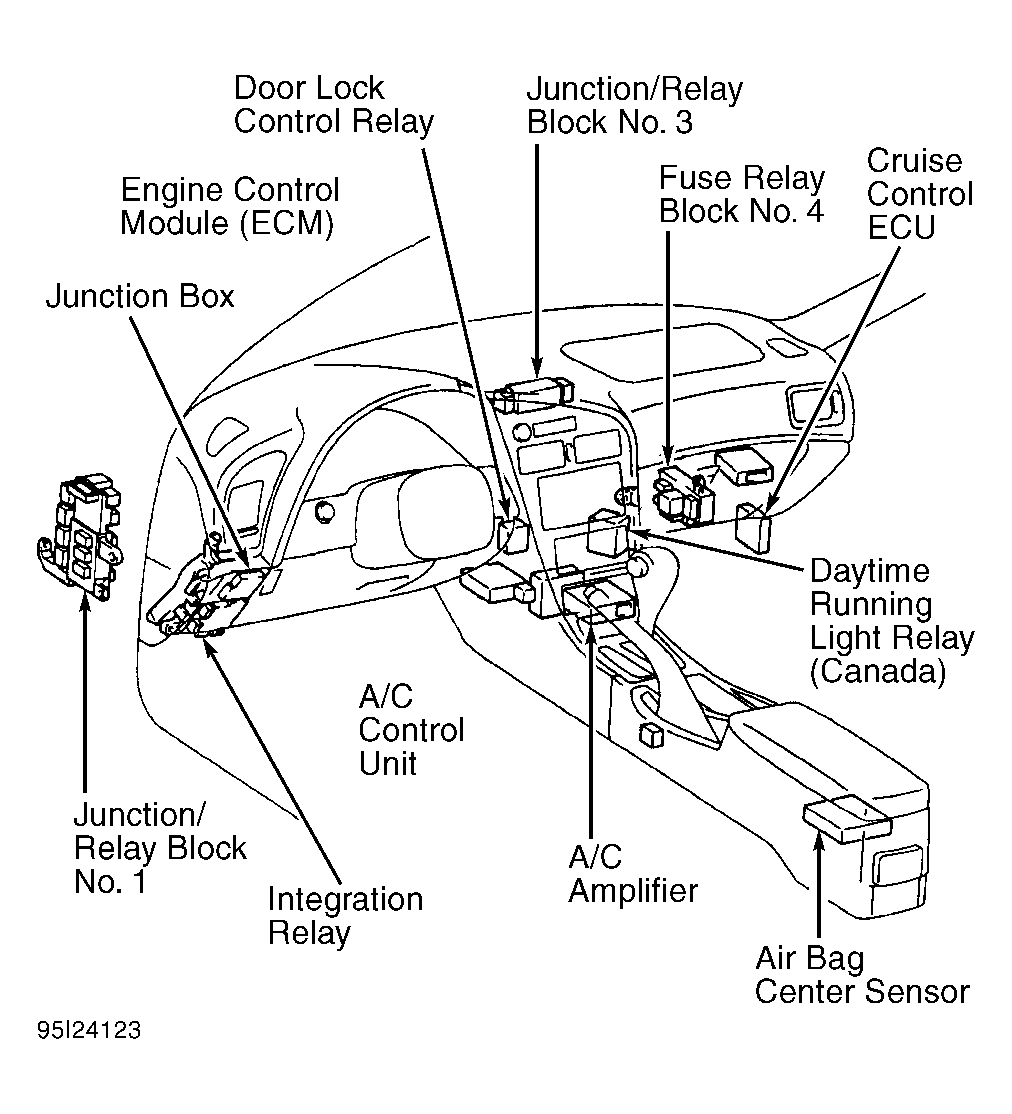

| ECM (Engine Control Module) (Passenger Compartment View) | Behind front of center console. See Figure. |

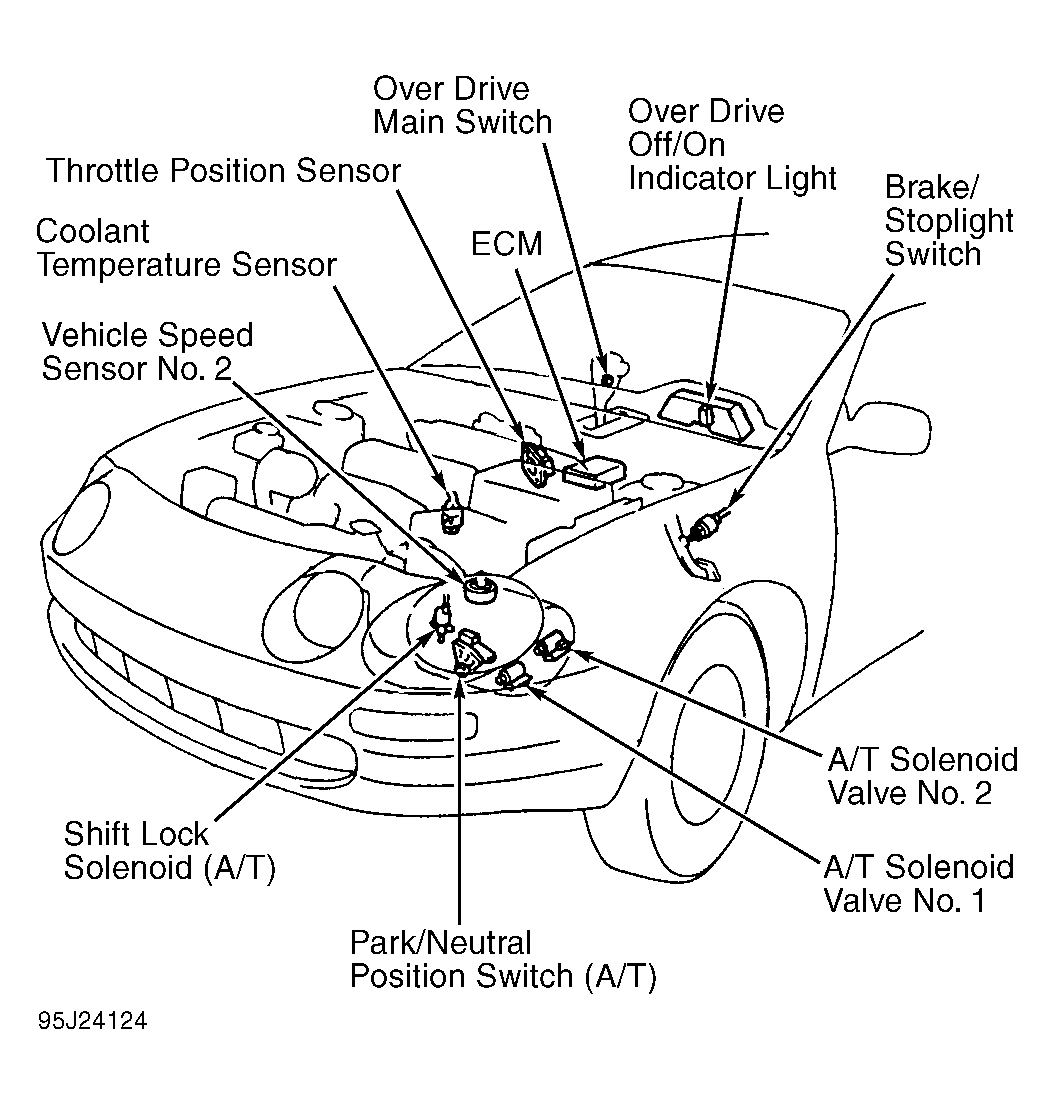

| ECM (Engine Control Module) (Engine Compartment View) | Behind front of center console. See Figure. |

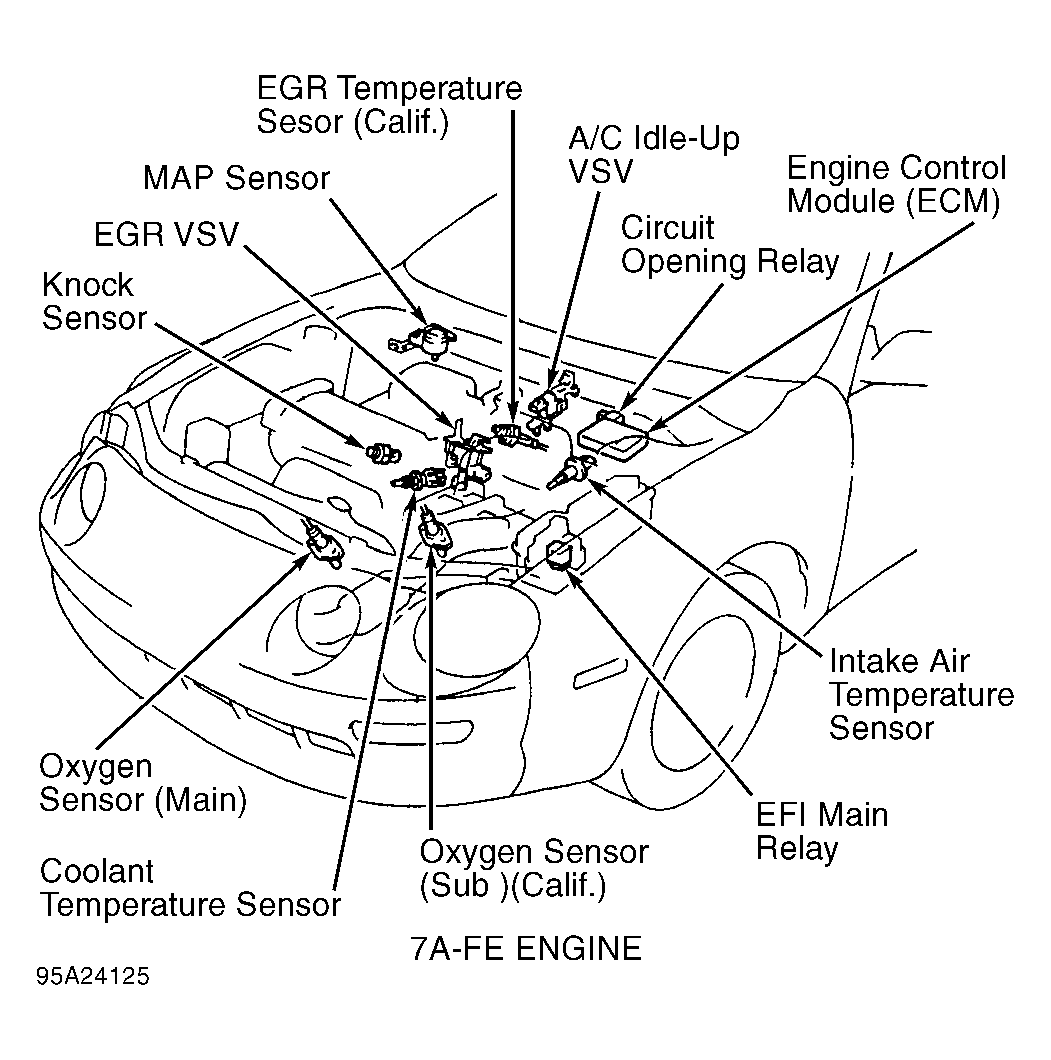

| ECM (Engine Control Module) (1.8L 7A-FE Engine) | Behind front of center console. See Figure. |

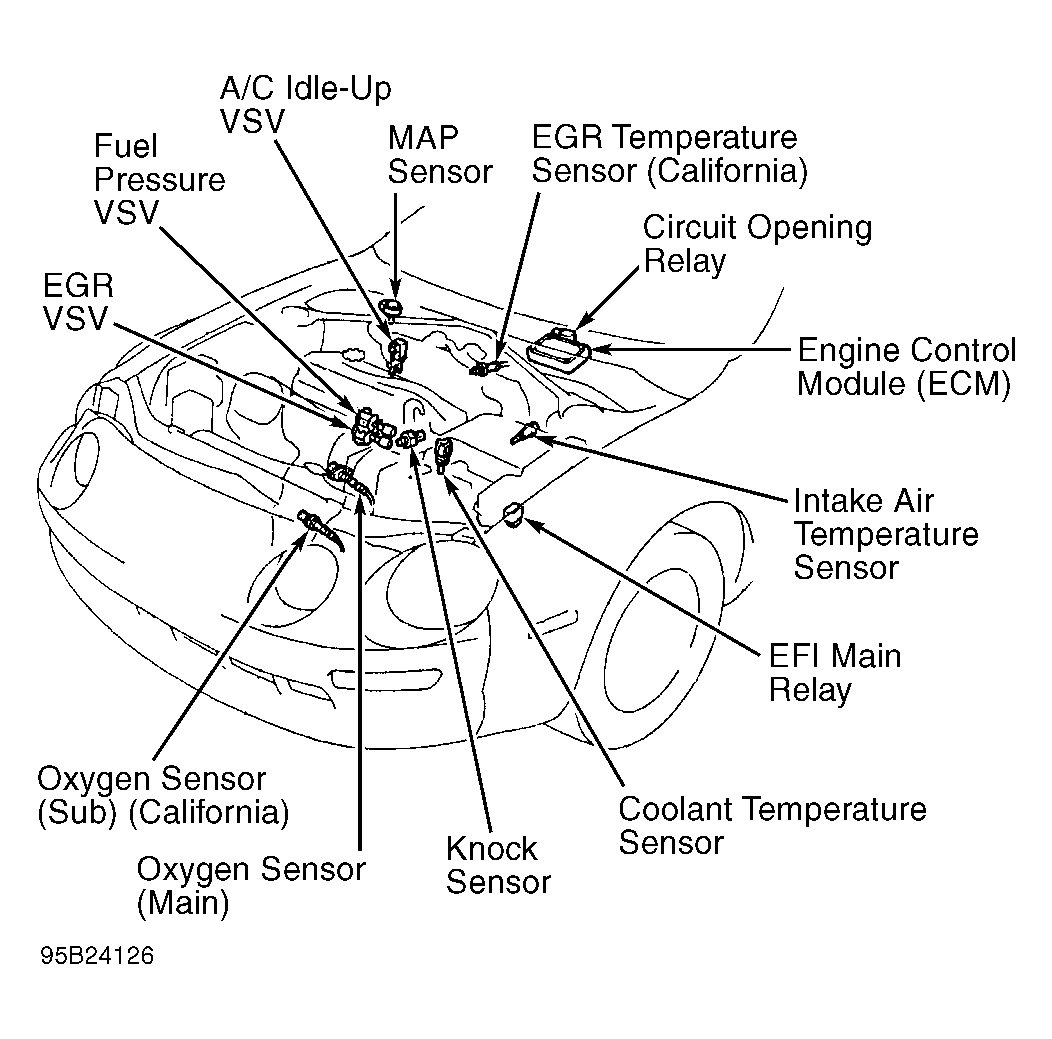

| ECM (Engine Control Module) (2.2L 5S-FE Engine) | Behind front of center console. See Figure. |
| Electronic-Controlled Transmission ECU | Integrated within engine control module. |
