Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

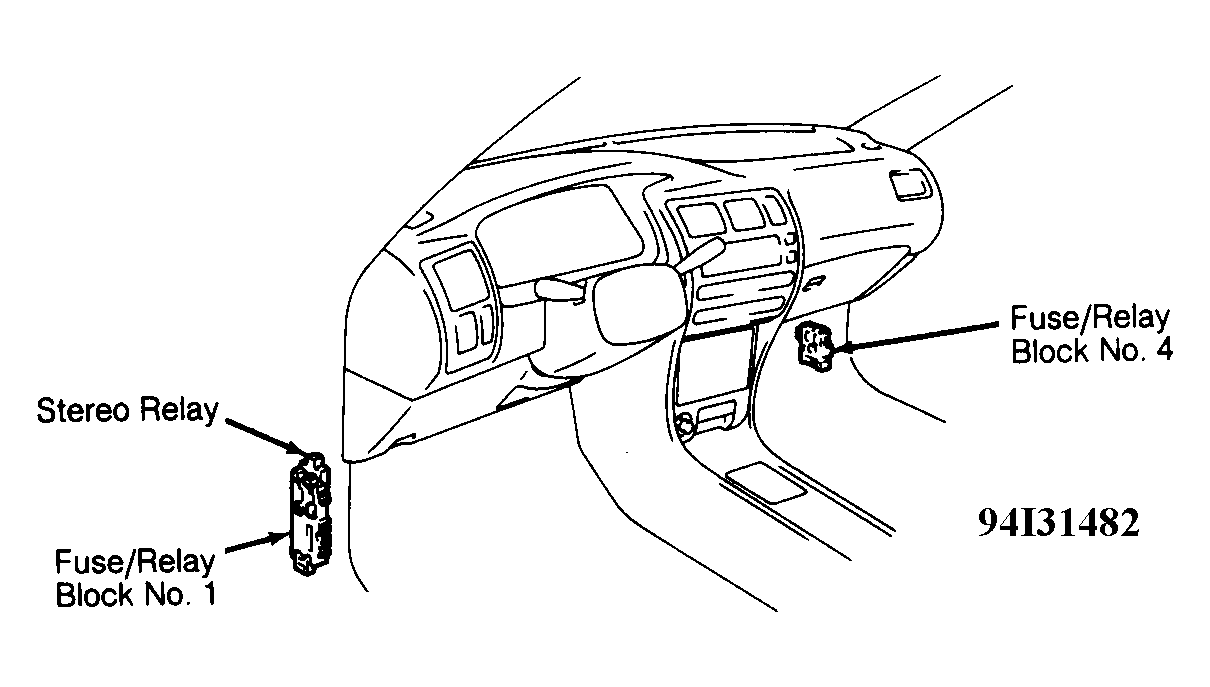

| Fuse/Relay Block No. 1 | Behind left kick panel. See Figure & Figure . |

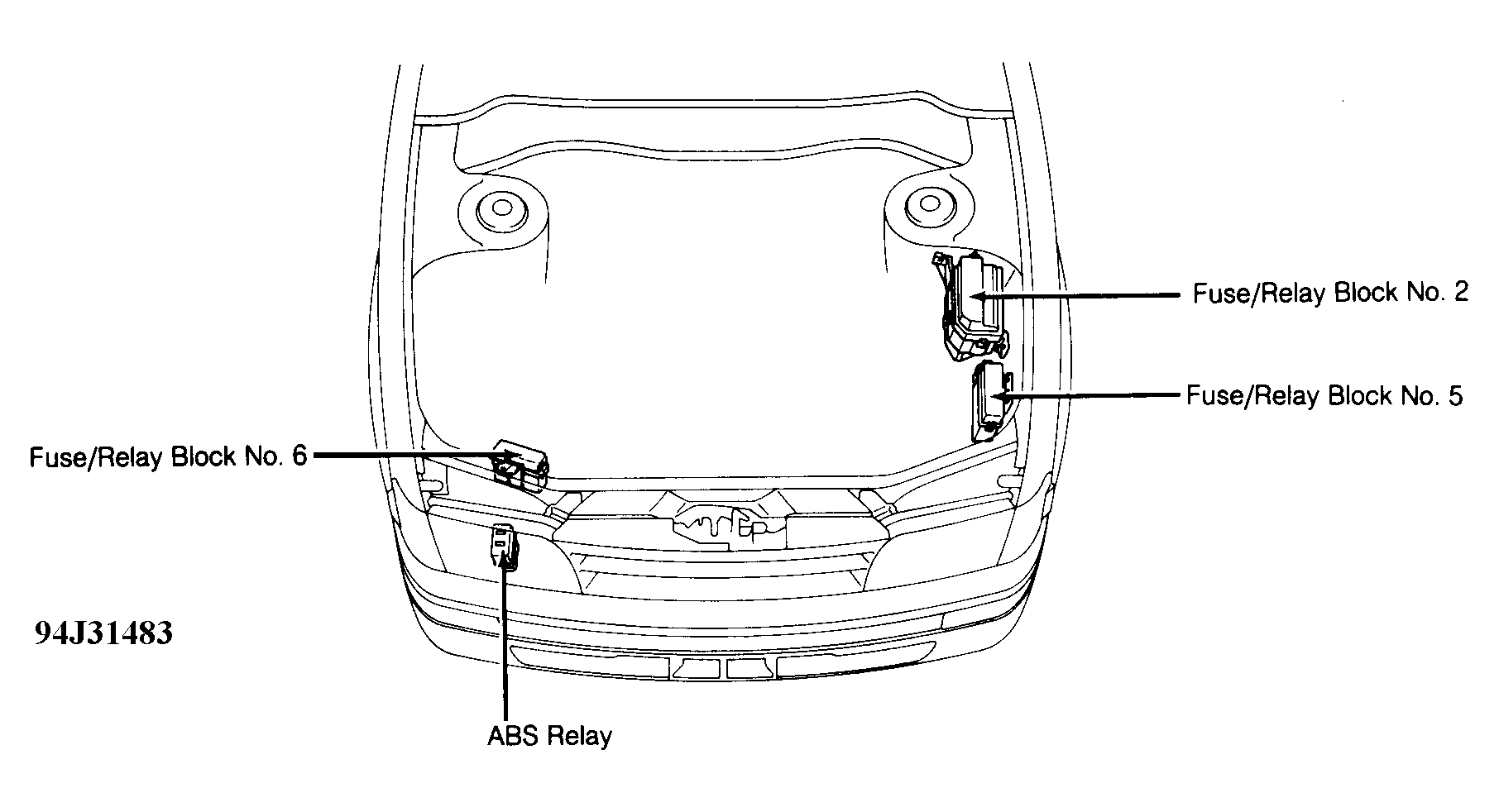

| Fuse/Relay Block No. 2 | On left front inner fender panel, near shock tower. See Figure. |
| Fuse/Relay Block No. 4 | Behind right kick panel. See Figure & Figure . |
| Fuse/Relay Block No. 5 | On left front inner fender panel, ahead of fuse/relay block No. 2. See Figure. |
| Fuse/Relay Block No. 6 | Behind right headlight. See Figure. |
