Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Fuse Block | Under left instrument panel lower trim panel. See Figure. |

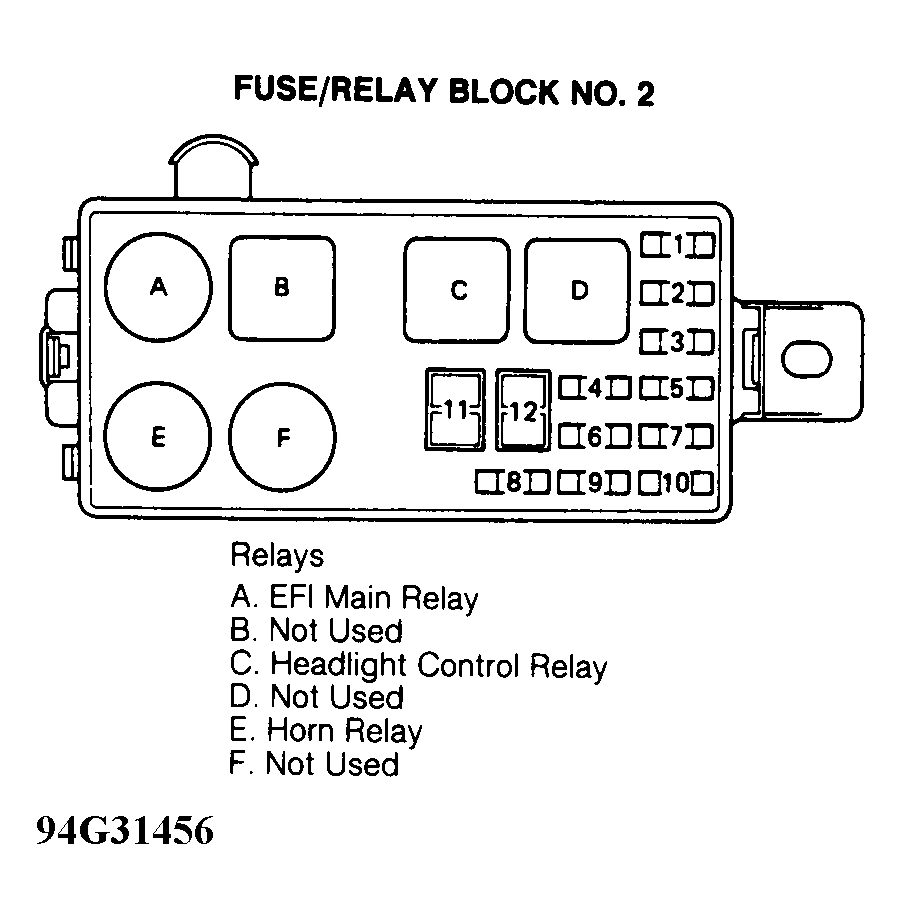

| Fuse/Relay Block No. 2 | On left inner fender panel. See Figure & Figure . |
| Fusible Links | Near battery positive terminal. |

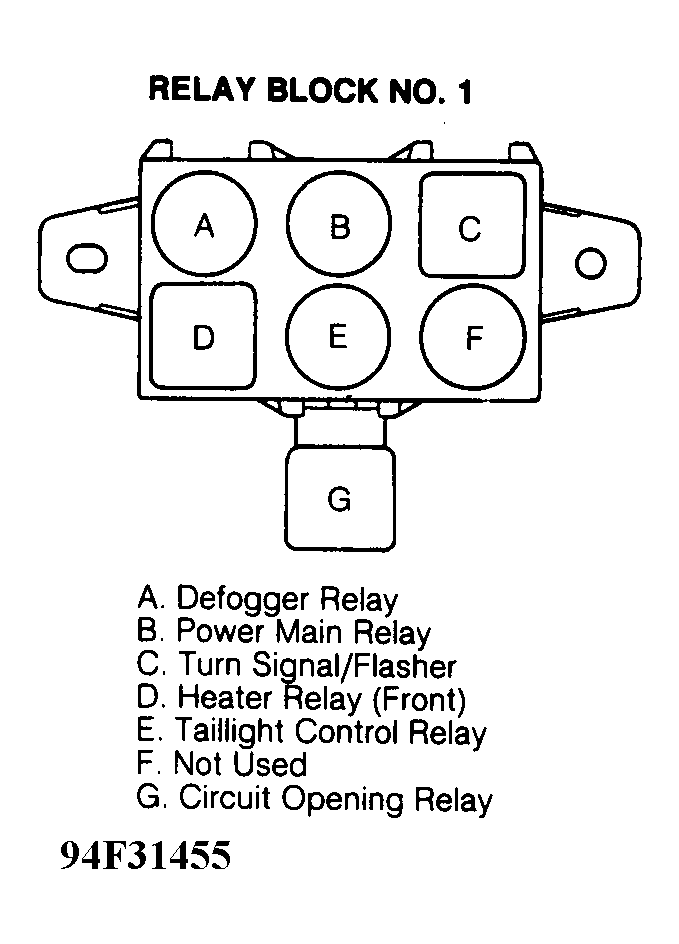

| Relay Block No. 1 | Behind left kick panel. See Figure & Figure . |
