DTC 24 - Intake Air Temperature Sensor Signal
Fig 1: DTC 24 - Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

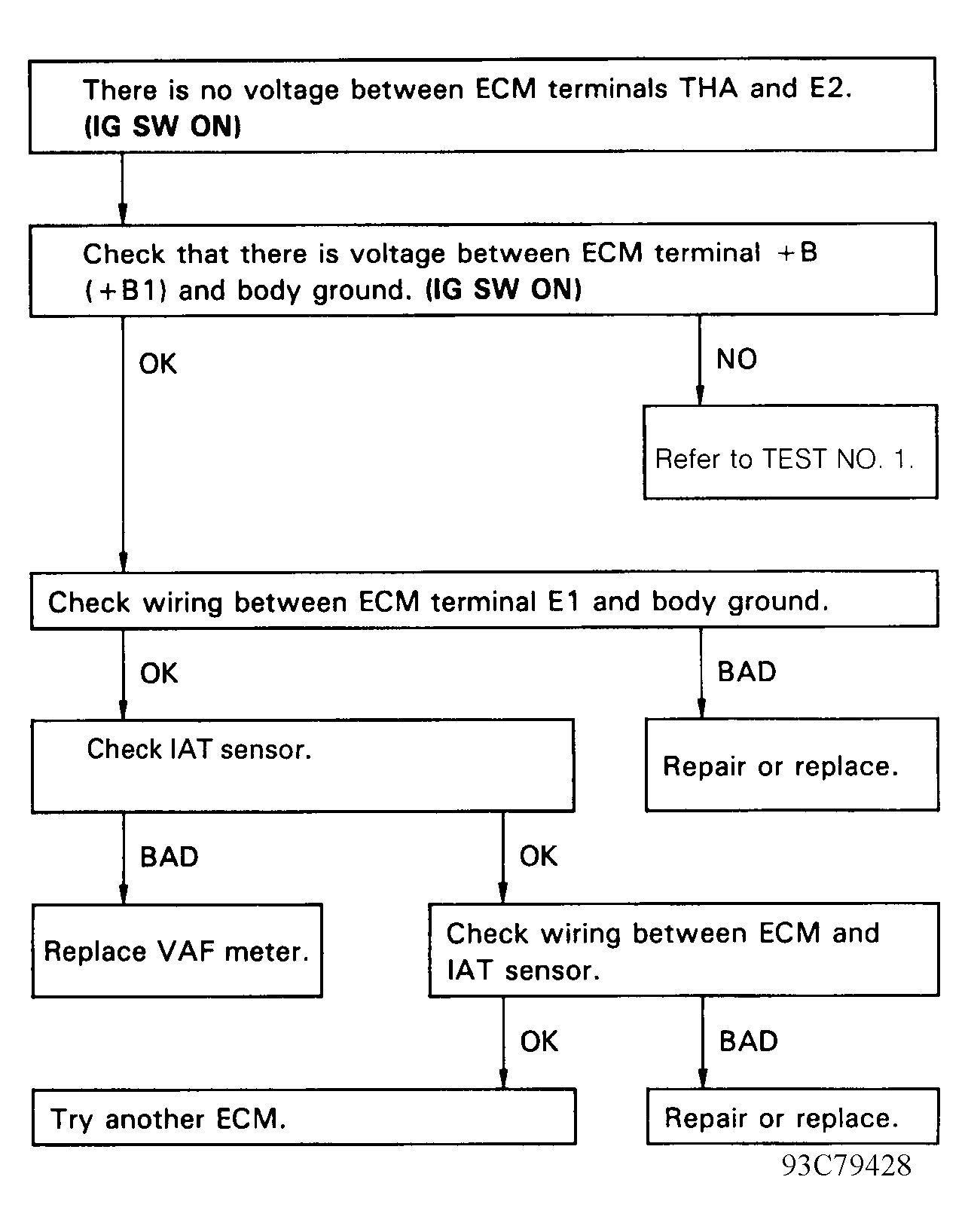

Fig 2: DTC 24 - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
