Test Procedures:

For oxygen sensor or circuit testing, see DTC 21. For injector or circuit testing, see SYSTEM/COMPONENT TESTS article in this section.

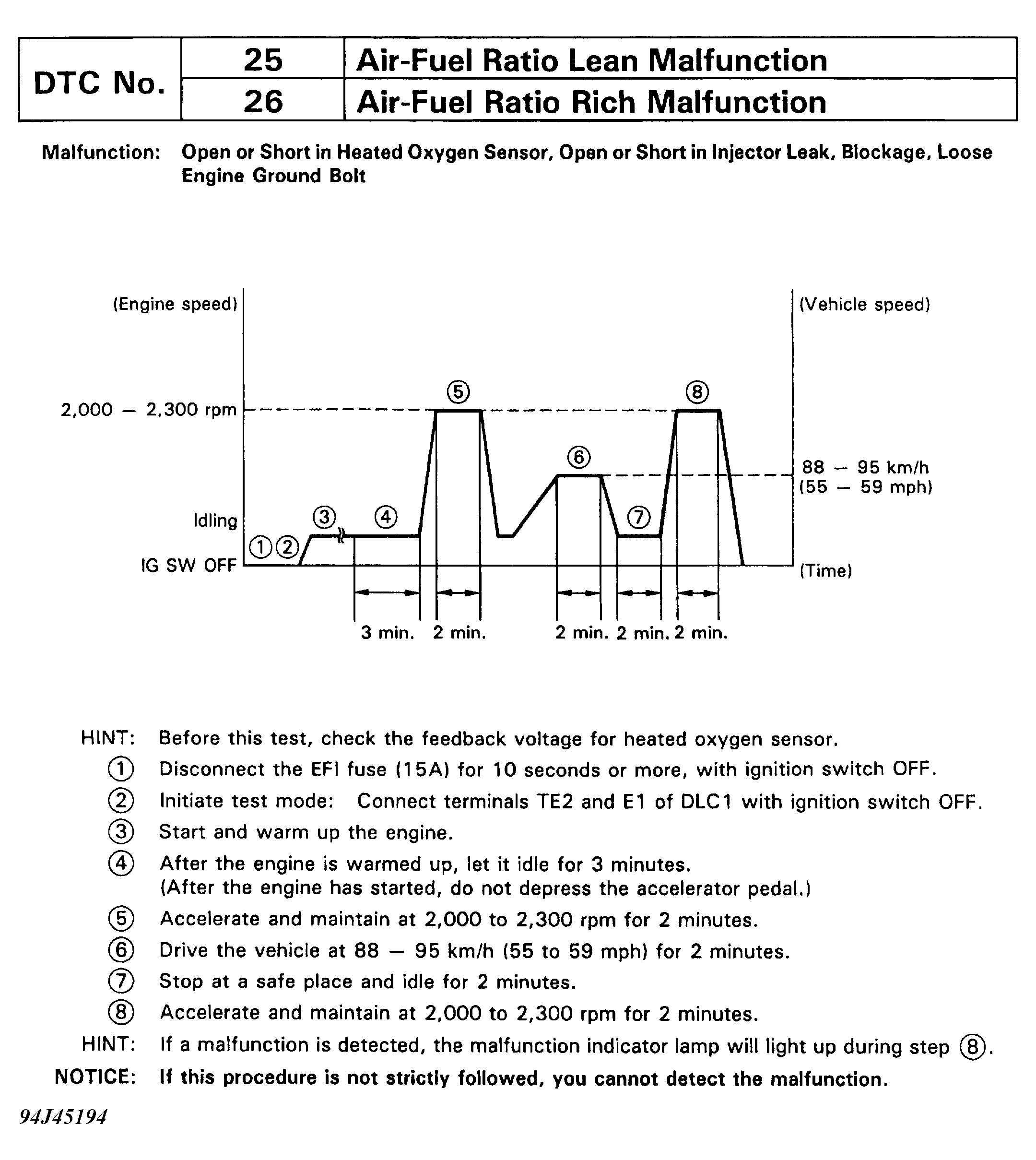

Fig 1: DTC 25 - Driving Detection Pattern (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

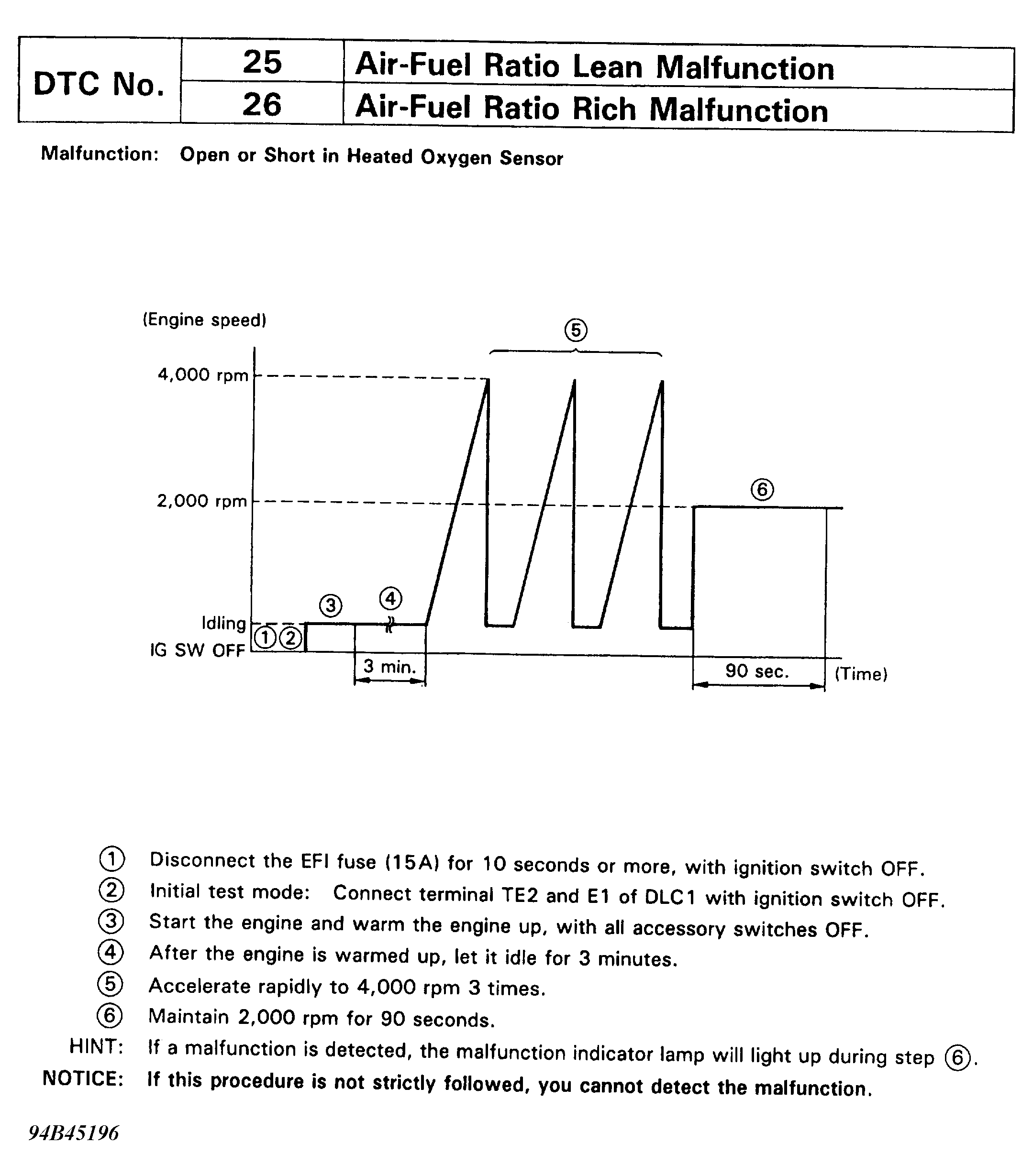

Fig 2: DTC 25 - Driving Detection Pattern (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
