DTC 31, 32 - Airflow Meter Signal Circuit

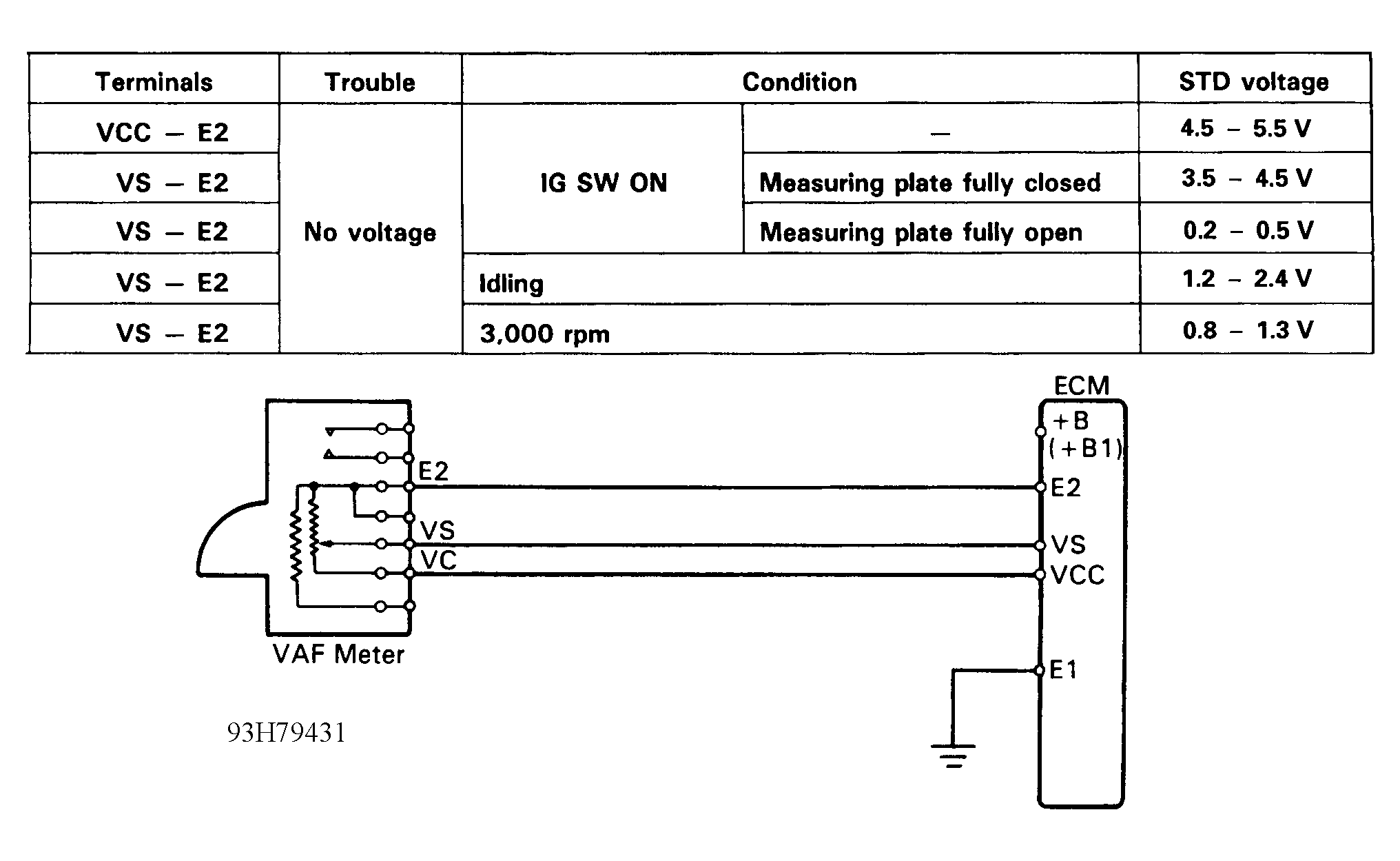

Fig 1: DTC 31, 32 - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

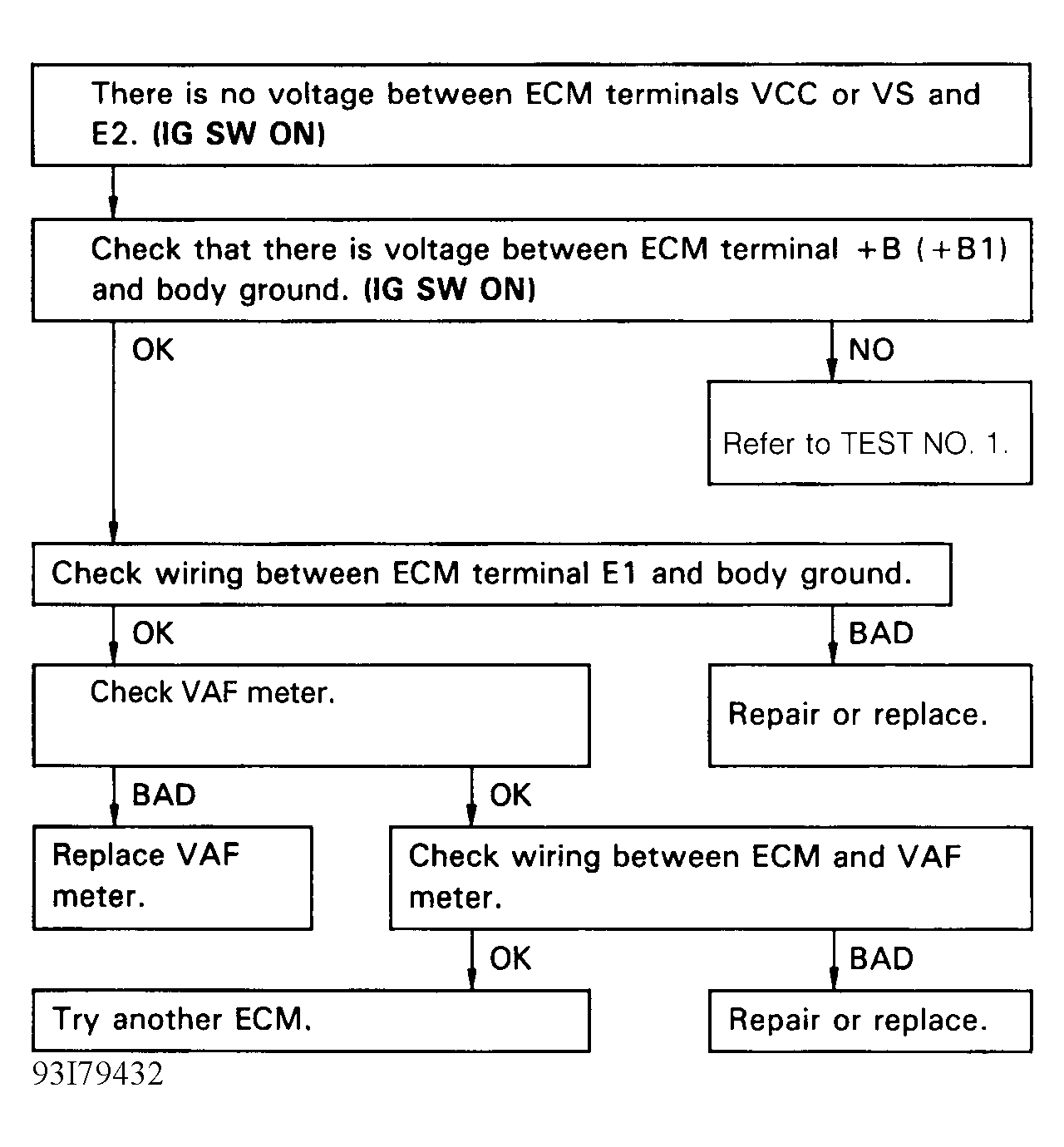

Fig 2: DTC 31, 32 - Diagnostic Flowchart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
