Toyota
›
1994
›
Paseo Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Tests W/Codes
›
Trouble Code Charts
›
ECM (+B) Circuit Check
ECM (+B) Circuit Check

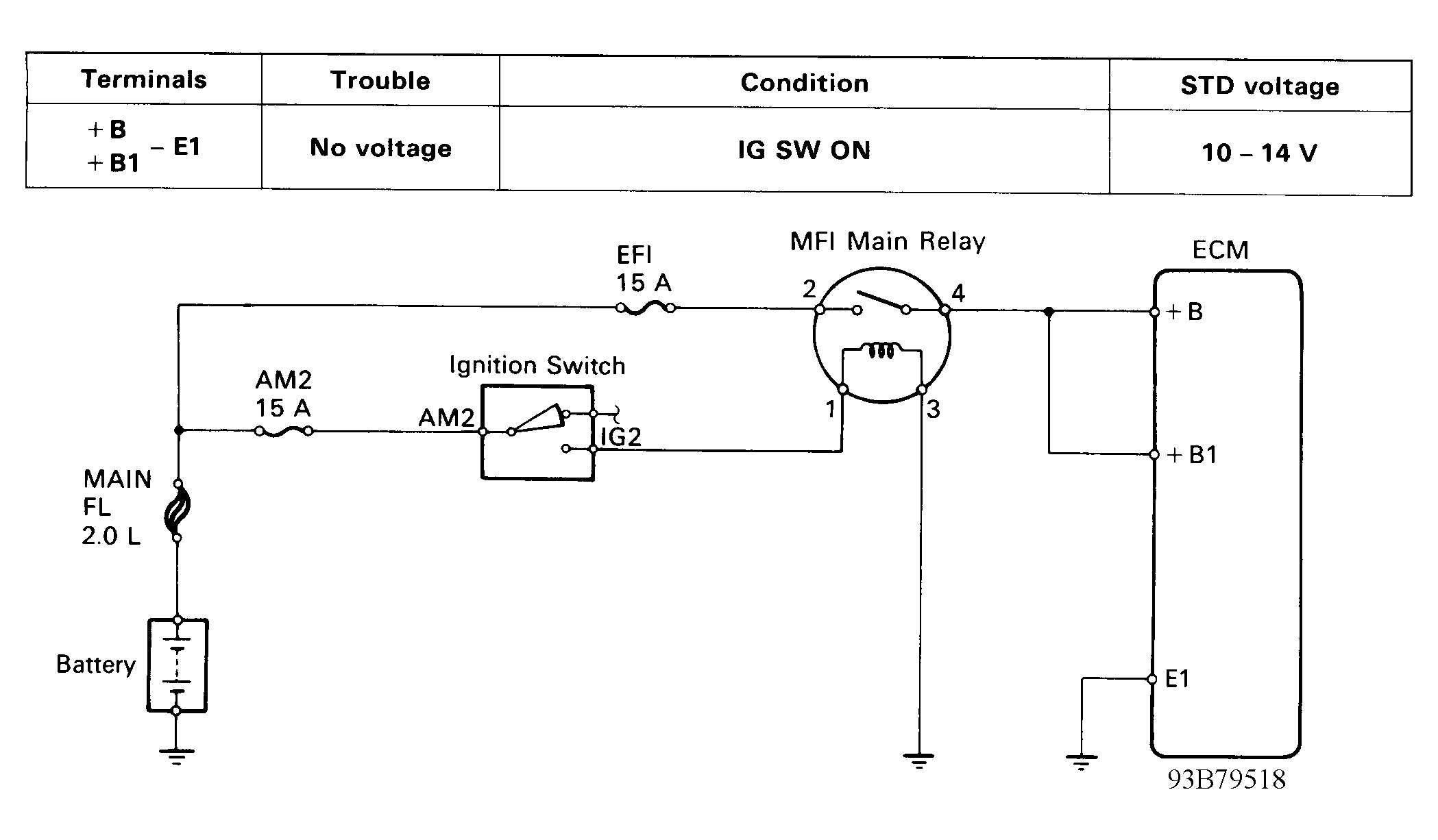

Fig 1: ECM (+B) Circuit Check - Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

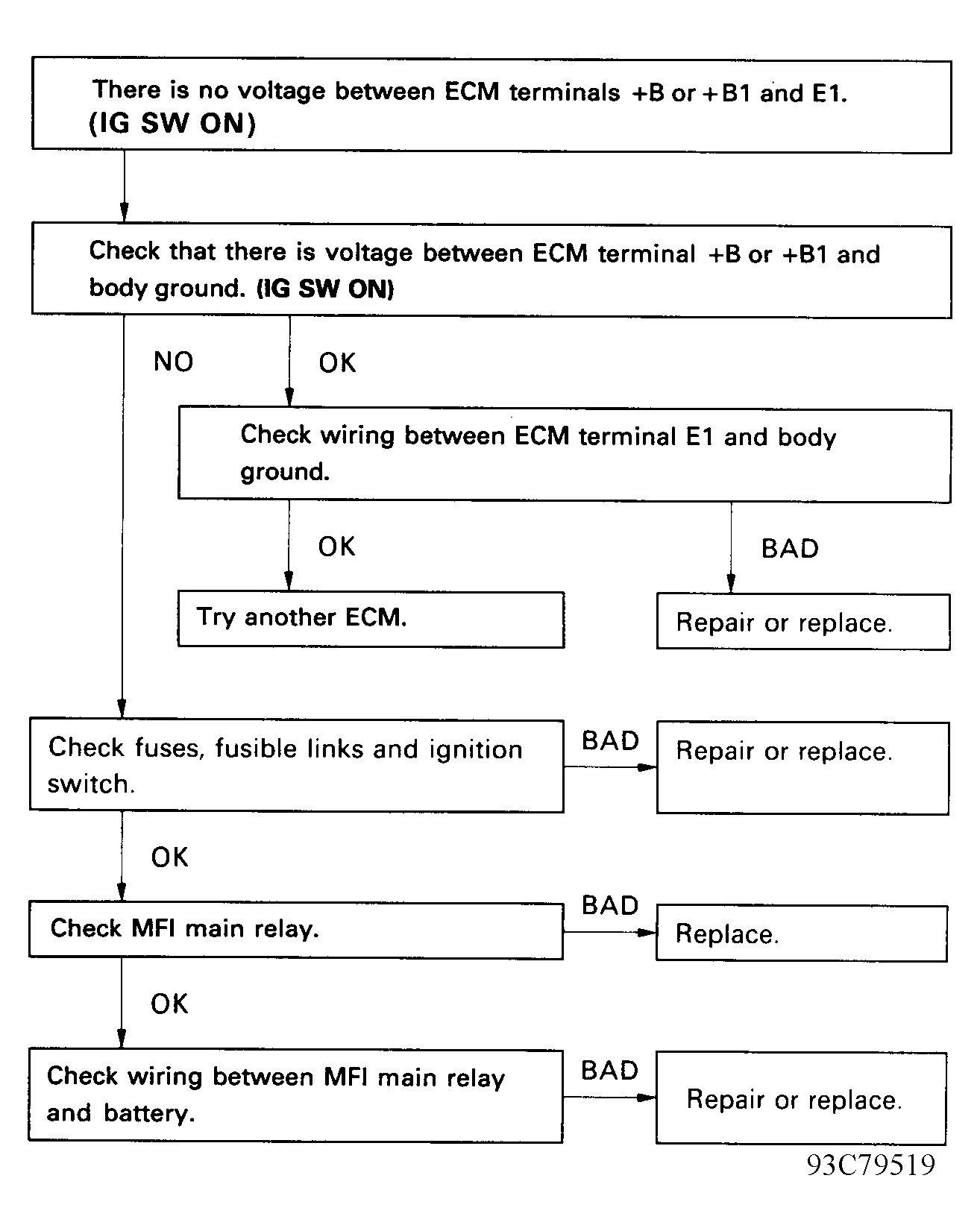

Fig 2: ECM (+B) Circuit Check - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
