DTC 14 - Ignition Signal

NOTE: To check ignition system components, see articles listed below:

SYSTEM/COMPONENT TESTS Pickup
SYSTEM/COMPONENT TESTS 4Runner

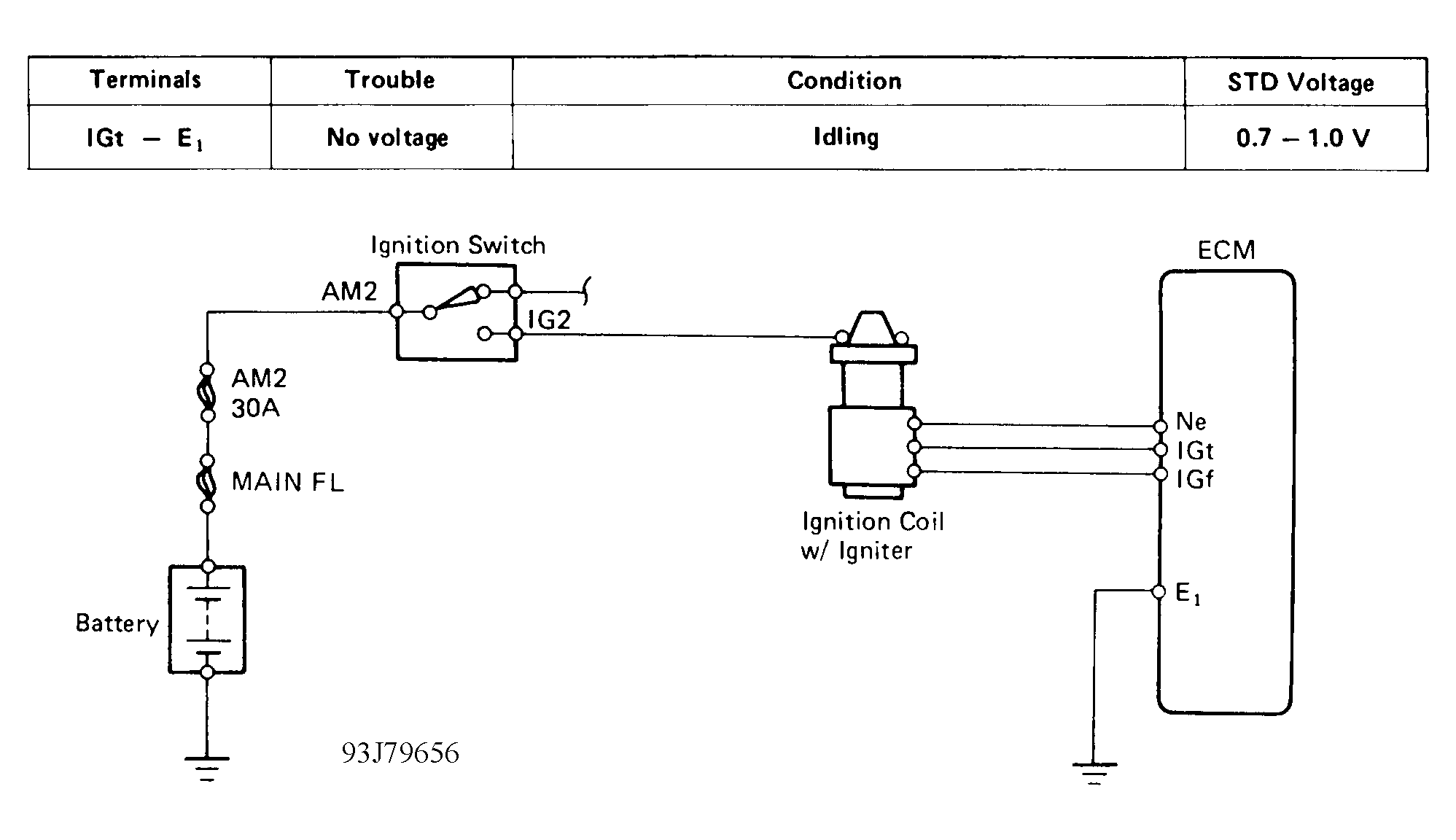

Fig 1: DTC 14 - Schematic

G93J79656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

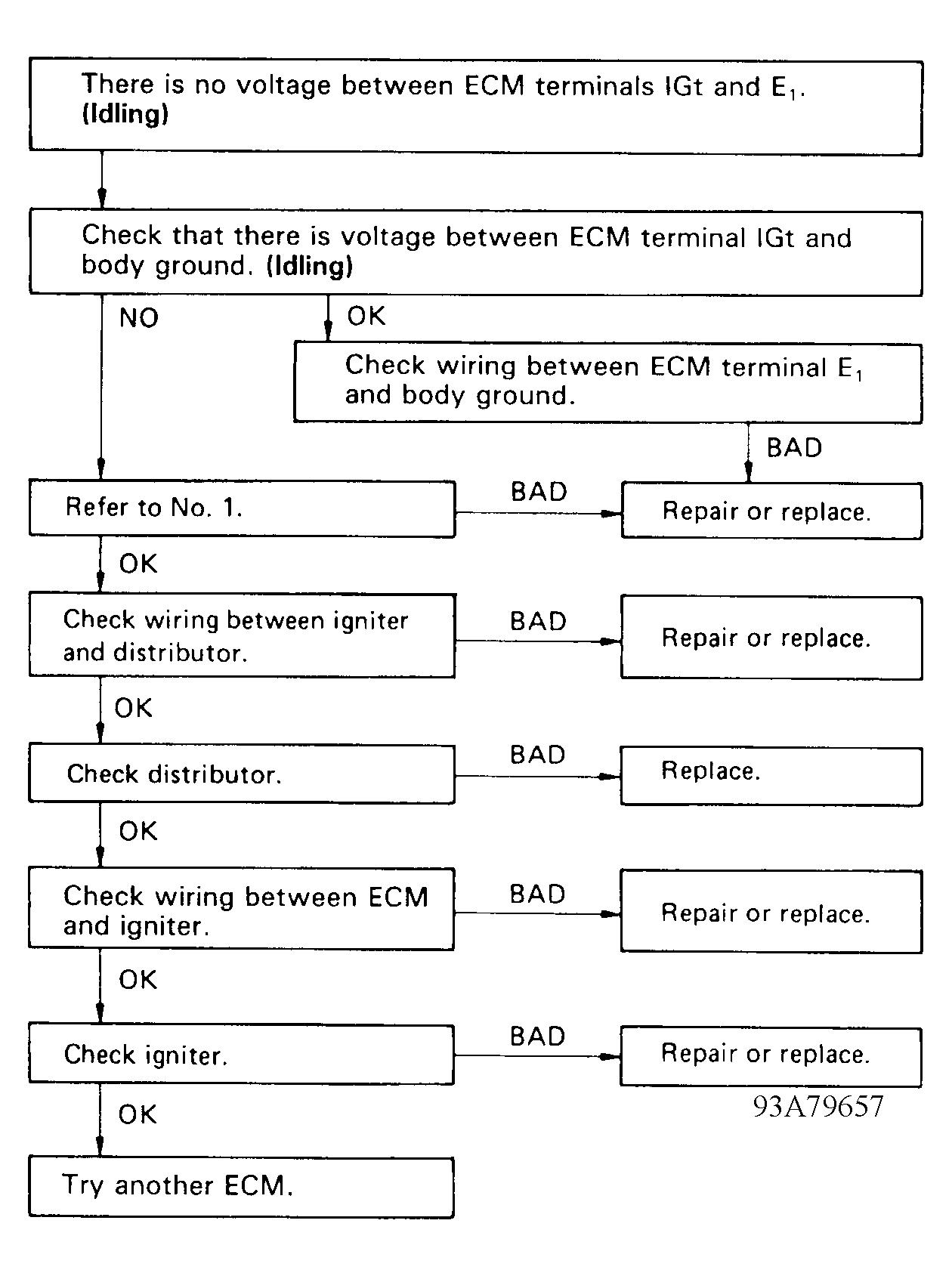

Fig 2: DTC 14 - Diagnostic Flowchart

G93A79657

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
