DTC 22 - Engine Coolant Temperature Sensor Signal

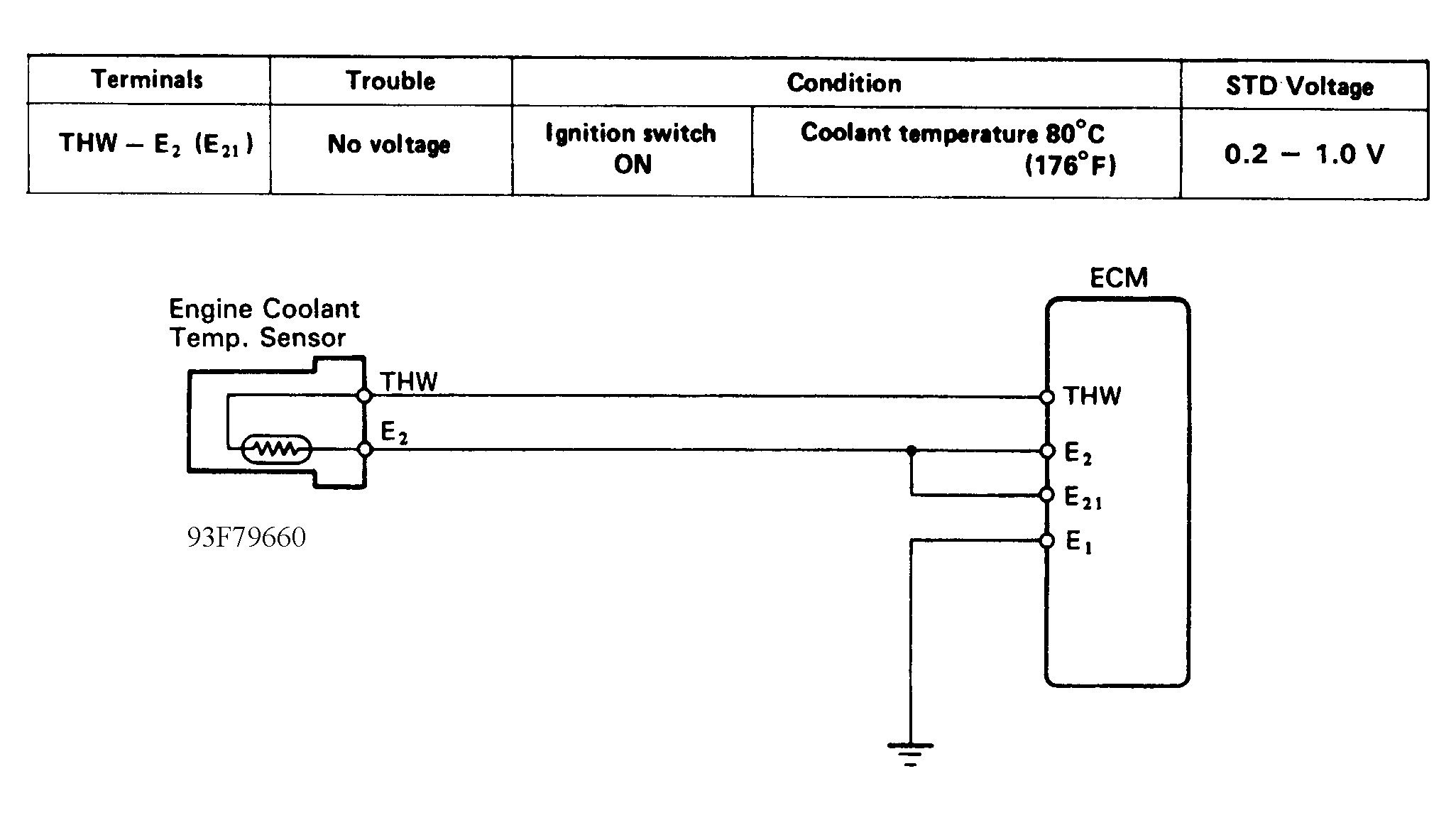

Fig 1: DTC 22 - Schematic
G93F79660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

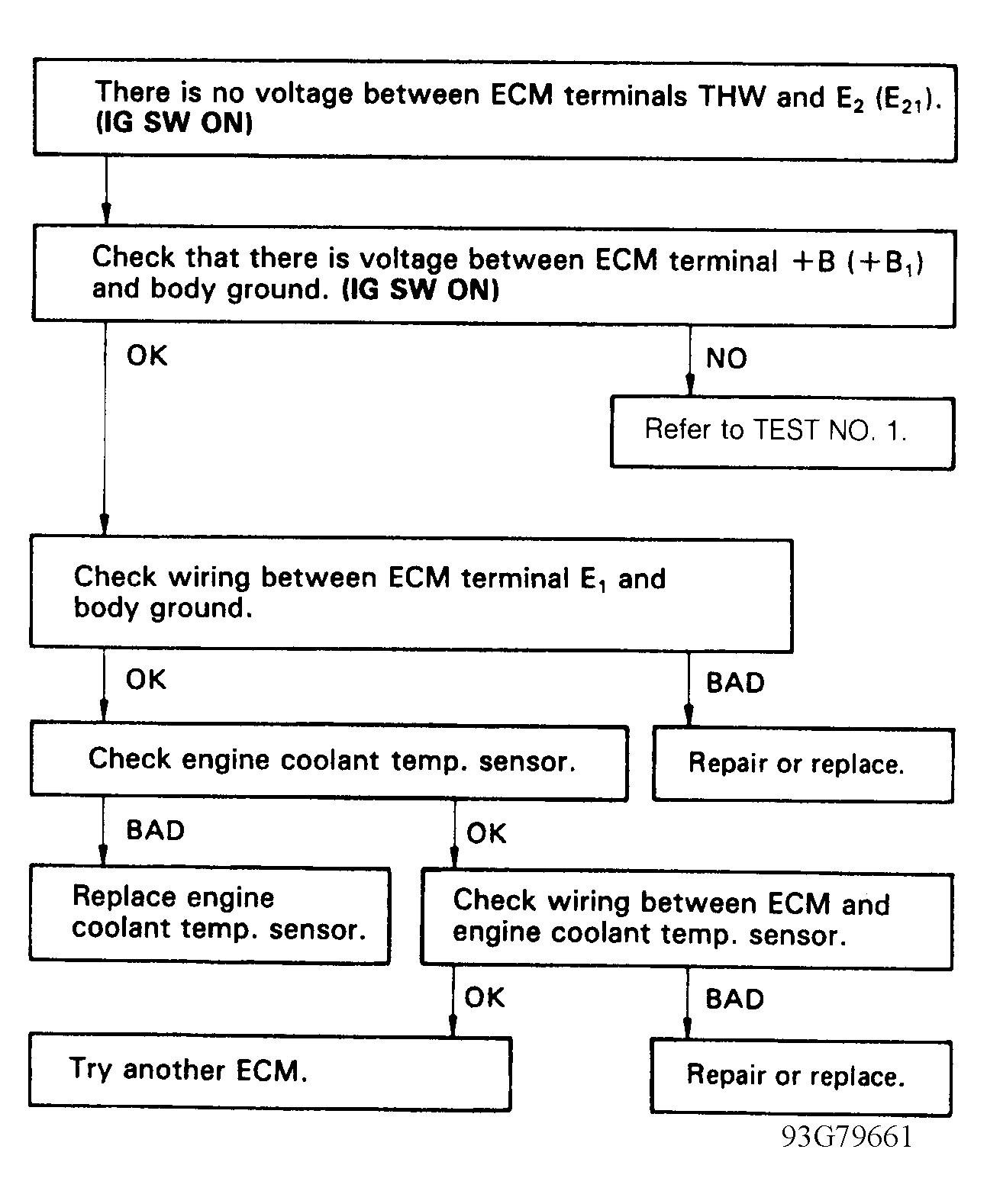

Fig 2: DTC 22 - Diagnostic Flowchart
G93G79661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
