Engine Controls - Tests W/Codes - 4-CYL
›
Trouble Code Charts
›
Diagnostic Circuit Check
Diagnostic Circuit Check

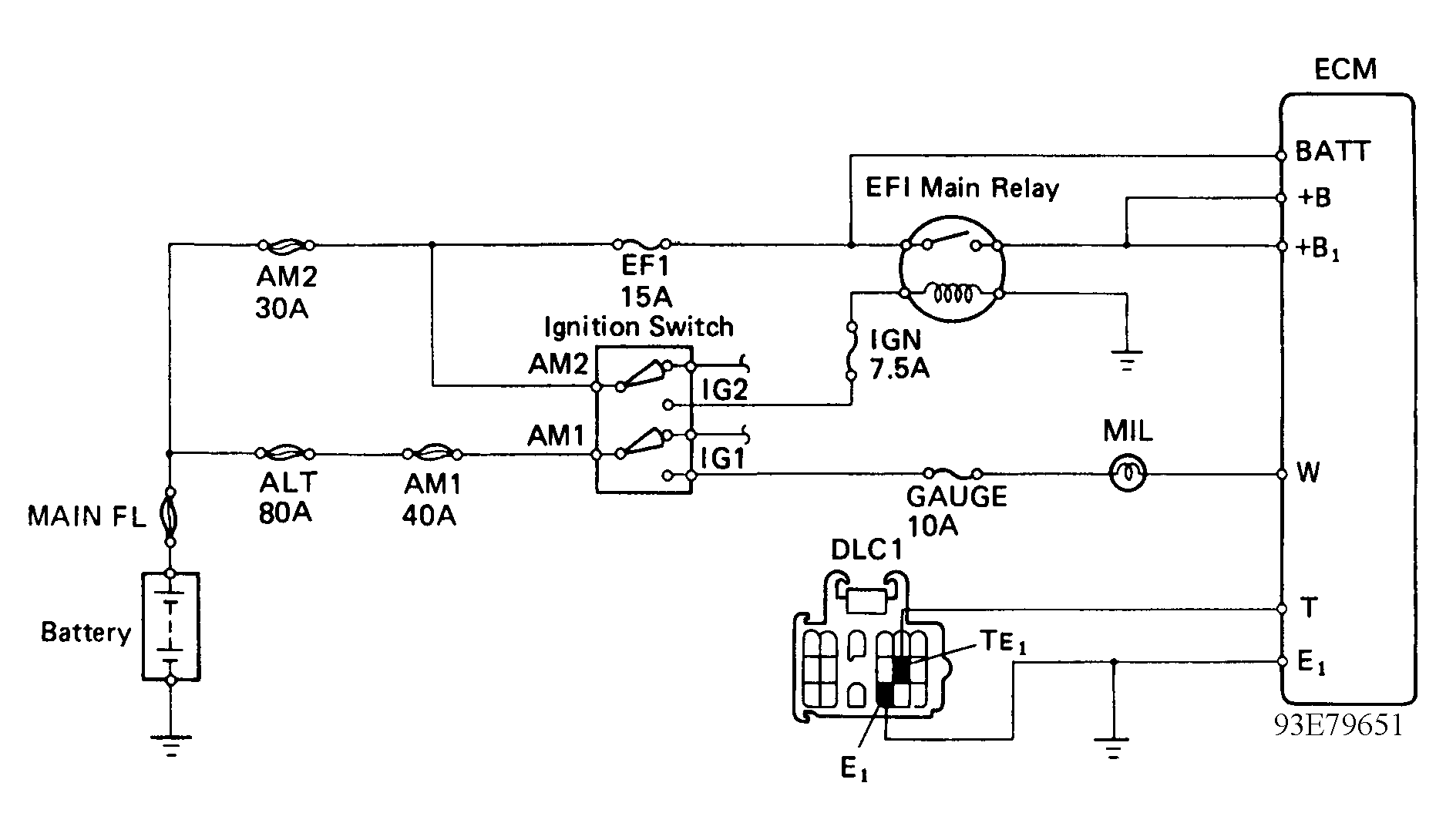

Fig 1: Diagnostic Circuit Check - Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

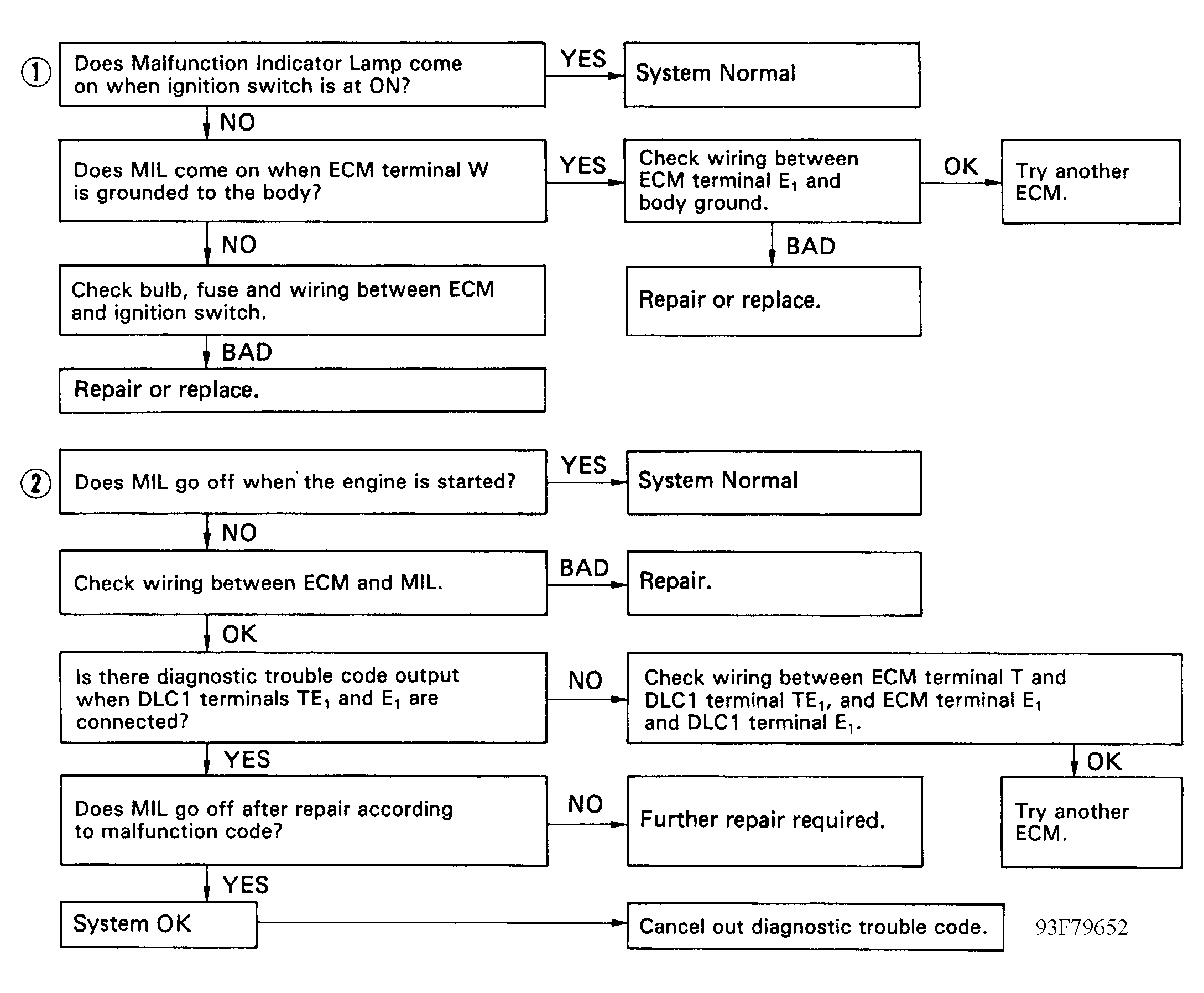

Fig 2: Diagnostic Circuit Check - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
