ECM Terminal Identification

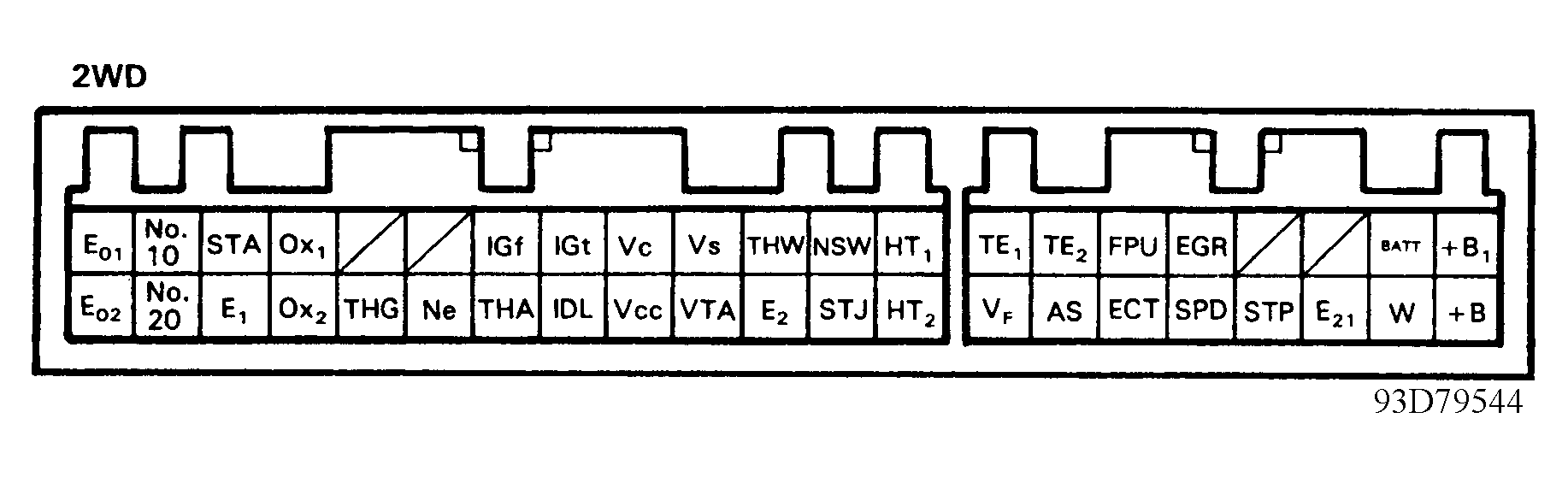

Fig 1: ECM Terminal Identification (Pickup 2WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

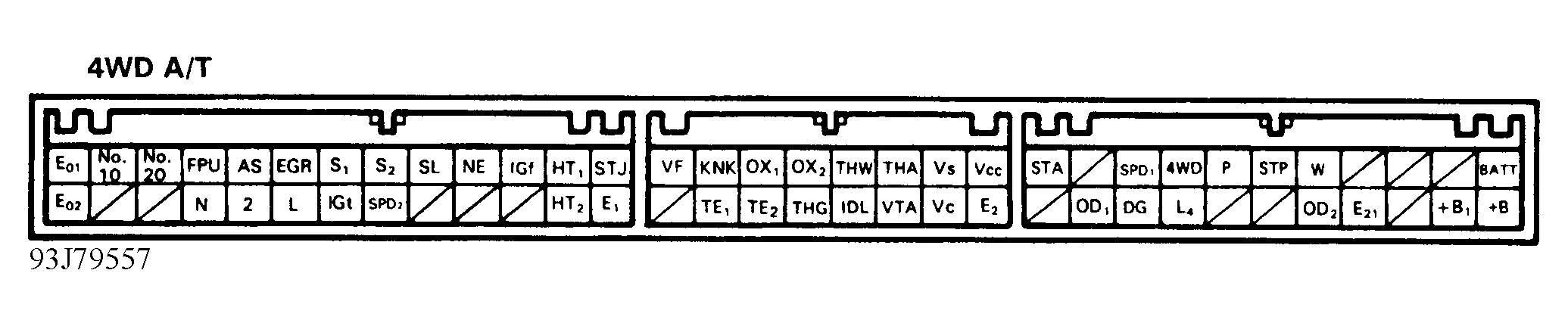

Fig 2: ECM Terminal Identification (Pickup & 4Runner 4WD - A/T)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

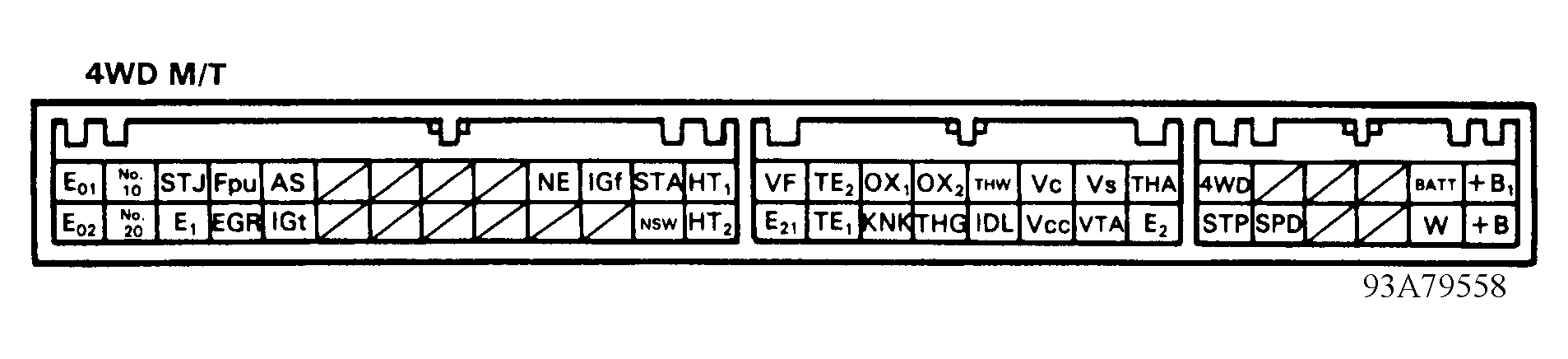

Fig 3: ECM Terminal Identification (Pickup 4WD & 4Runner - M/T)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
