DTC 24: Intake Air Temperature Signal
DTC 24: Intake Air Temperature Signal

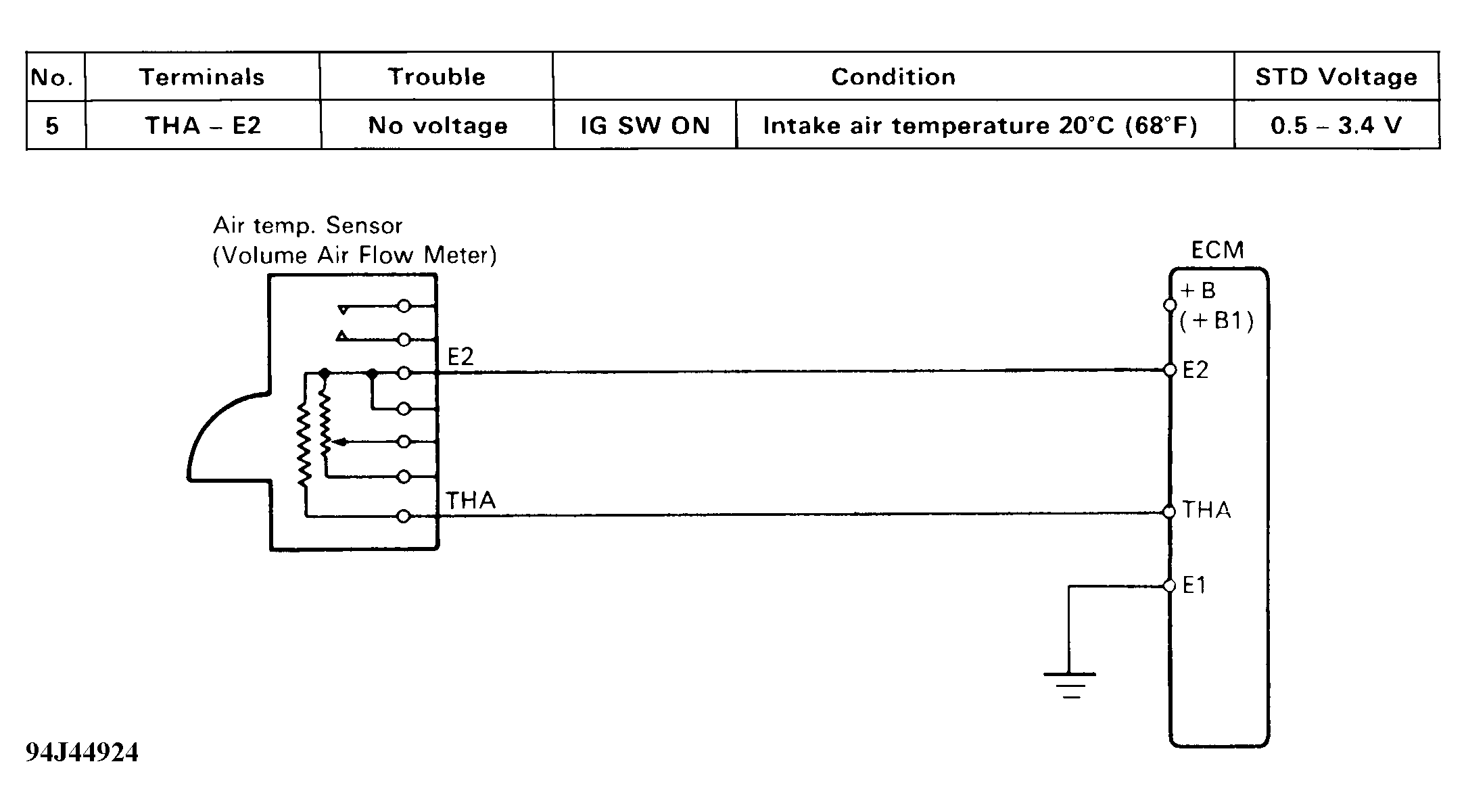

Fig 1: DTC 24 - Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

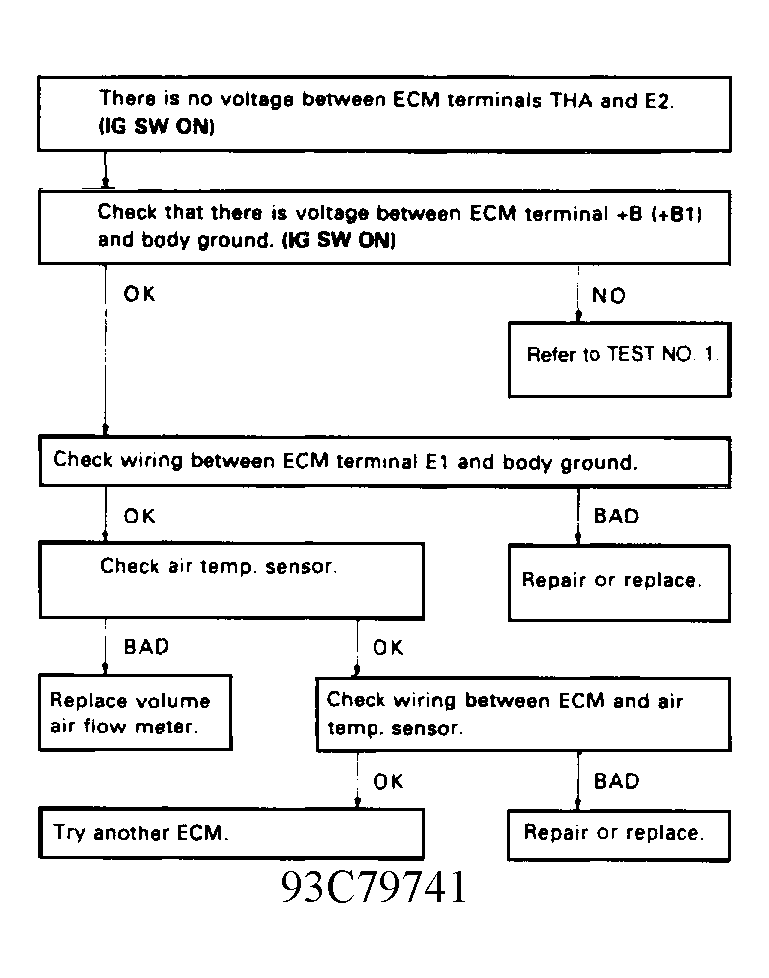

Fig 2: DTC 24 - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
