DTC 51: Switch Condition Signal: Procedures

To check throttle position sensor or circuit, see DTC 41. To check A/C switch signal, see following illustrations.

Fig 1: DTC 51 - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

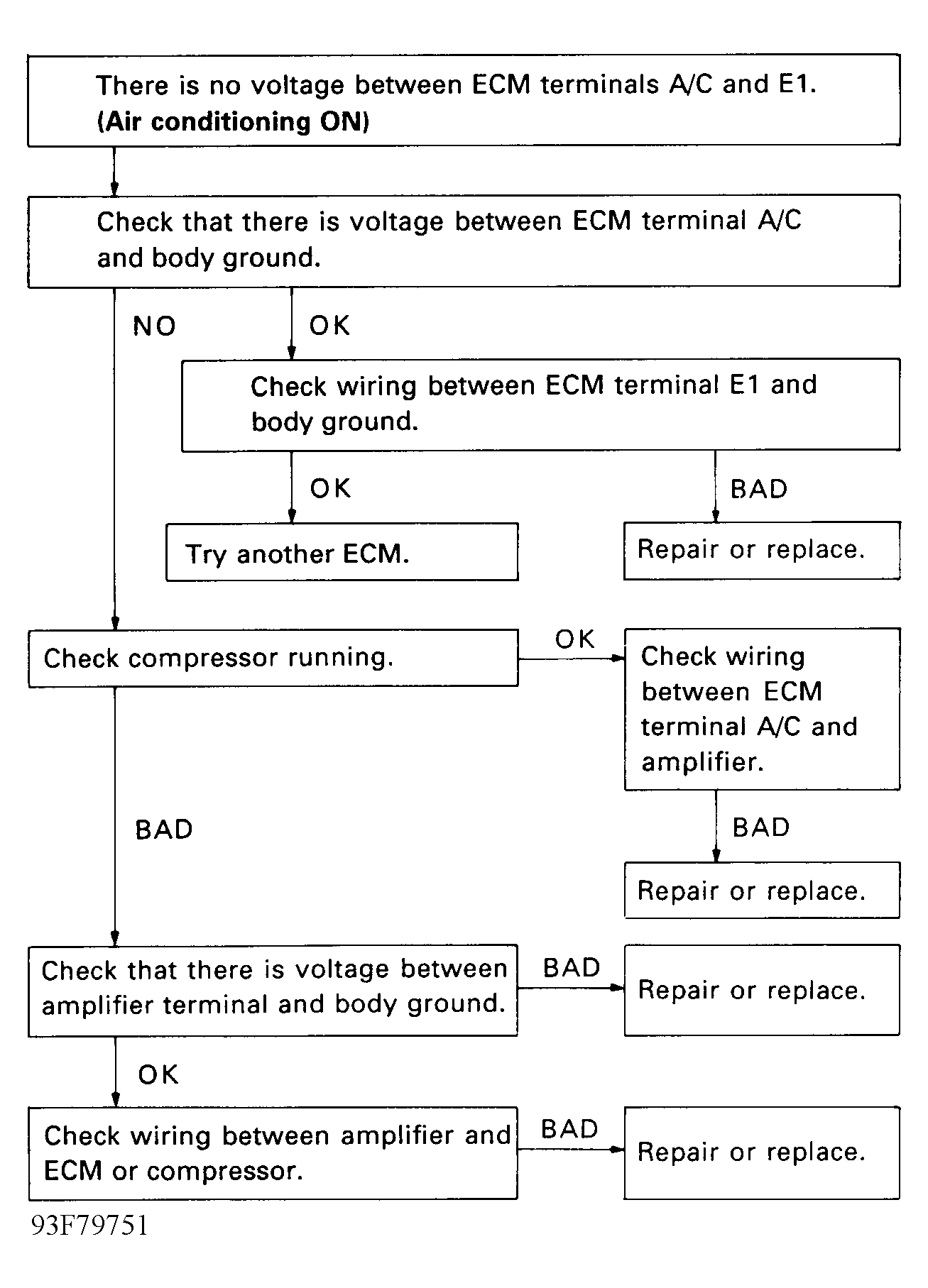

Fig 2: DTC 51 - Diagnostic Flowchart
