Engine Controls - Tests W/Codes - Supercharged
›
Trouble Code Charts
›
DTC P0121 - Throttle Position Sensor Circuit Range/Performance Problem
DTC P0121 - Throttle Position Sensor Circuit Range/Performance Problem

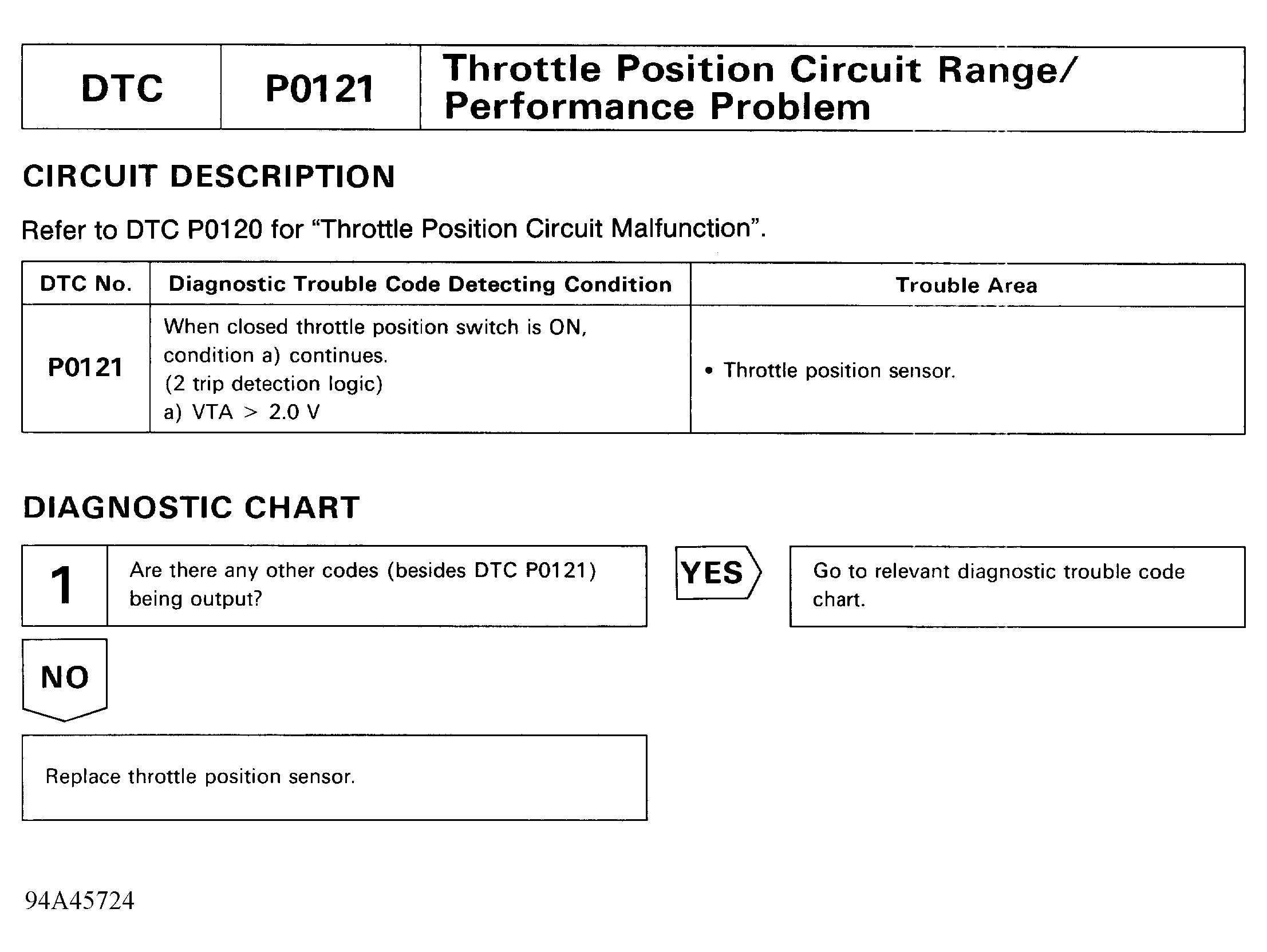

Fig 1: DTC P0121 - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
