DTC 12 - Rpm Signal
DTC 12 - Rpm Signal

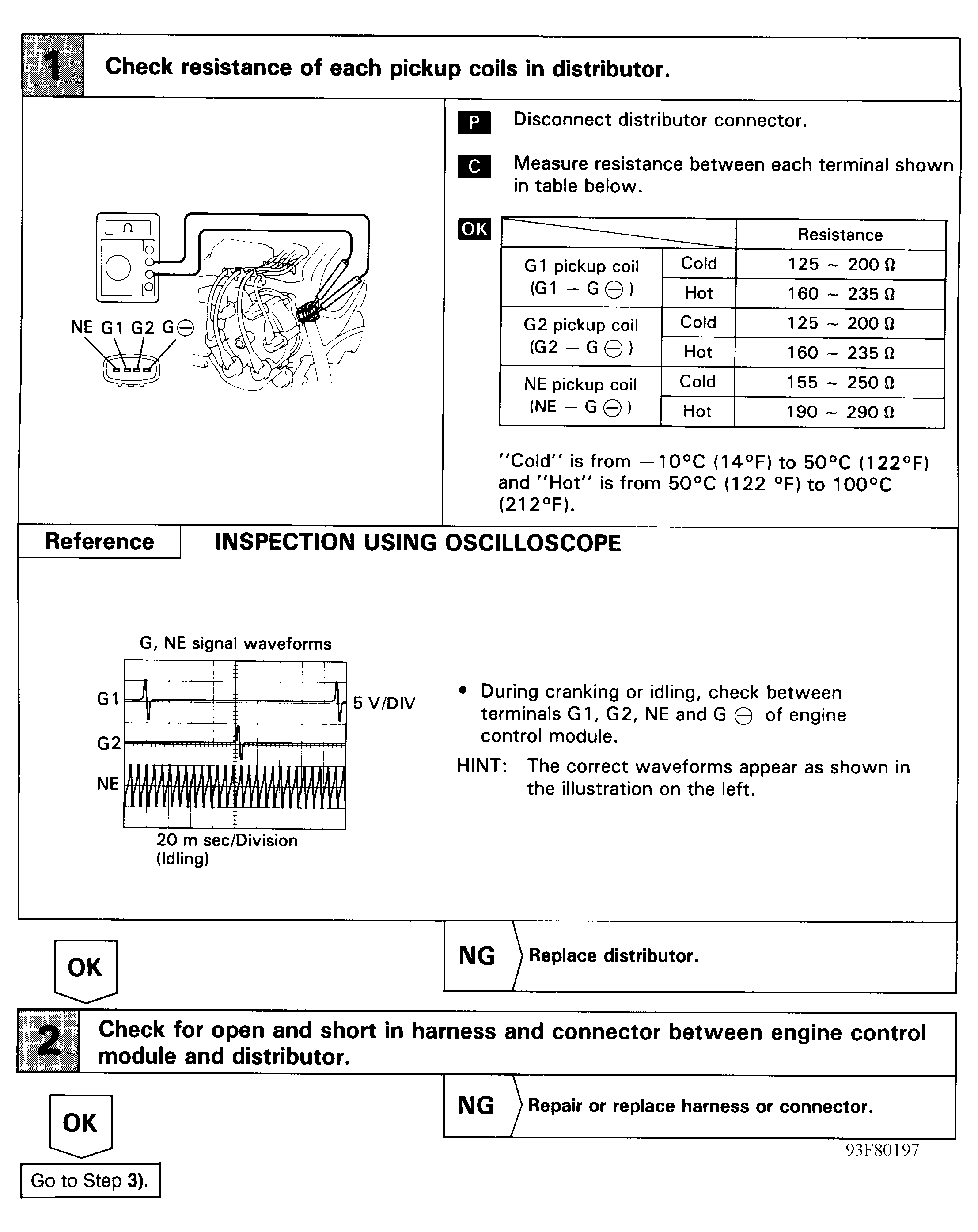

Fig 1: DTC 12 - Diagnostic Flowchart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

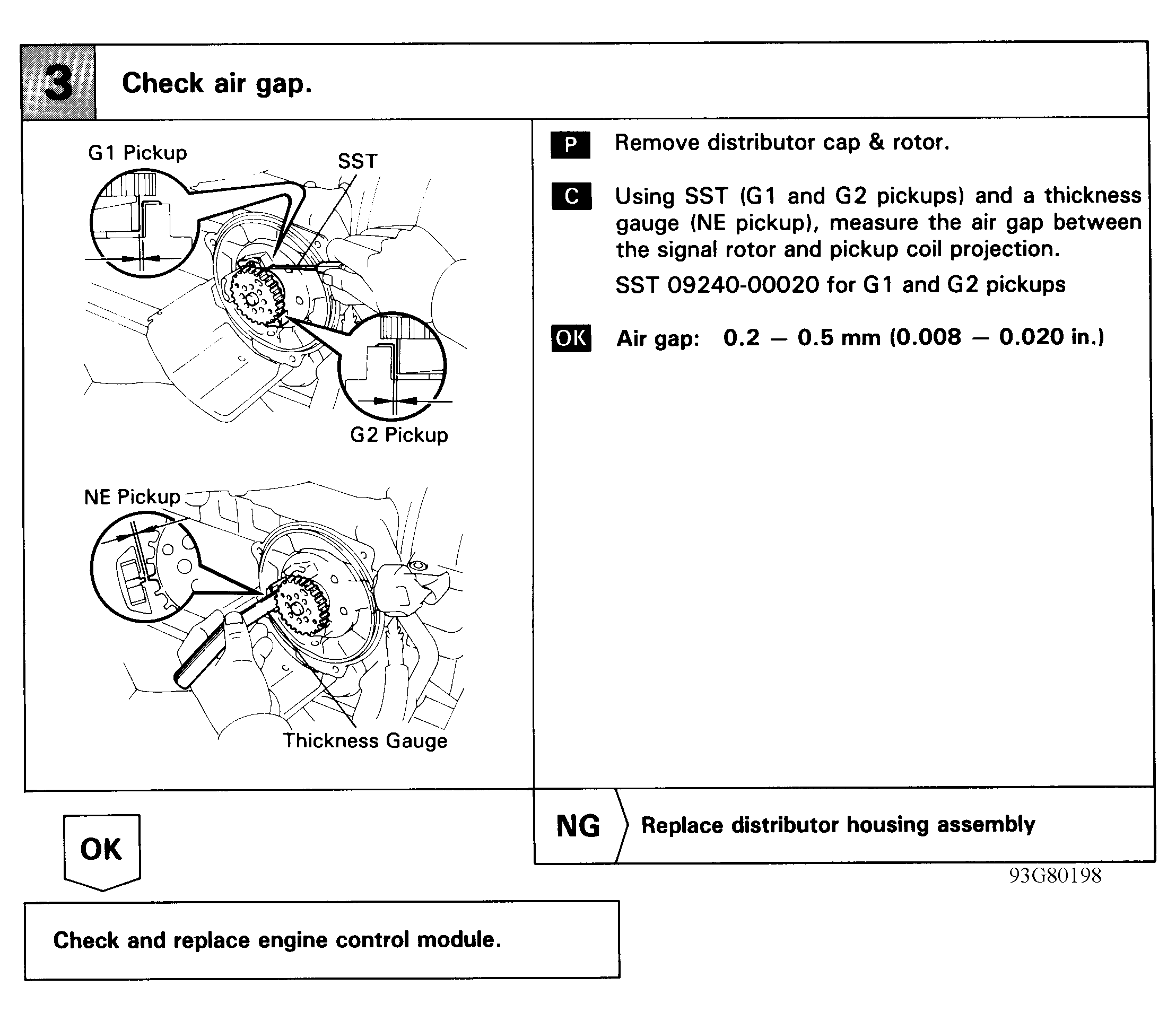

Fig 2: DTC 12 - Diagnostic Flowchart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
