Engine Controls - Tests W/Codes - Non-Turbo
›
Trouble Code Charts
›
DTC 24 - Intake Air Temperature Sensor Signal
DTC 24 - Intake Air Temperature Sensor Signal

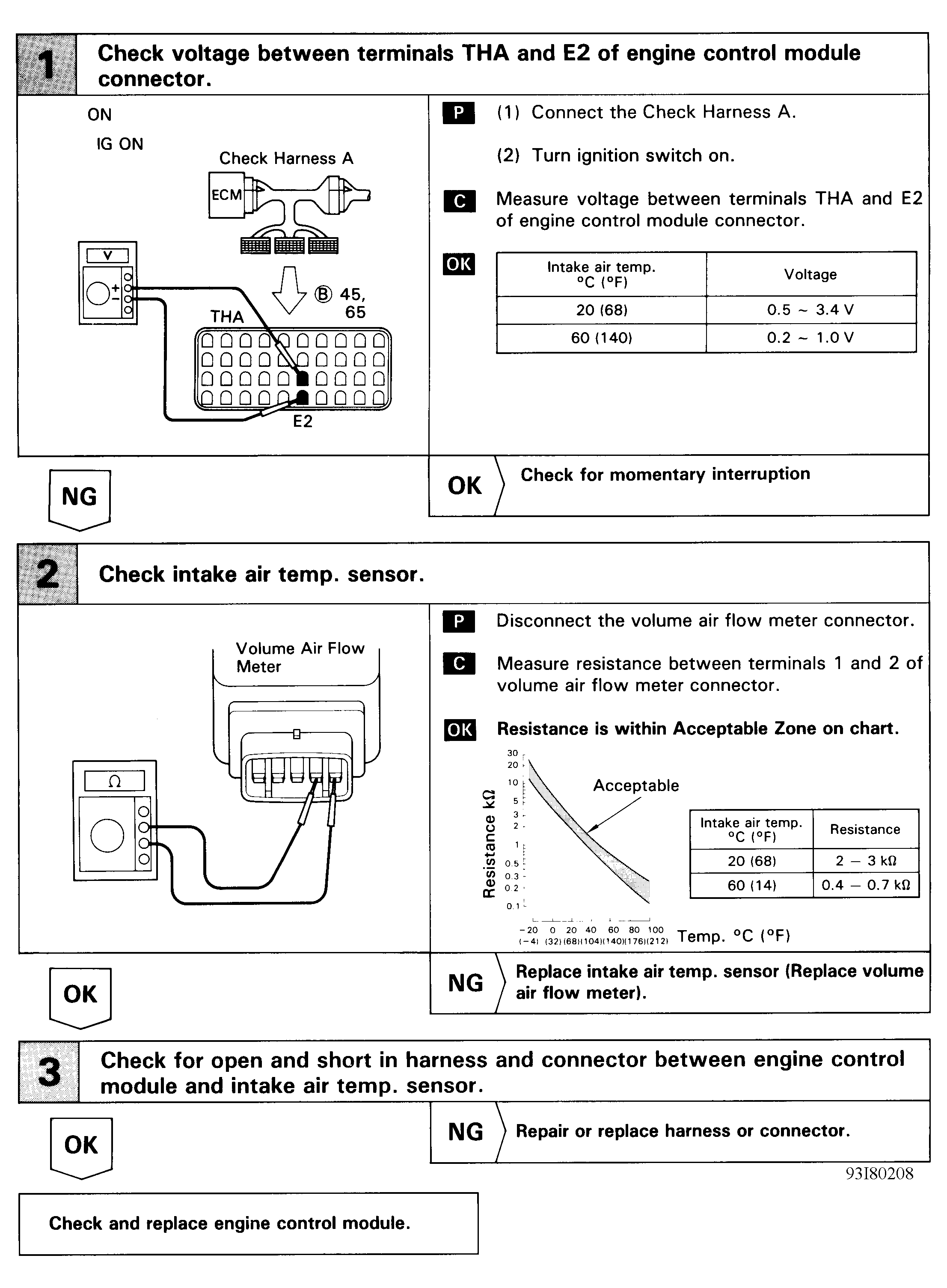

Fig 1: DTC 24 - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
