DTC 24 - Intake Air Temperature Sensor Signal
DTC 24 - Intake Air Temperature Sensor Signal

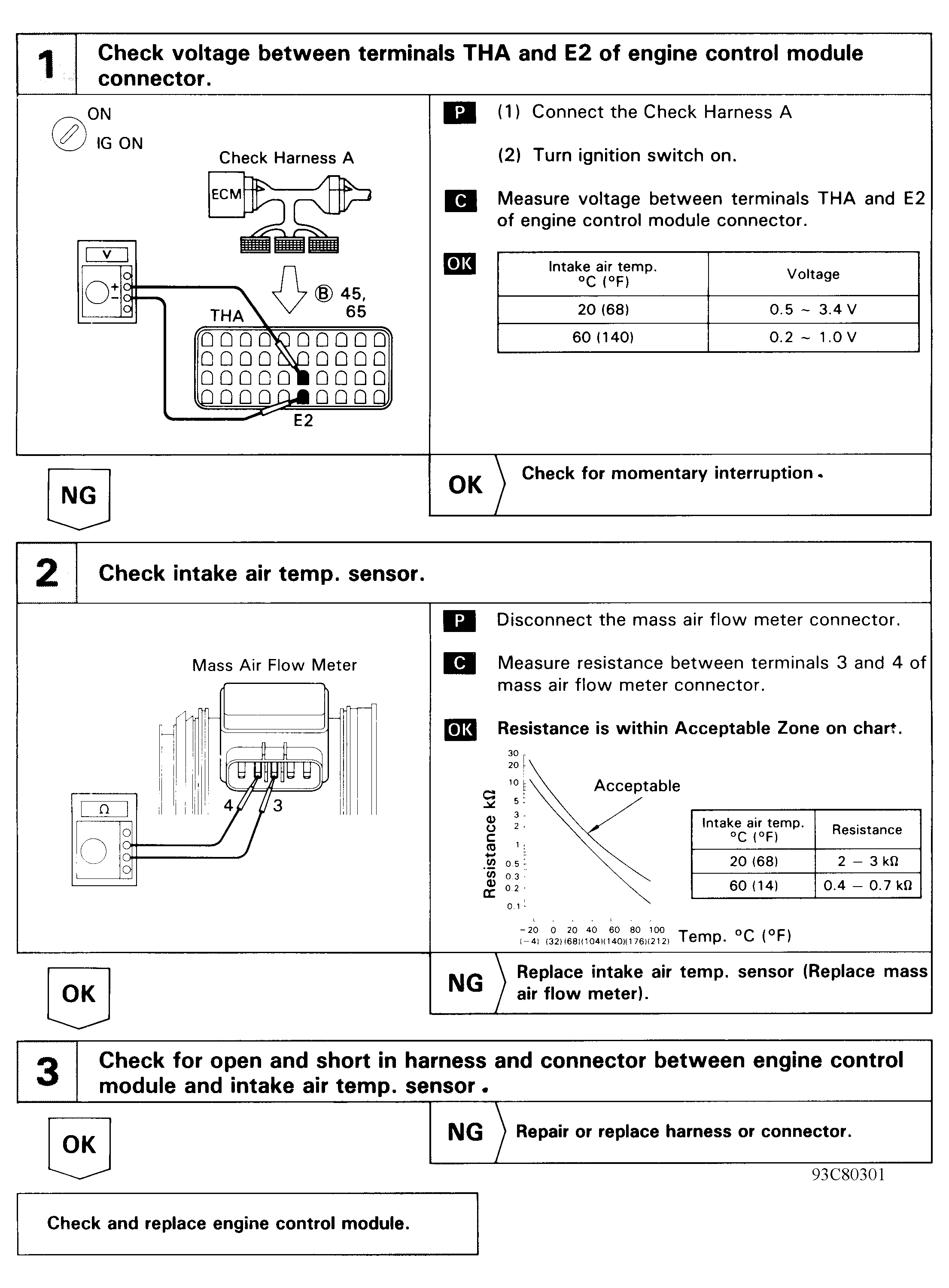

Fig 1: DTC 24 - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
