ECM Back-Up Power Source Circuit Check
ECM Back-Up Power Source Circuit Check

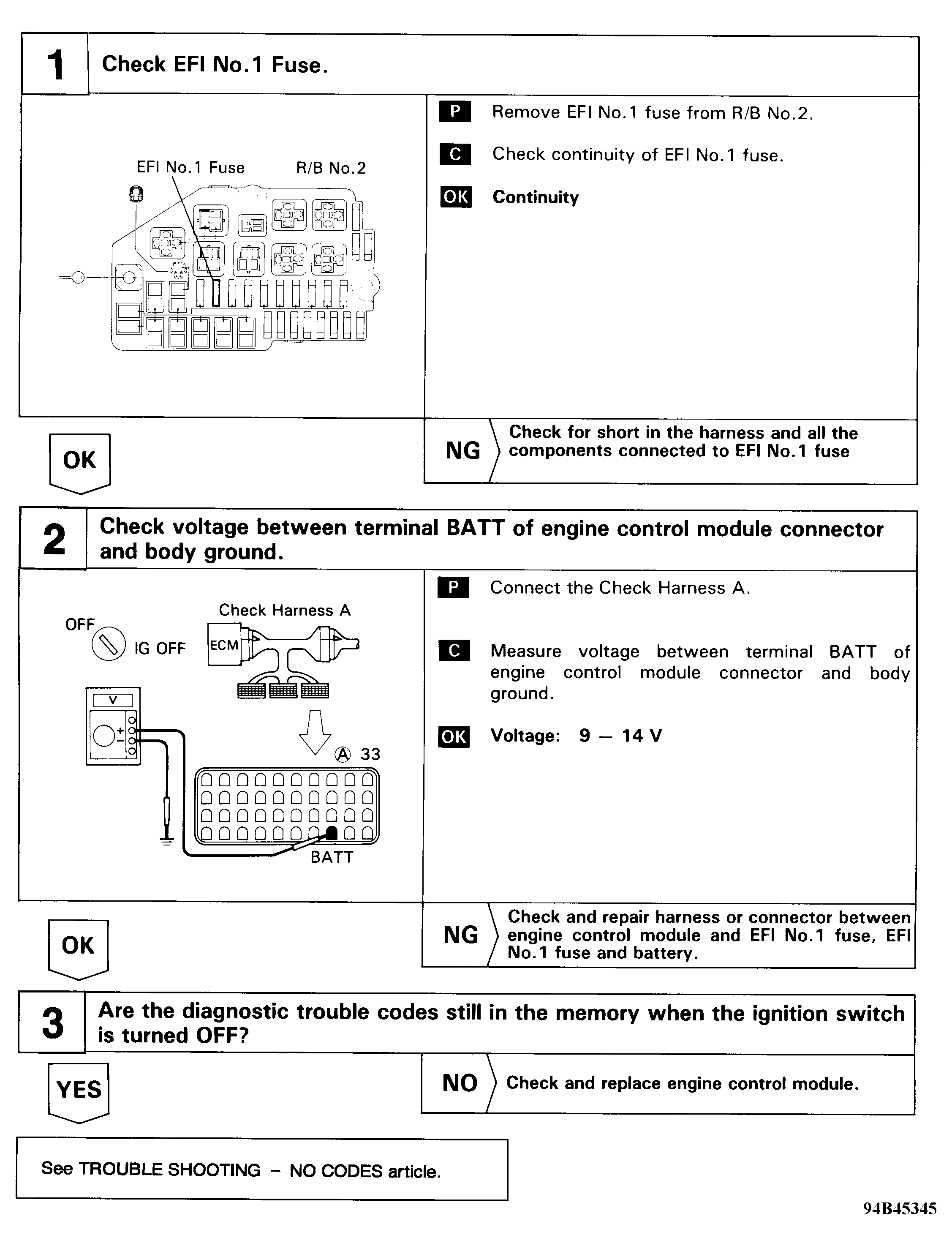

Fig 1: ECM Back-Up Power Source Circuit Check - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
