Engine Controls - Tests W/Codes - 4-CYL
›
Trouble Code Charts
›
DTC P0116 - Engine Coolant Temperature Sensor Circuit Range/Performance Problem
DTC P0116 - Engine Coolant Temperature Sensor Circuit Range/Performance Problem

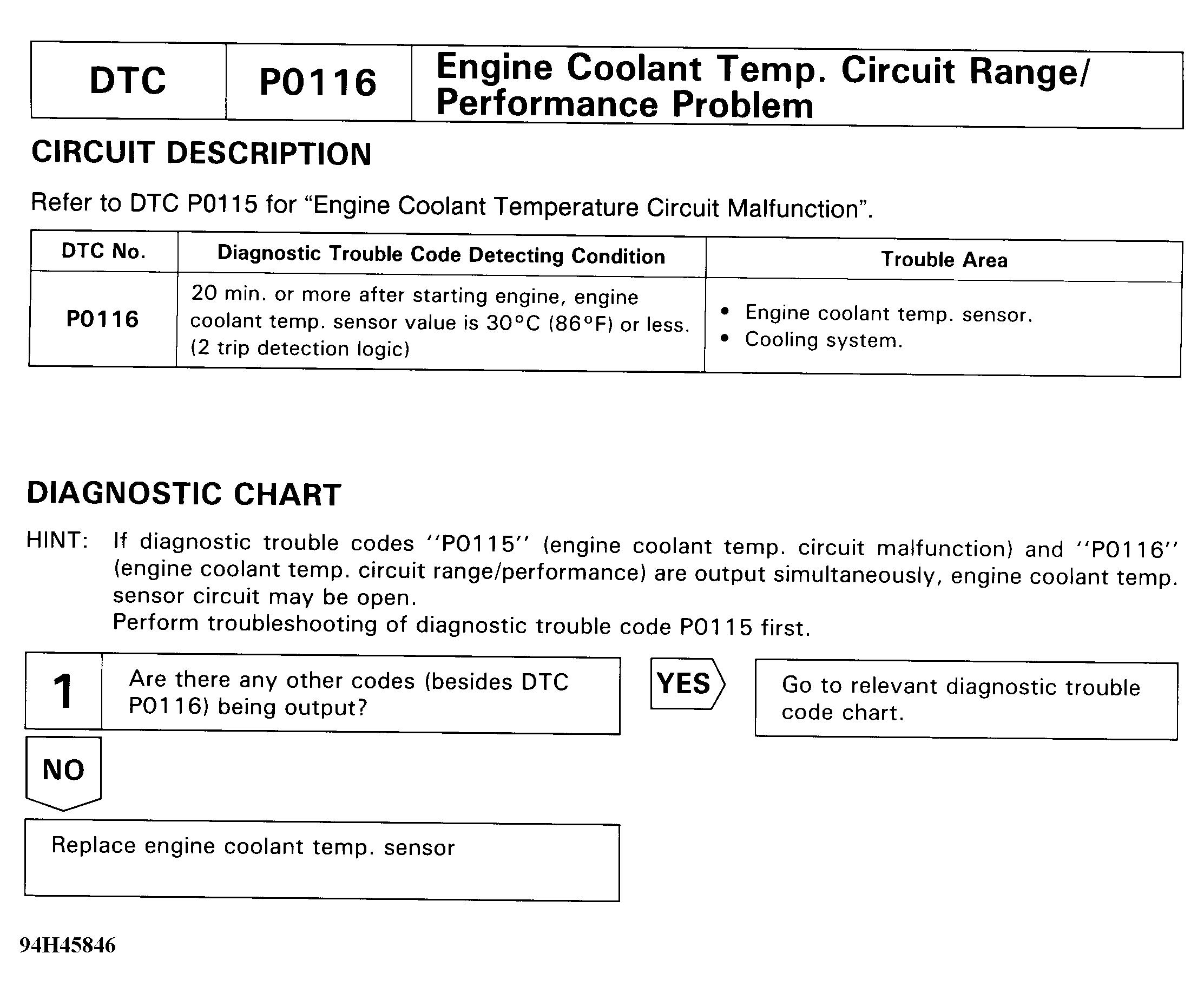

Fig 1: DTC P0116 - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
