DTC P0500 - Vehicle Speed Sensor Malfunction
DTC P0500 - Vehicle Speed Sensor Malfunction

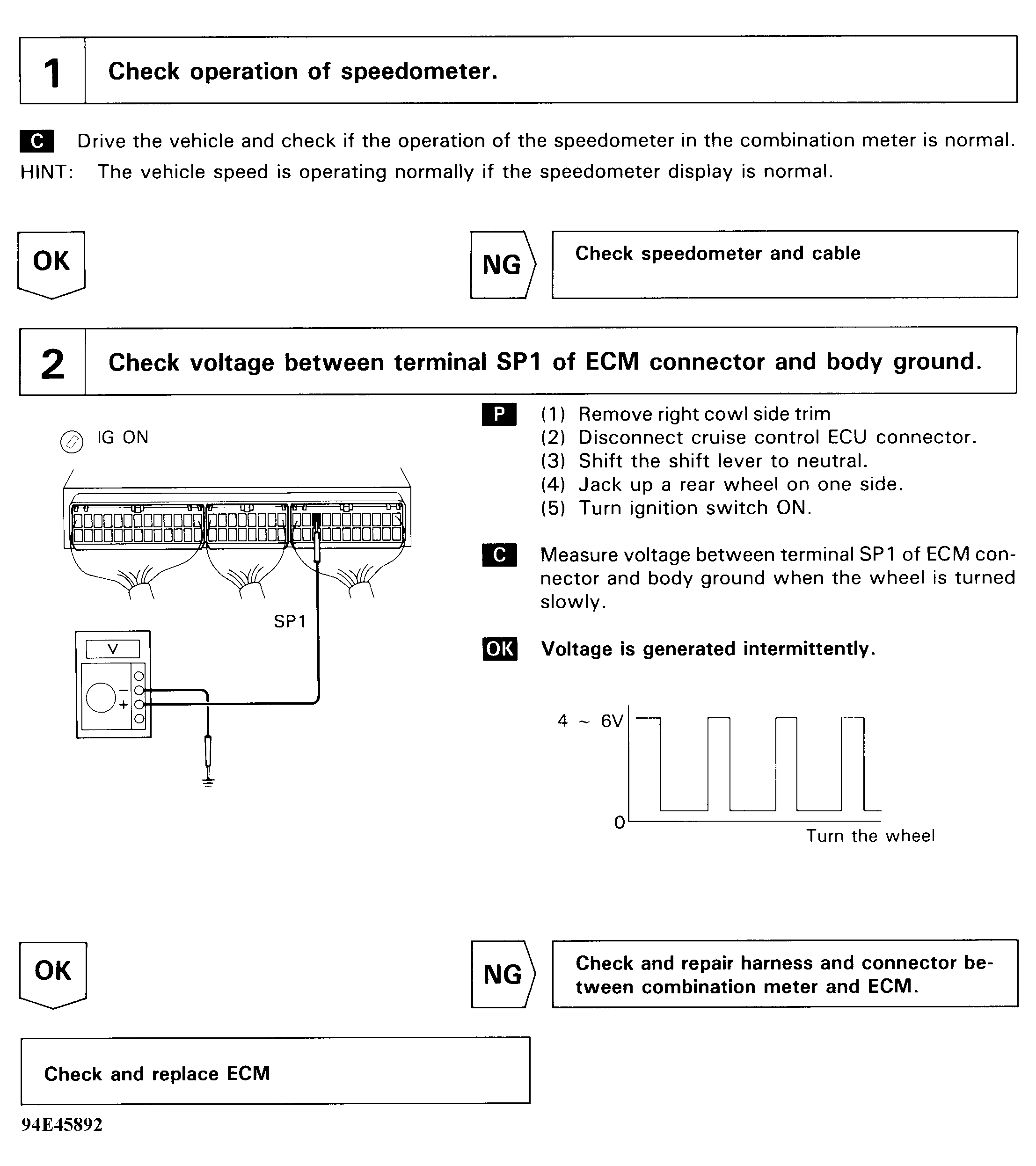

Fig 1: DTC P0500 - Diagnostic Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
