DTC P1300 - IGNITOR Circuit Malfunction

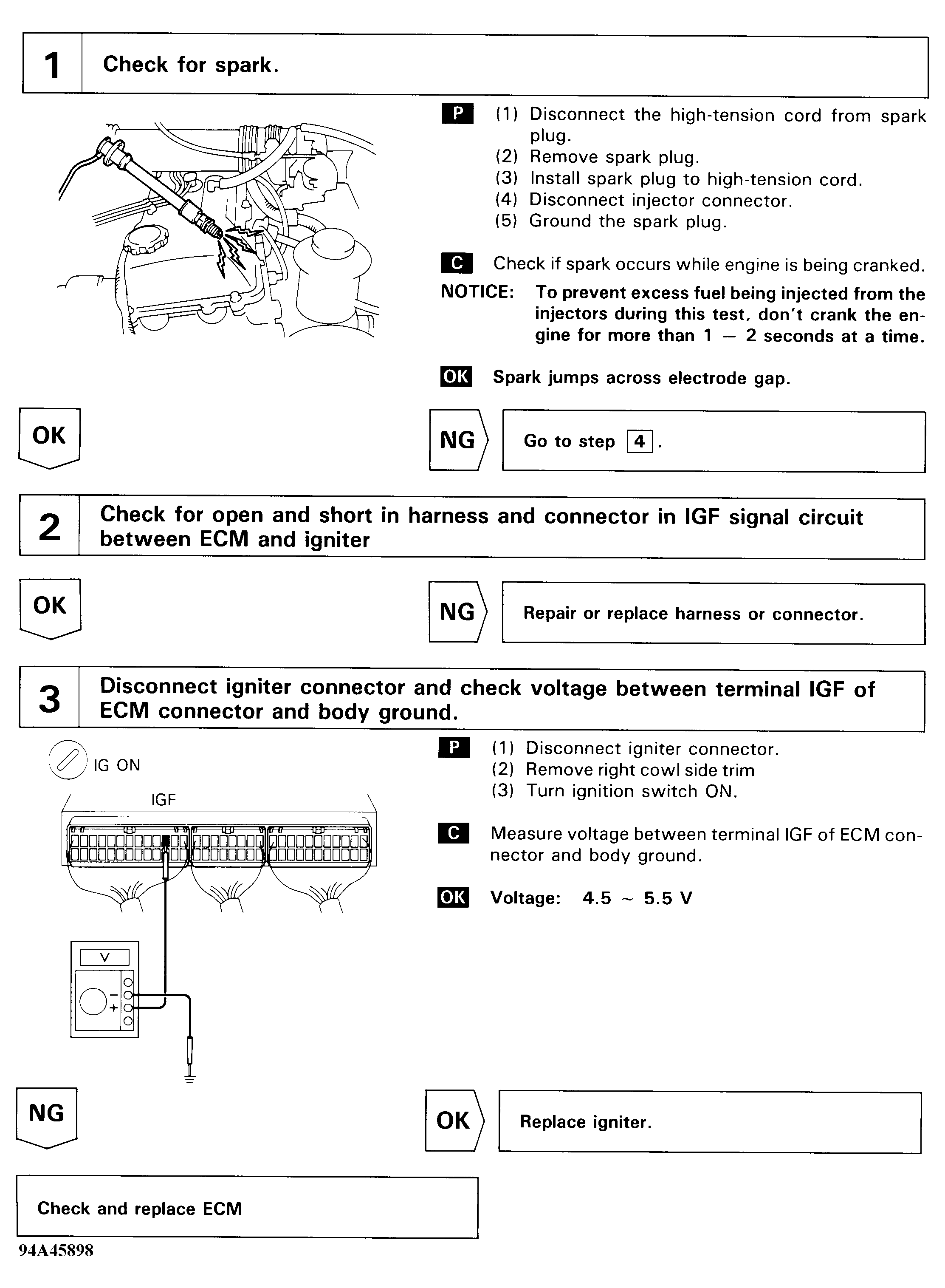

Fig 1: DTC P1300 - Diagnostic Flowchart (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

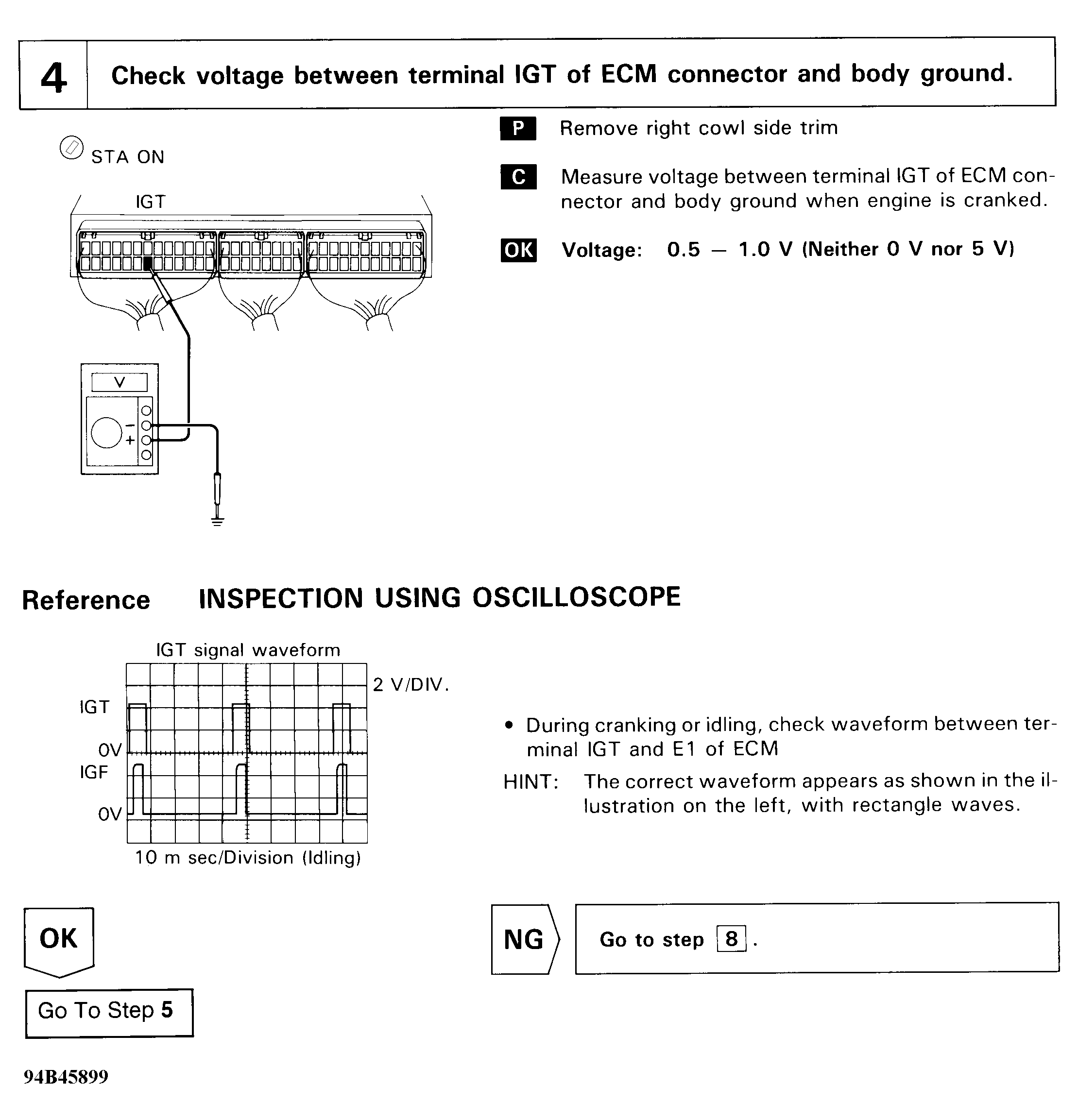

Fig 2: DTC P1300 - Diagnostic Flowchart (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

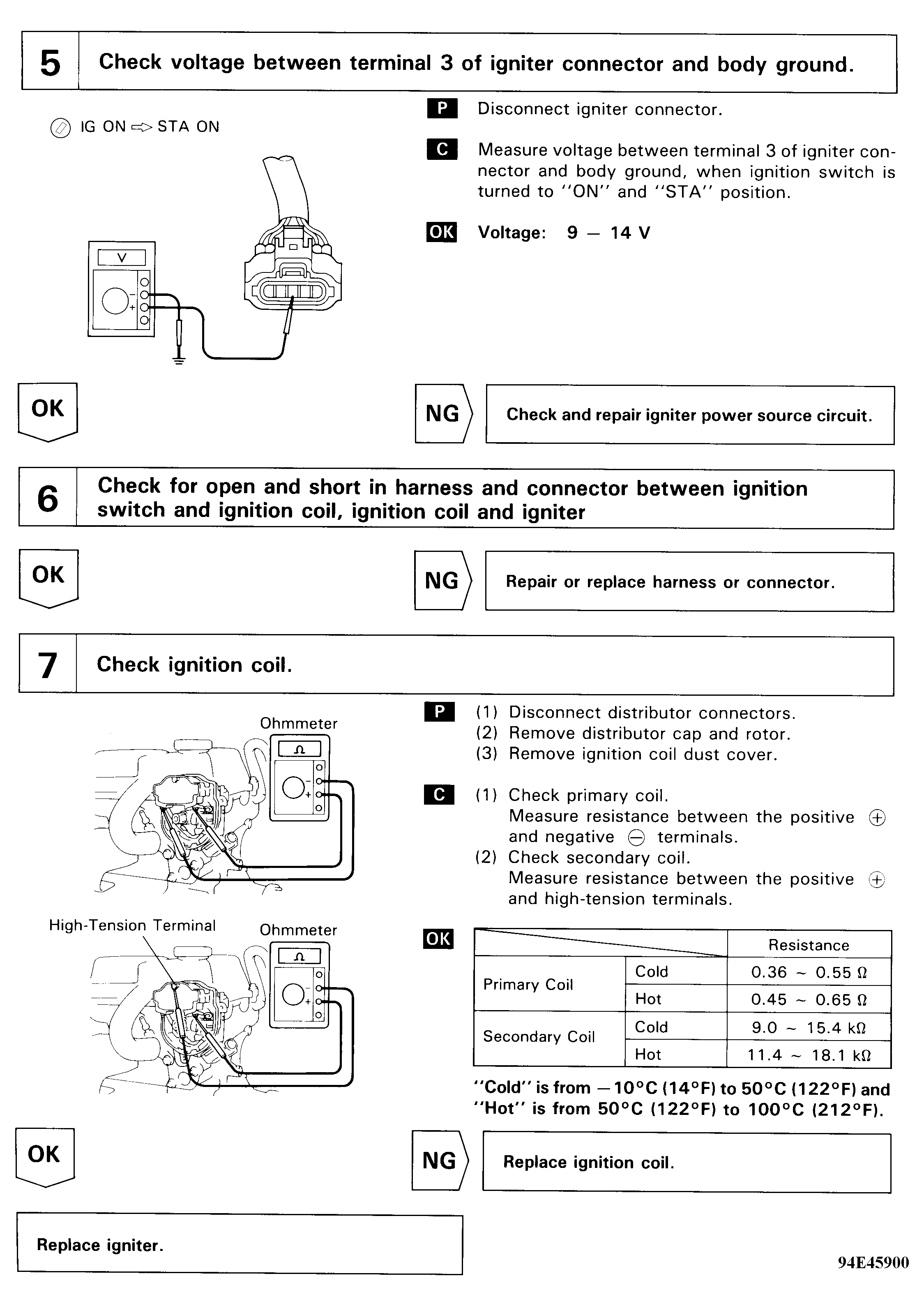

Fig 3: DTC P1300 - Diagnostic Flowchart (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

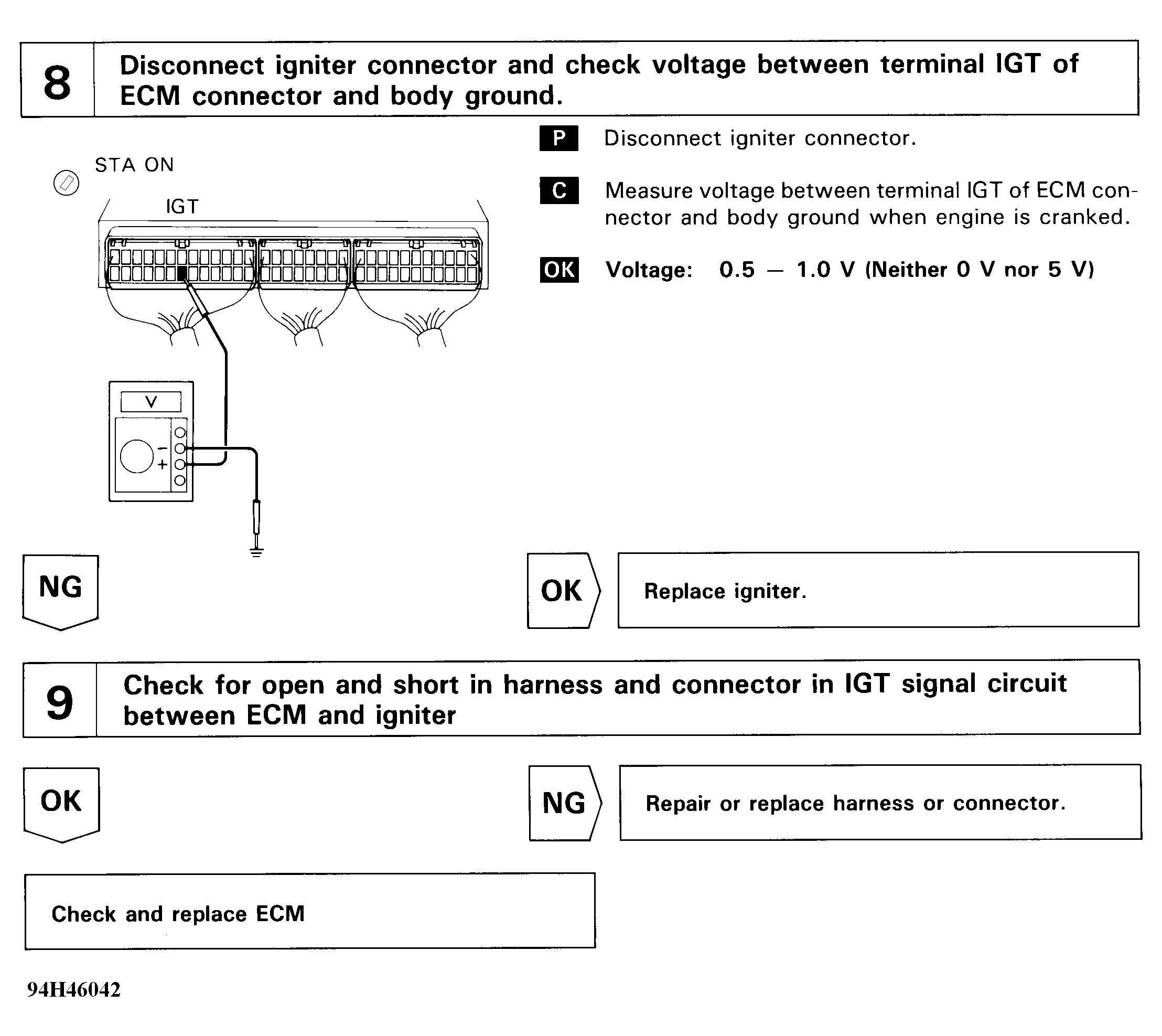

Fig 4: DTC P1300 - Diagnostic Flowchart (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
