Rear Suspension System: Description

For exploded view of rear suspension components, see Fig 1-Fig 3 .

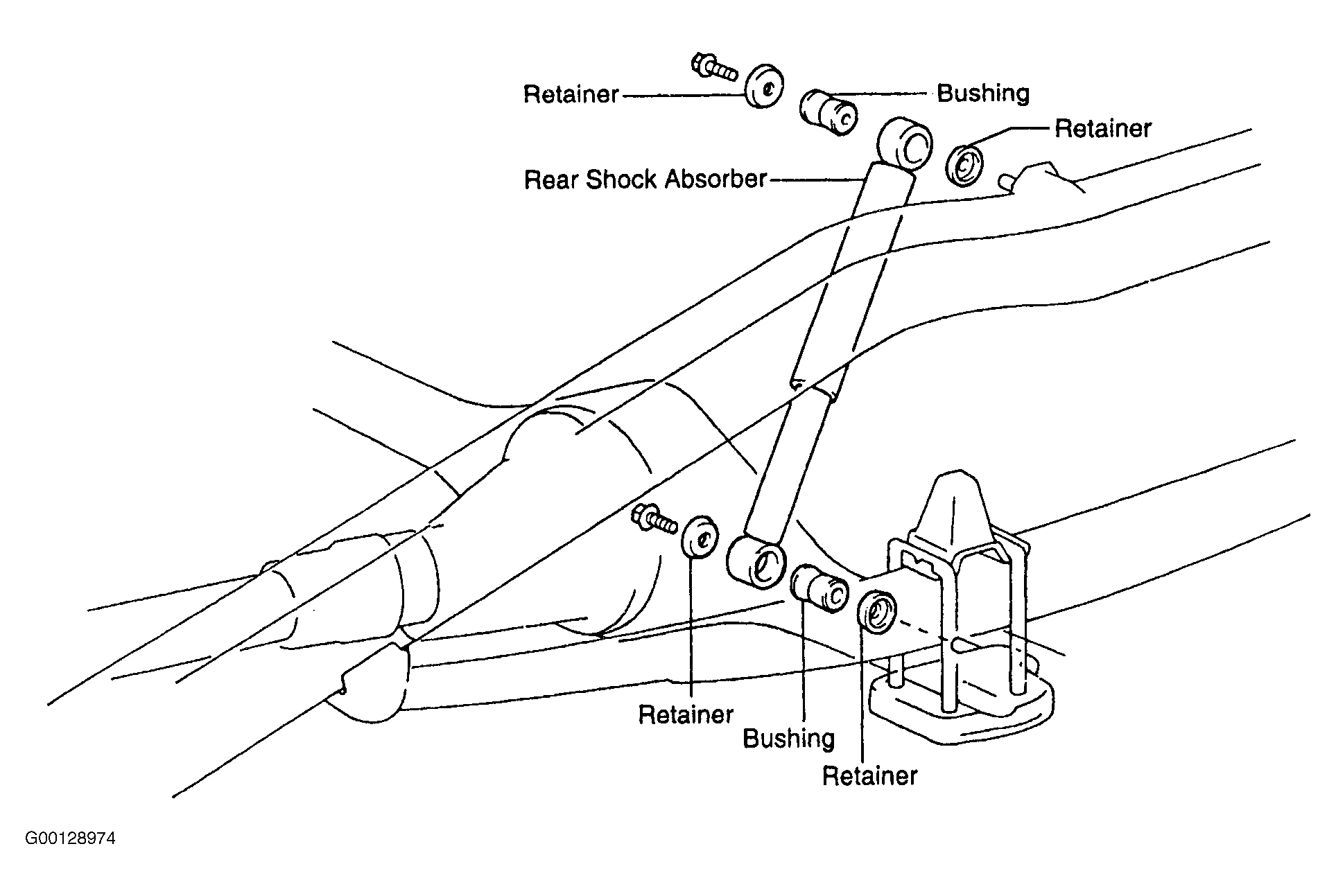

Fig 1: Exploded View Of Shock Absorber

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

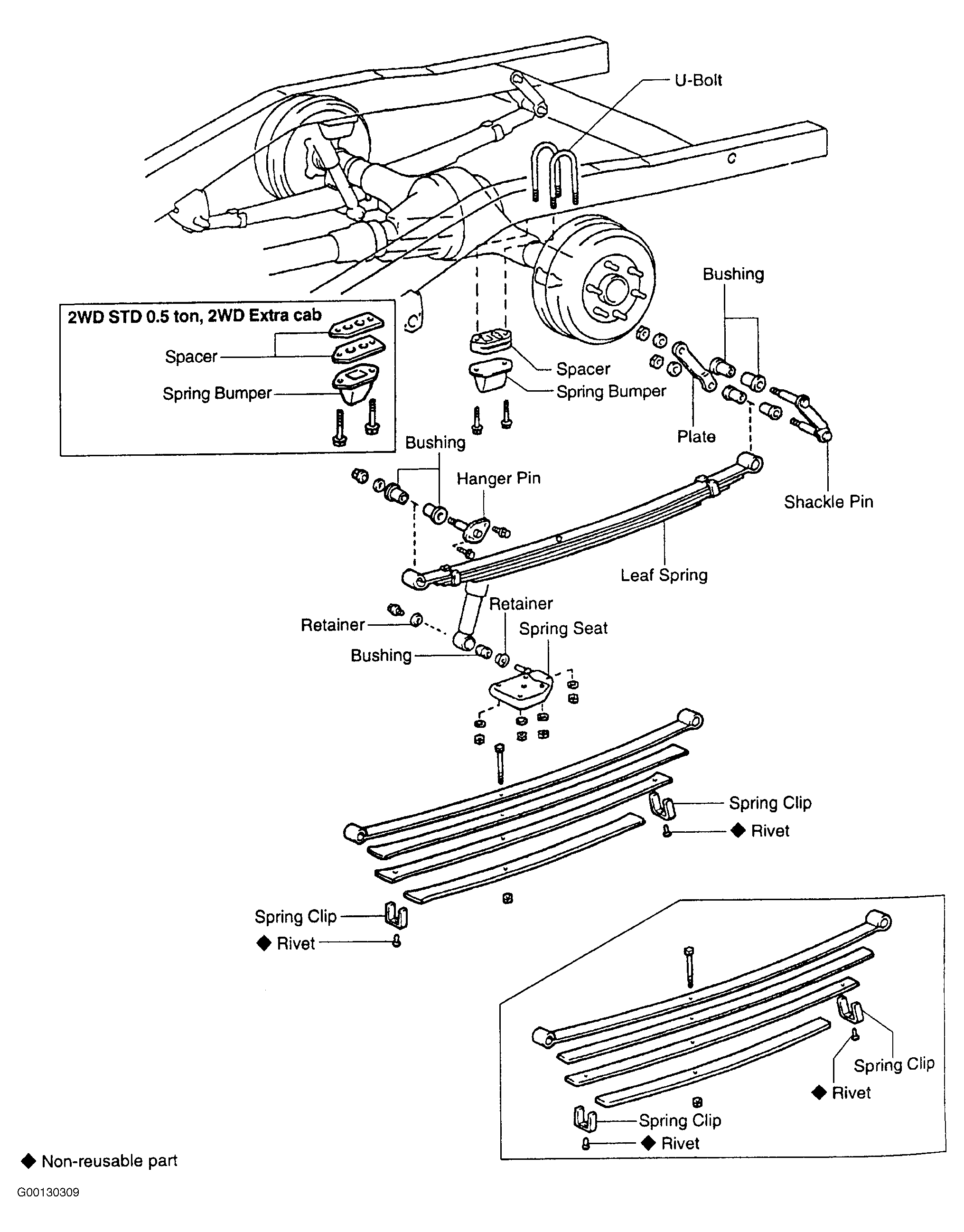

Fig 2: Exploded View Of Leaf Spring (2WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

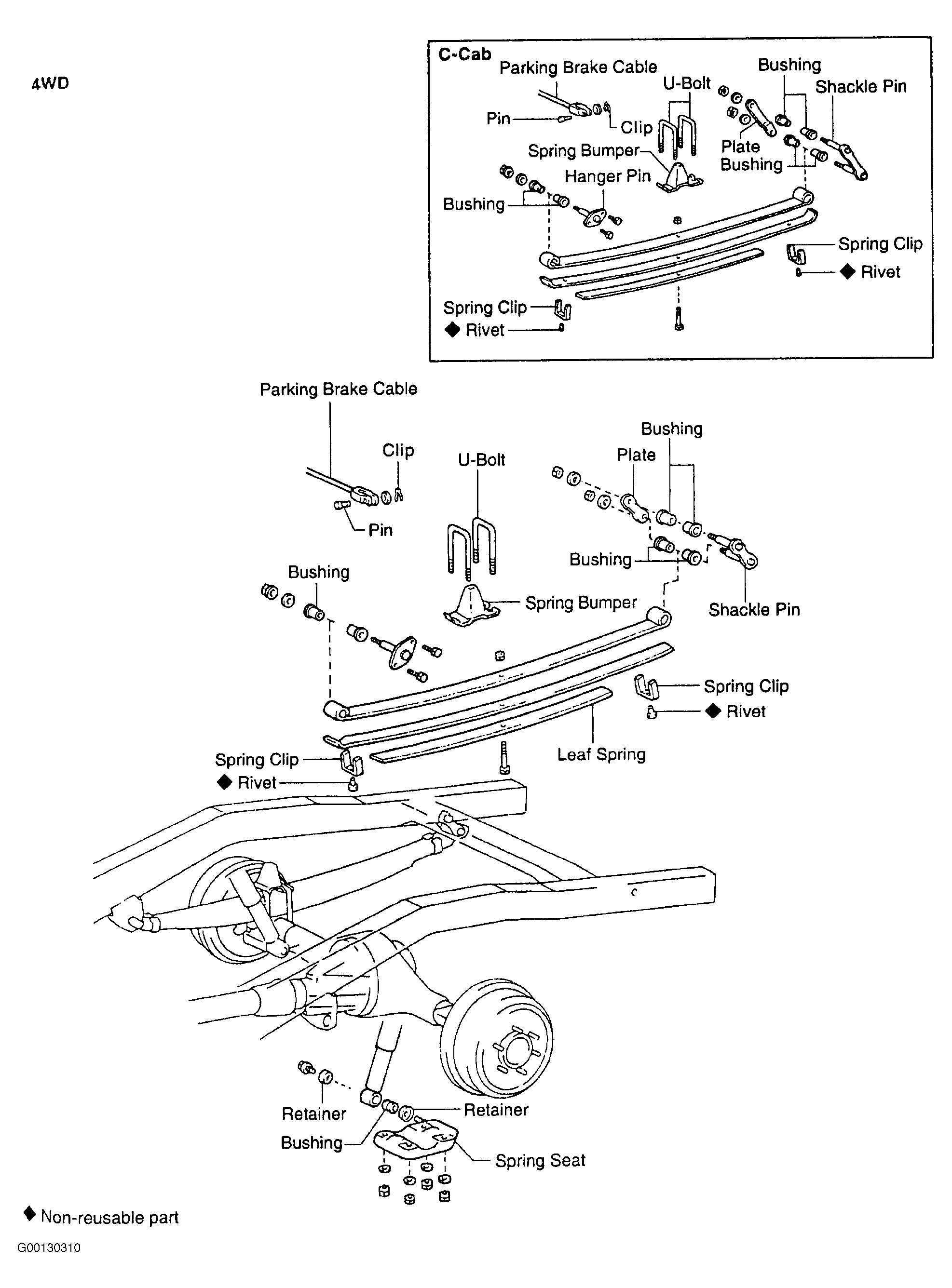

Fig 3: Exploded View Of Leaf Spring (4WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
