DTC 21 - Oxygen Sensor Signal

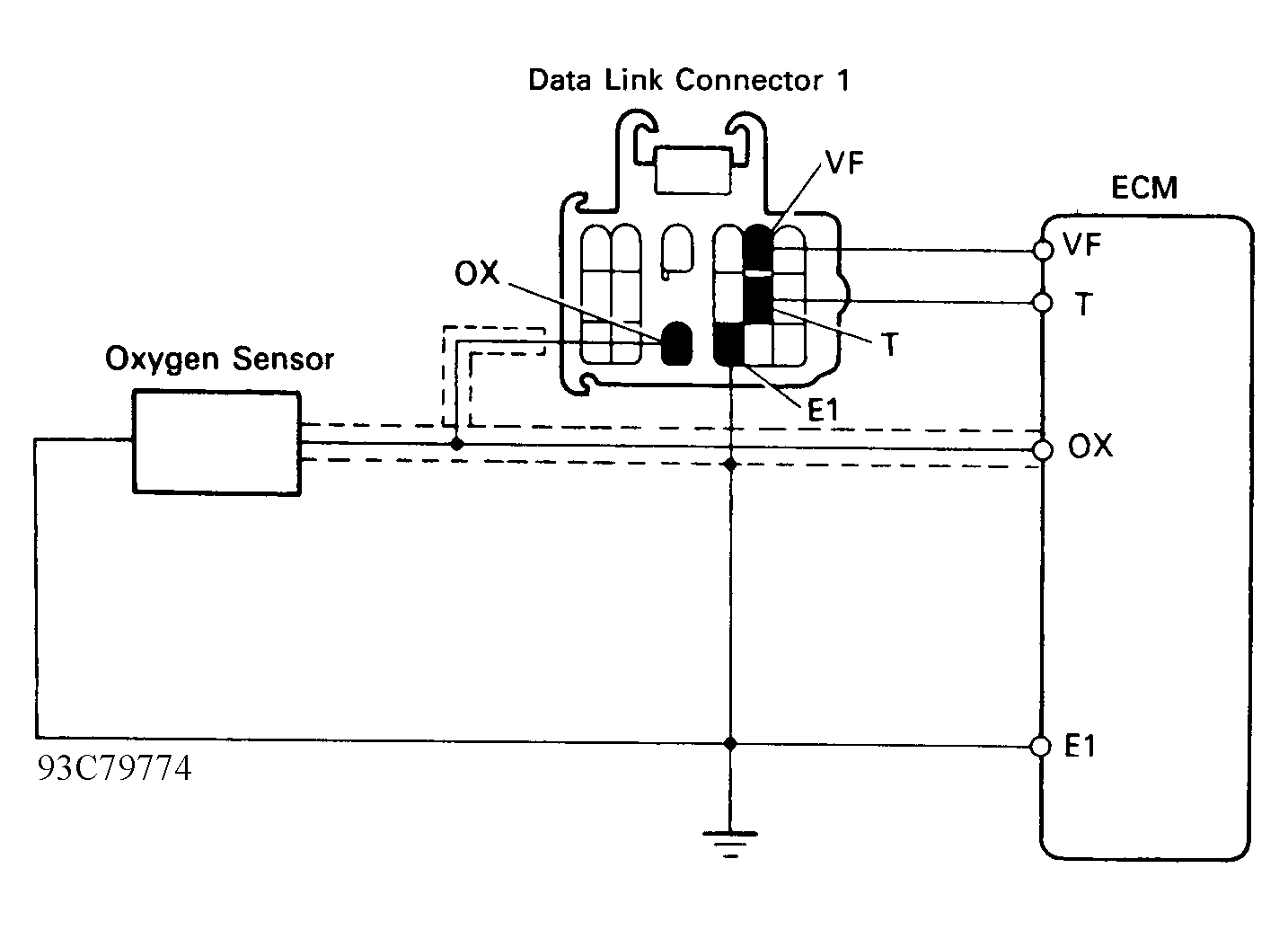

Fig 1: DTC 21 - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

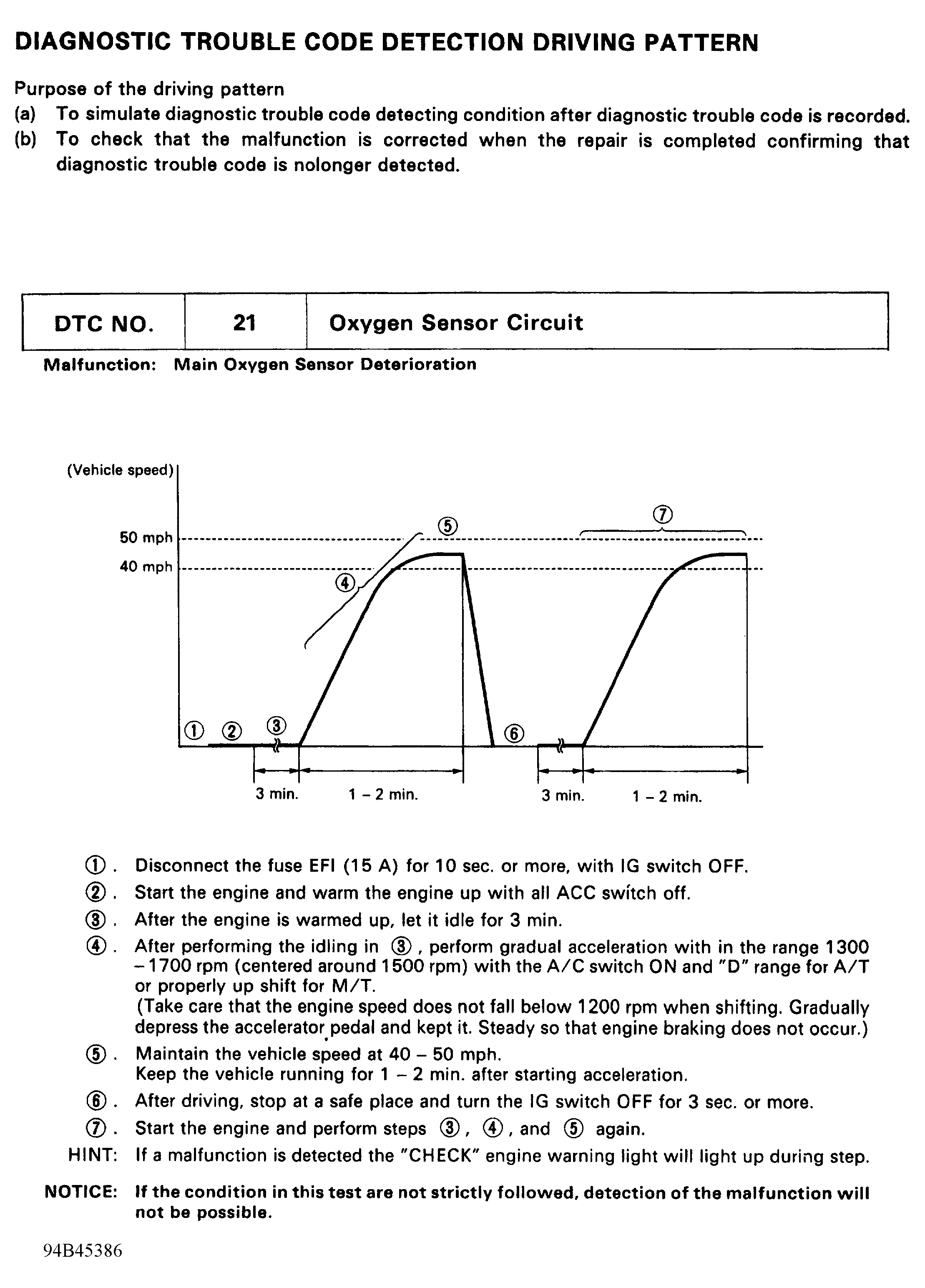

Fig 2: DTC 21 - Driving Detection Pattern

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

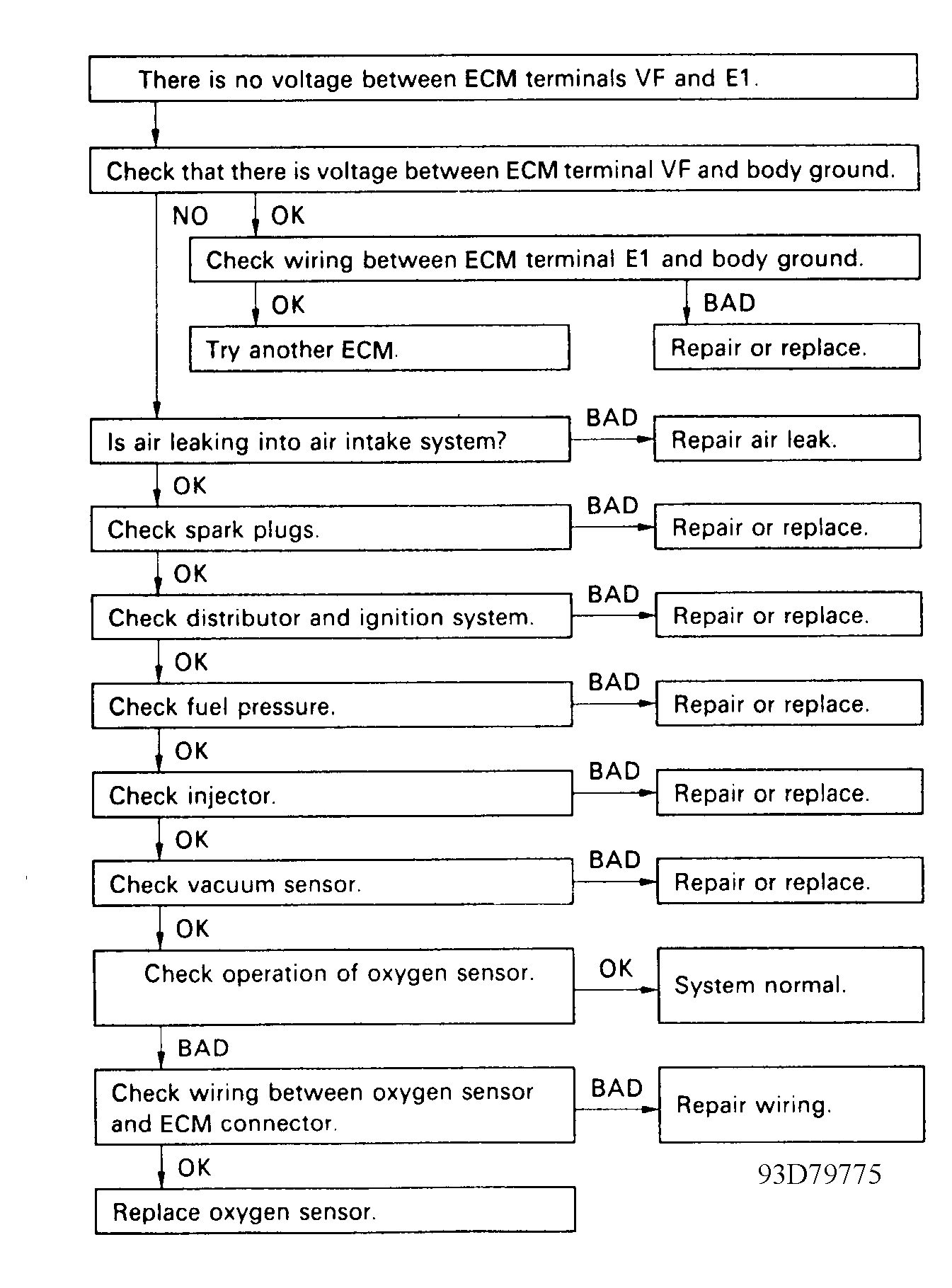

Fig 3: DTC 21 - Diagnostic Flowchart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
