DTC 41 - Throttle Position Sensor Signal

DTC 41 TPS SENSOR SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
IDL - E2	No Voltage	IG SW ON-Throttle valve OPEN	4.5-5.5V
VCC - E2		IG SW ON-	4.5-5.5V
VTA - E2	No Voltage	IG SW ON-Throttle valve SHUT	0.8-1.2V
		IG SW ON-Throttle valve OPEN	3.2-4.2V

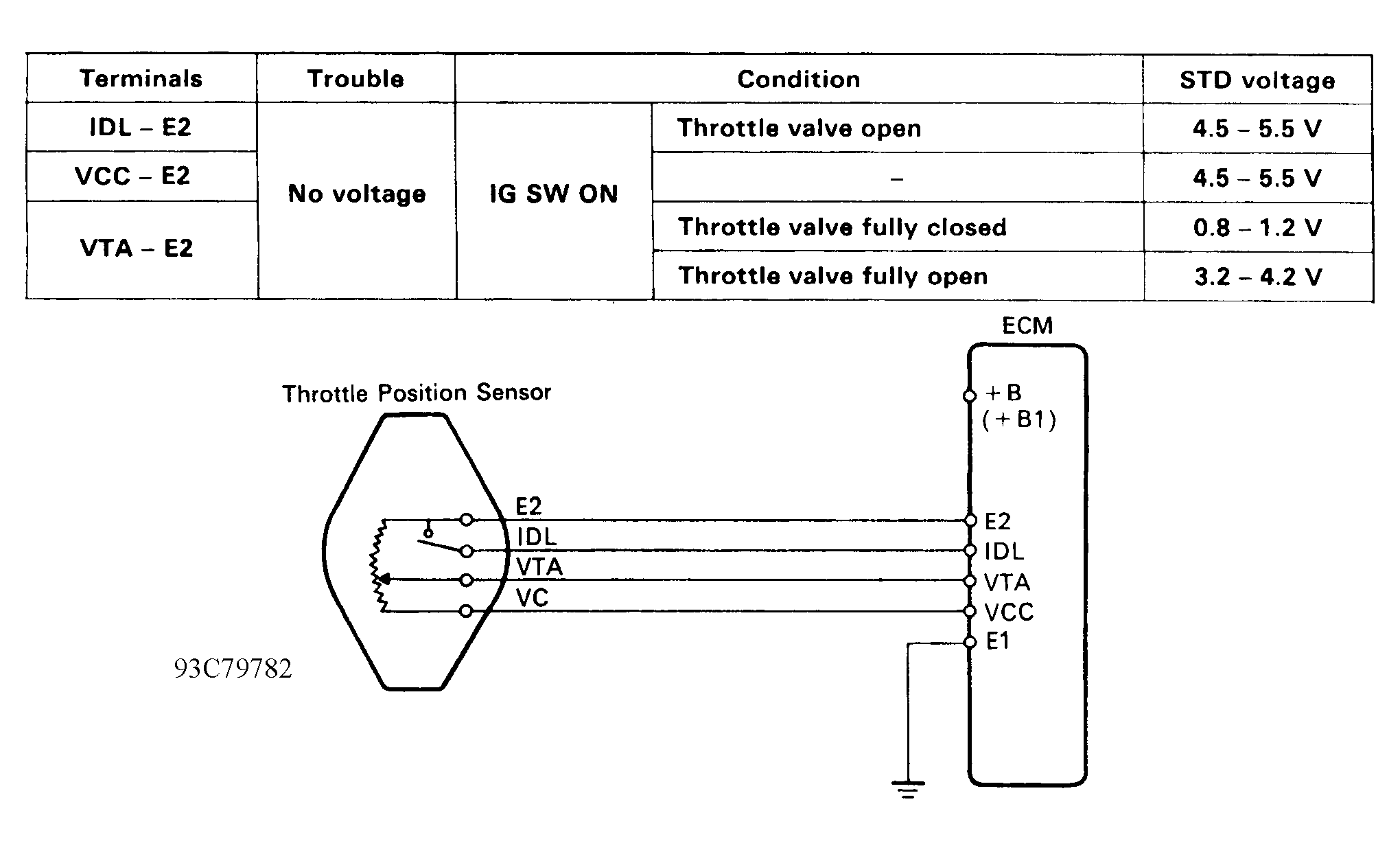

Fig 1: DTC 41 - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

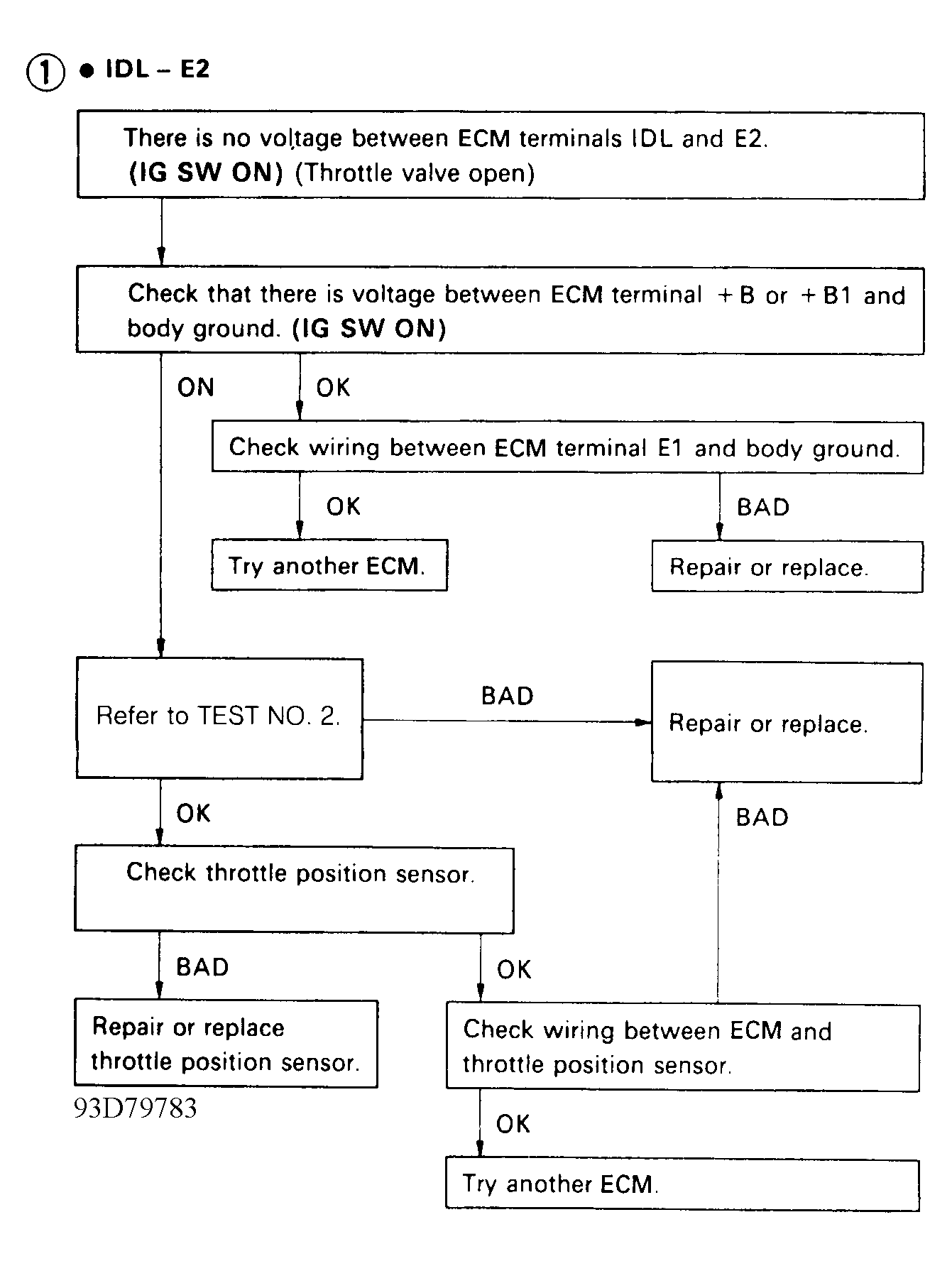

Fig 2: DTC 41 - Diagnostic Flowchart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

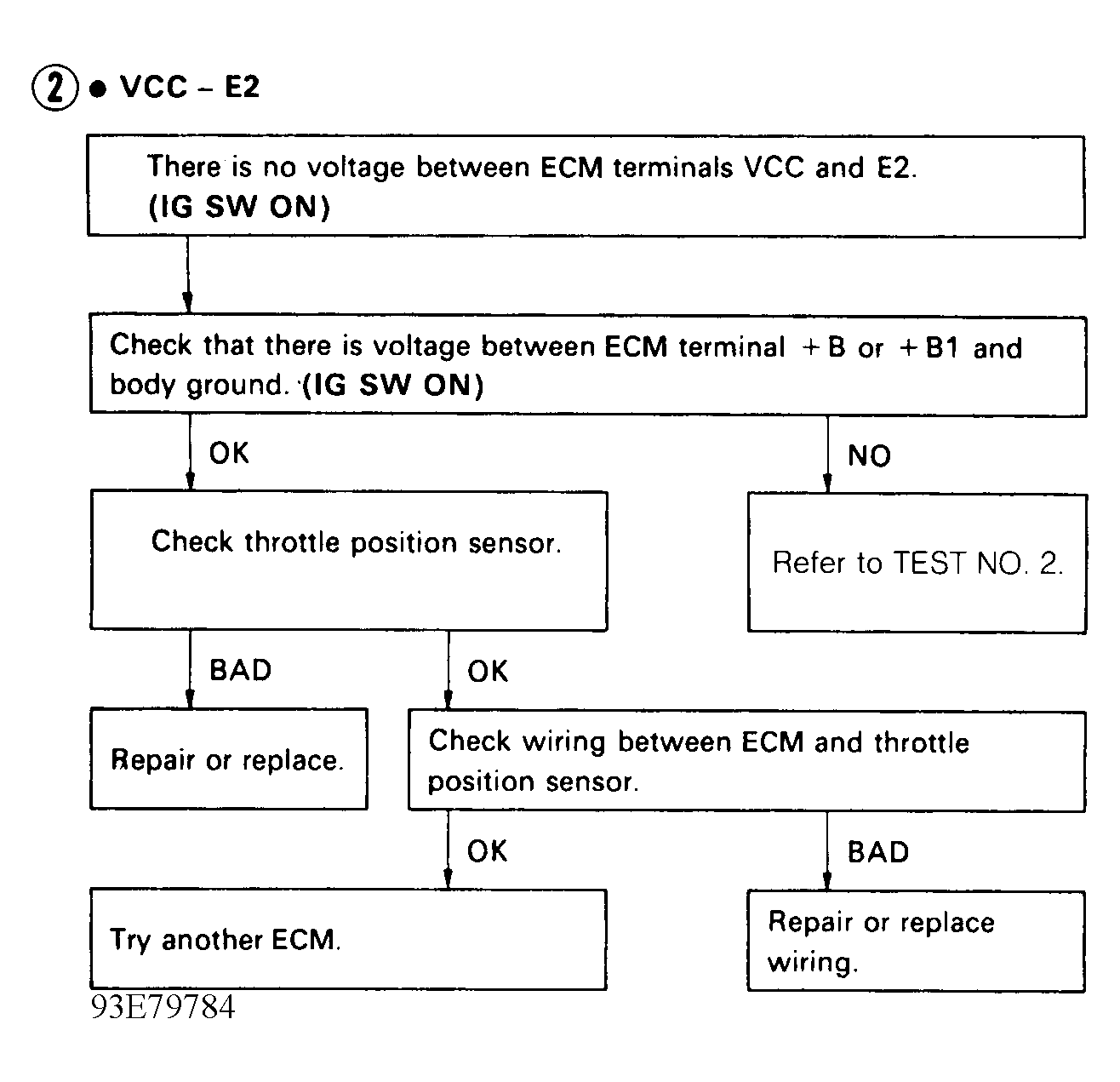

Fig 3: DTC 41 - Diagnostic Flowchart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

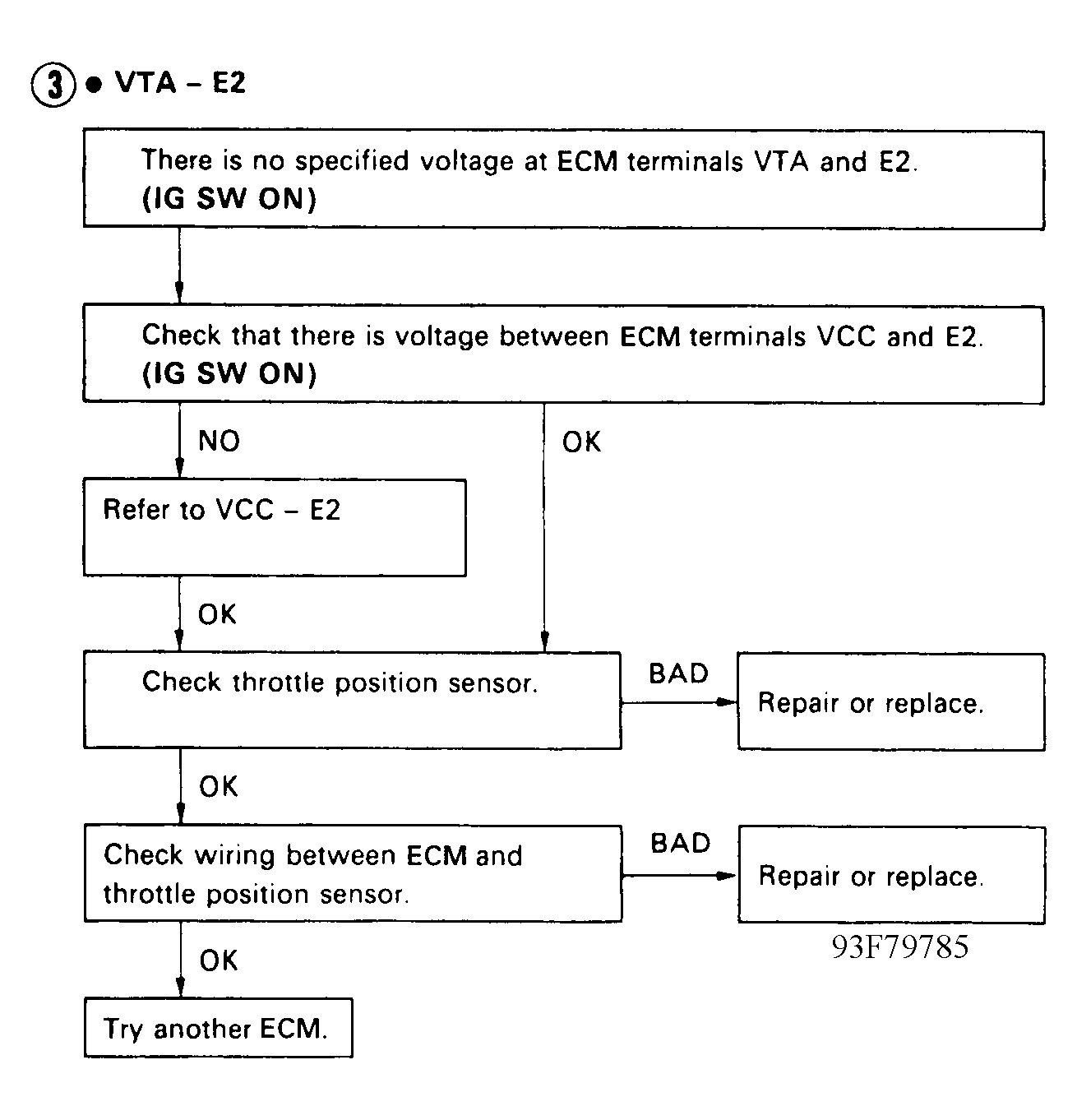

Fig 4: DTC 41 - Diagnostic Flowchart (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
