DTC 43 - Starter Signal

DTC 43 STARTER SIGNAL TROUBLE

Terminals	Trouble	Condition	STD Voltage
STA-E1	No Voltage	Cranking	6-14V

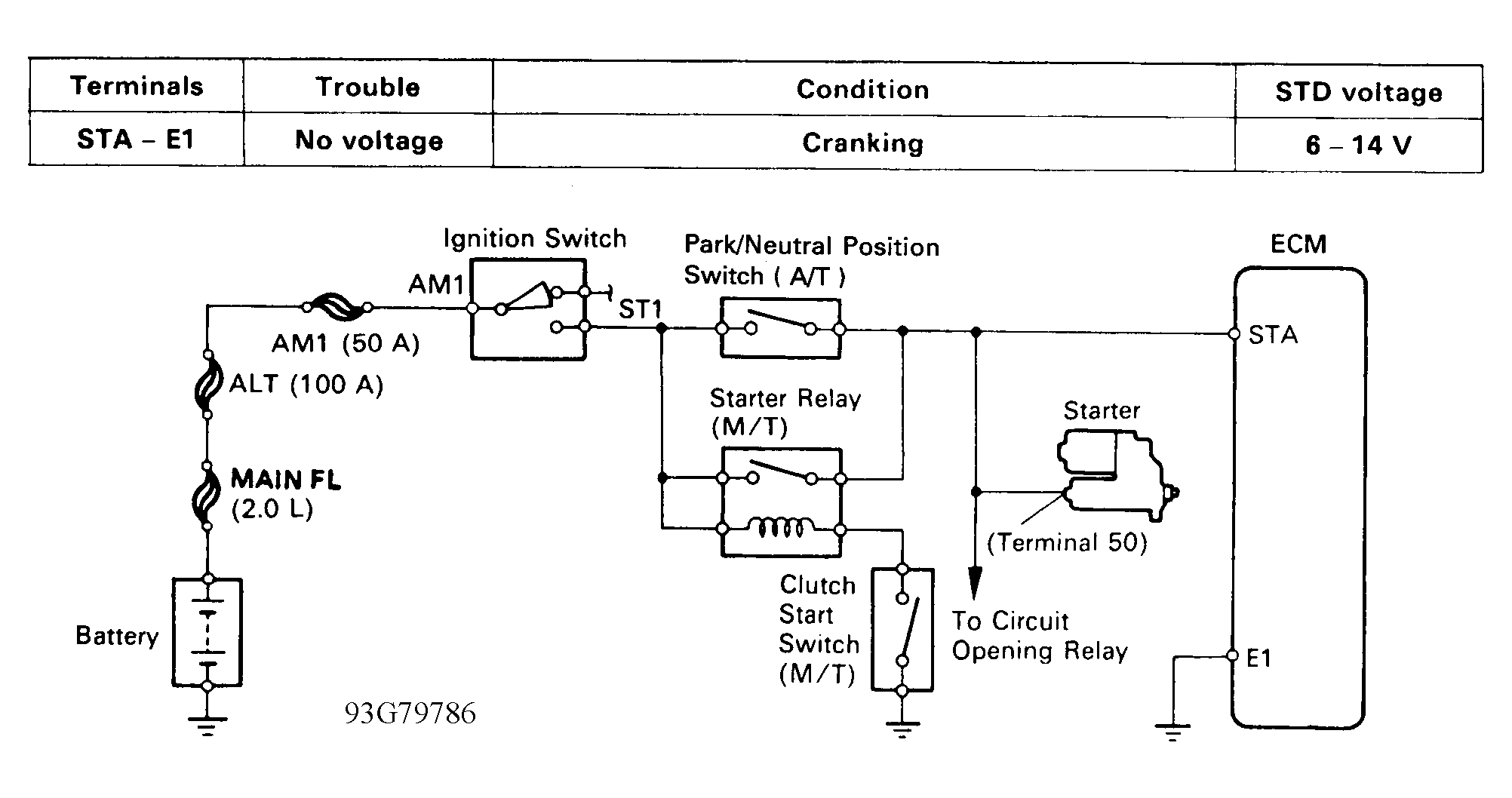

Fig 1: DTC 43 - Schematic

G93G79786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: DTC 43 - Component Diagram

G91G17695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: DTC 43 - Diagnostic Flowchart

G93H79787

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
