Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake System
›
Circuit Tests
›
Abs Warning Light Circuit
Abs Warning Light Circuit

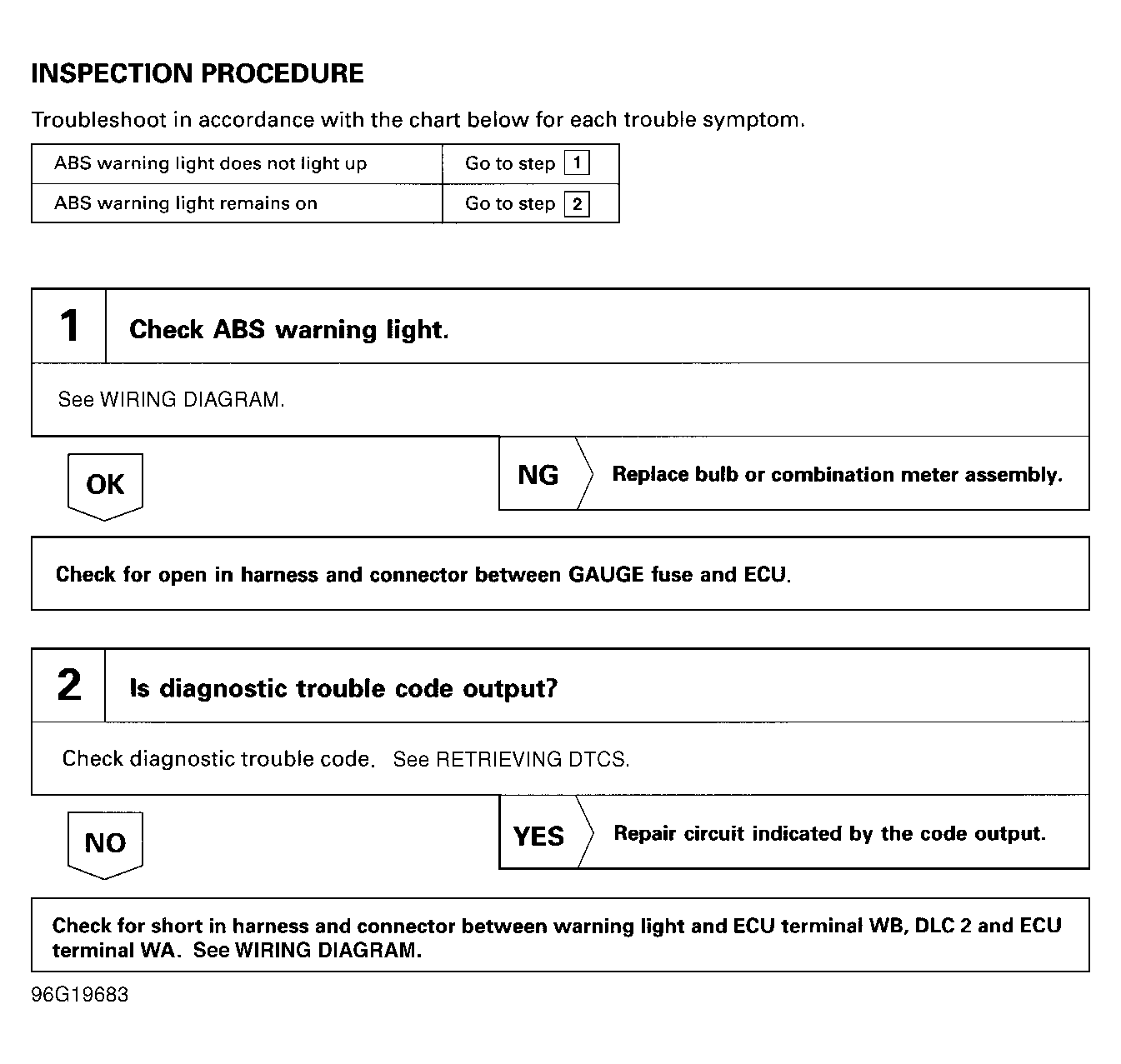

Fig 1: ABS WARNING LIGHT CIRCUIT CHART (1 OF 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

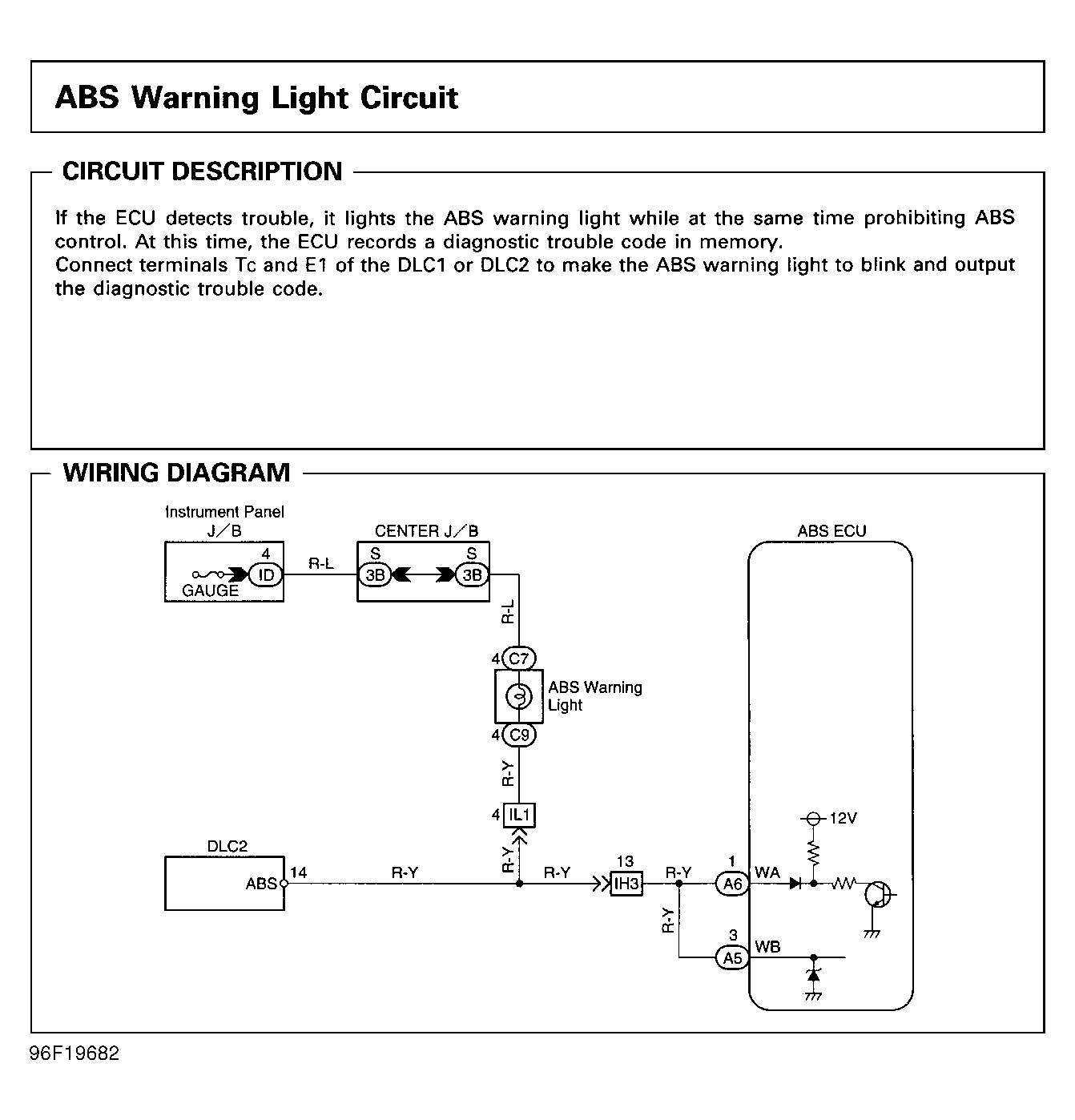

Fig 2: ABS WARNING LIGHT CIRCUIT CHART (2 OF 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
