Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake System
›
Circuit Tests
›
Stop Light Switch Circuit
Stop Light Switch Circuit

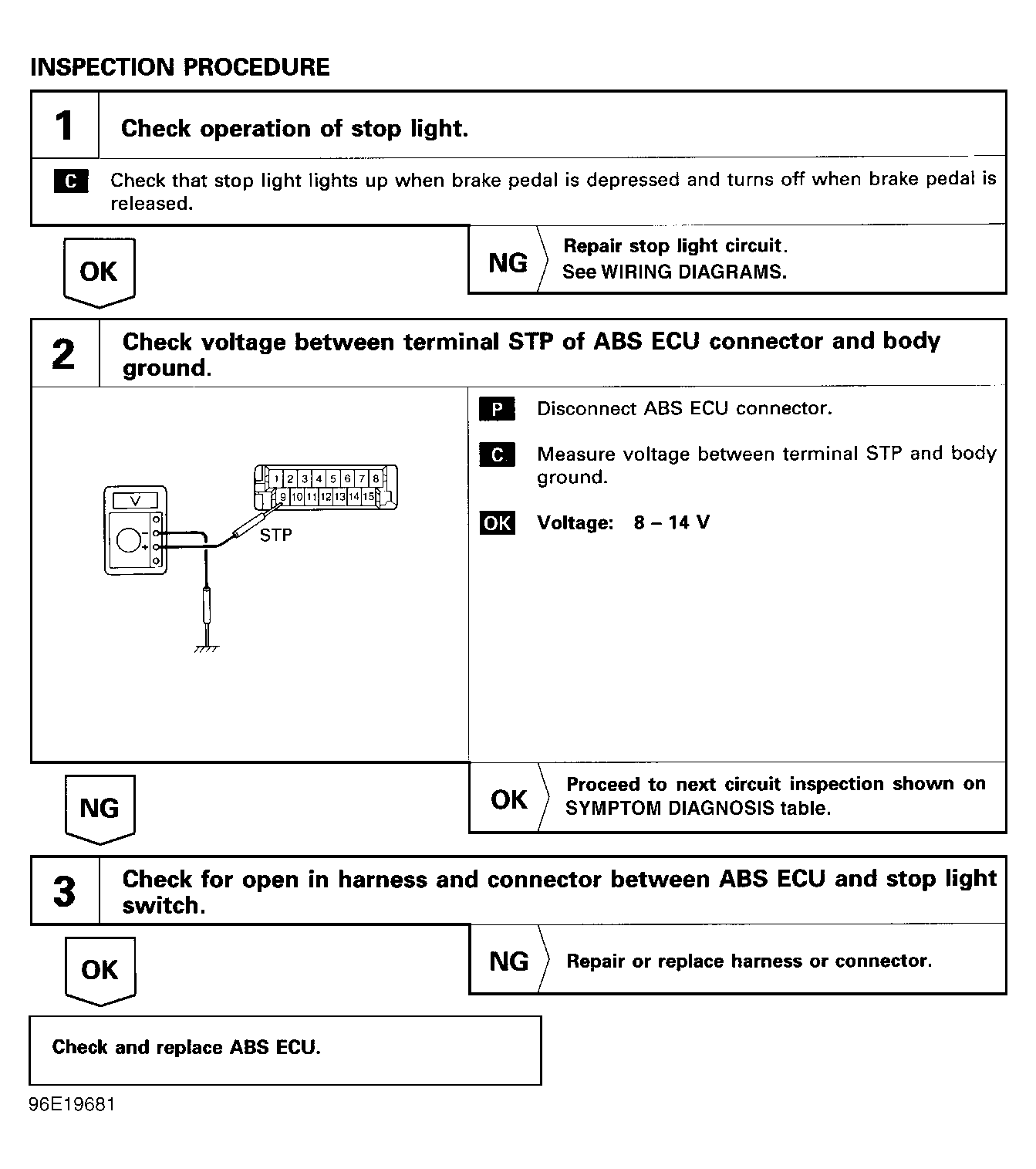

Fig 1: STOP LIGHT SWITCH CIRCUIT CHART (1 OF 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: STOP LIGHT SWITCH CIRCUIT CHART (2 OF 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
