Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| A/C Fuse | Behind right side of dash. |

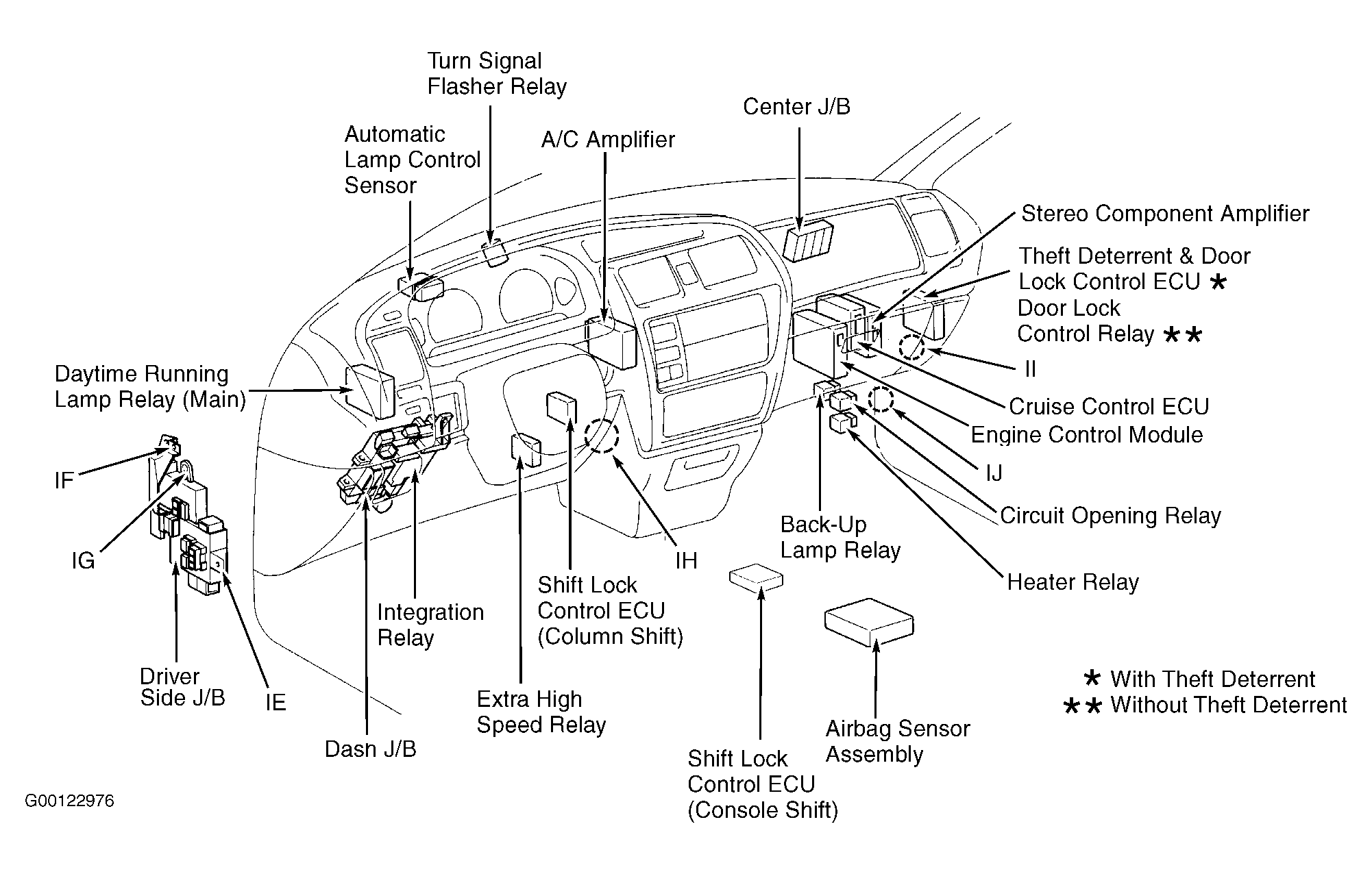

| Center J/B | Behind right side of dash. See Figure. |
| Dash J/B | Behind left side of dash. See Figure. |
| Driver Side J/B | Behind left kick panel. See Figure. |

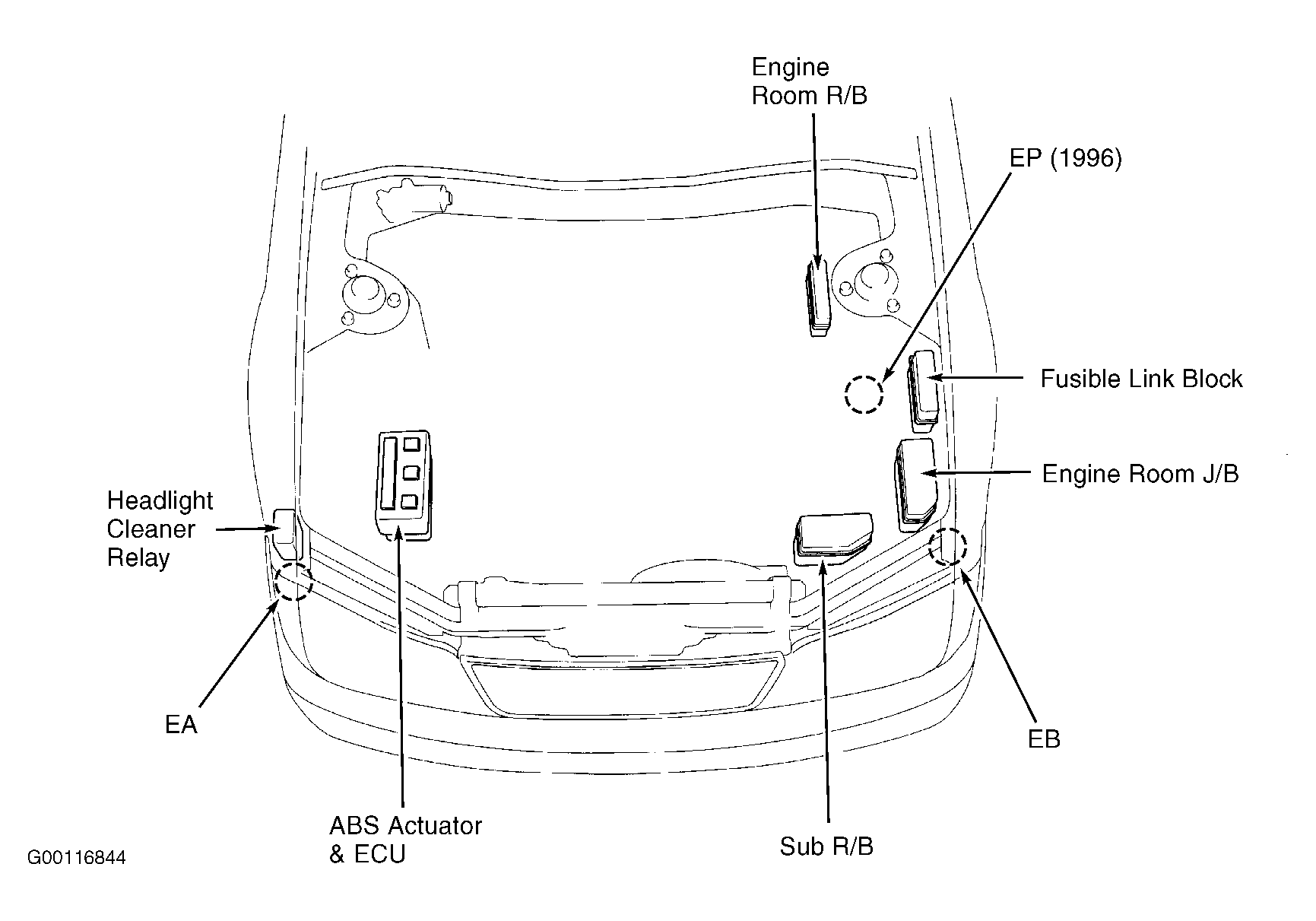

| Engine Room J/B | On left front of engine compartment. See Figure. |
| Engine Room R/B | On left rear of engine compartment. See Figure. |
| Fusible Link Block | On left side of engine compartment. See Figure. |
| Sub R/B | On left front of engine compartment. See Figure. |
