Throttle Body: Removal

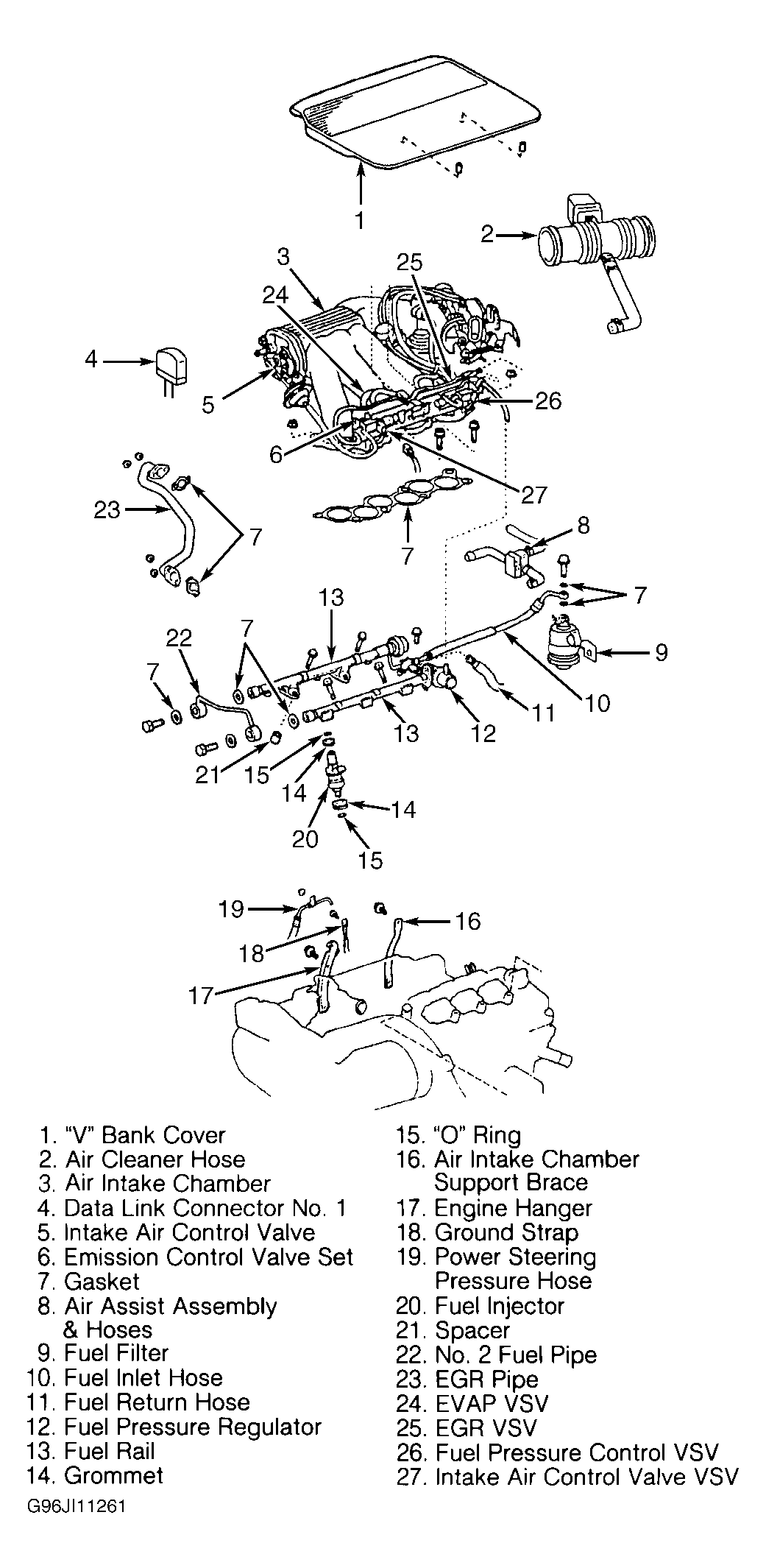

- Drain cooling system. Remove air cleaner hose from throttle body. See Figure. Disconnect control cables, air hoses, coolant hoses, vacuum hoses and electrical connectors at throttle body.
- Remove bolts/nuts, throttle body and gasket. Remove bolts, Idle Air Control (IAC) valve and gasket from throttle body (if necessary).
