DTC 13 & DTC 14 Abs Control (Motor) Relay Circuit

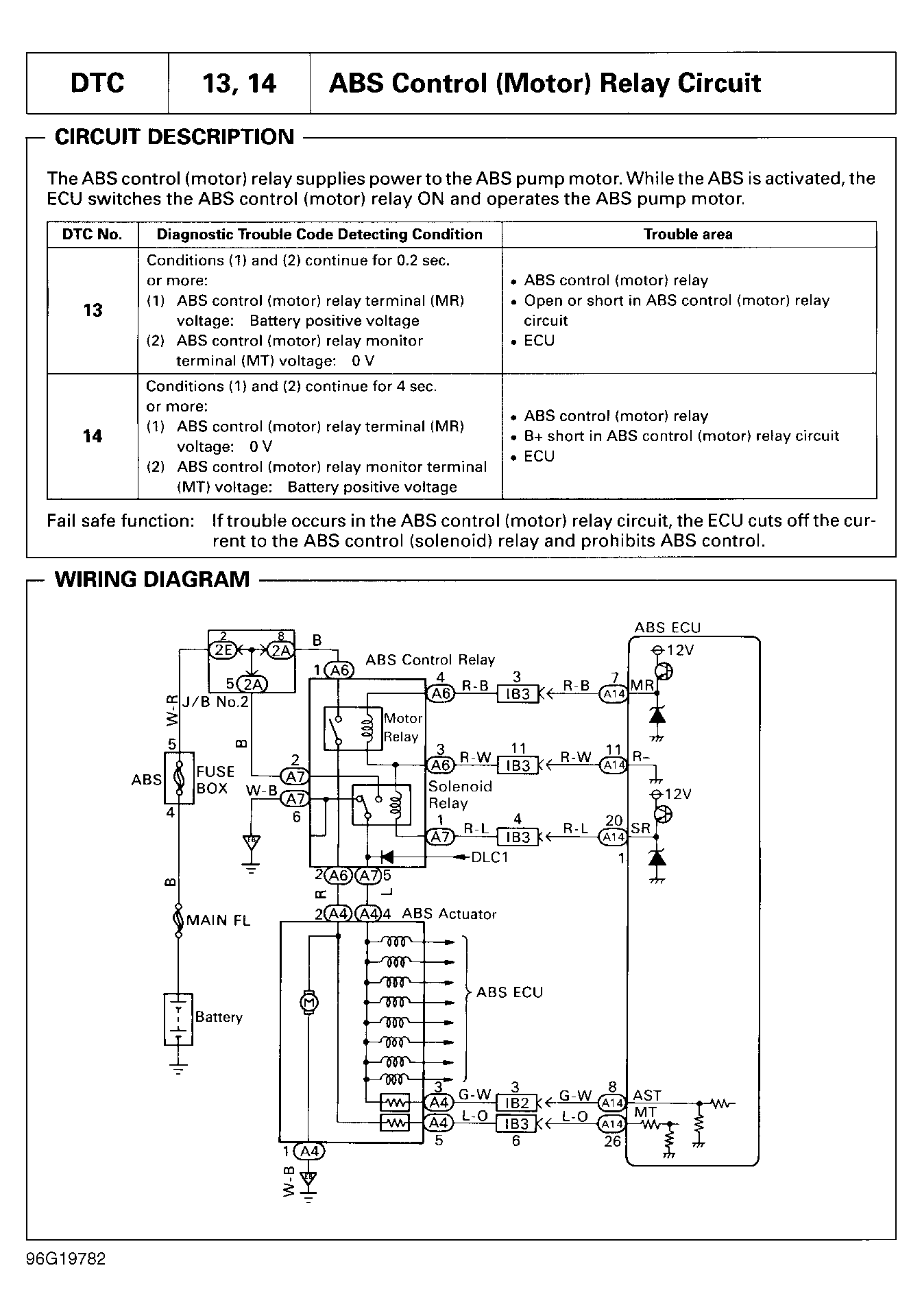

Fig 1: DTC 13 & DTC 14 ABS CONTROL (MOTOR) RELAY CIRCUIT CHART (1 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

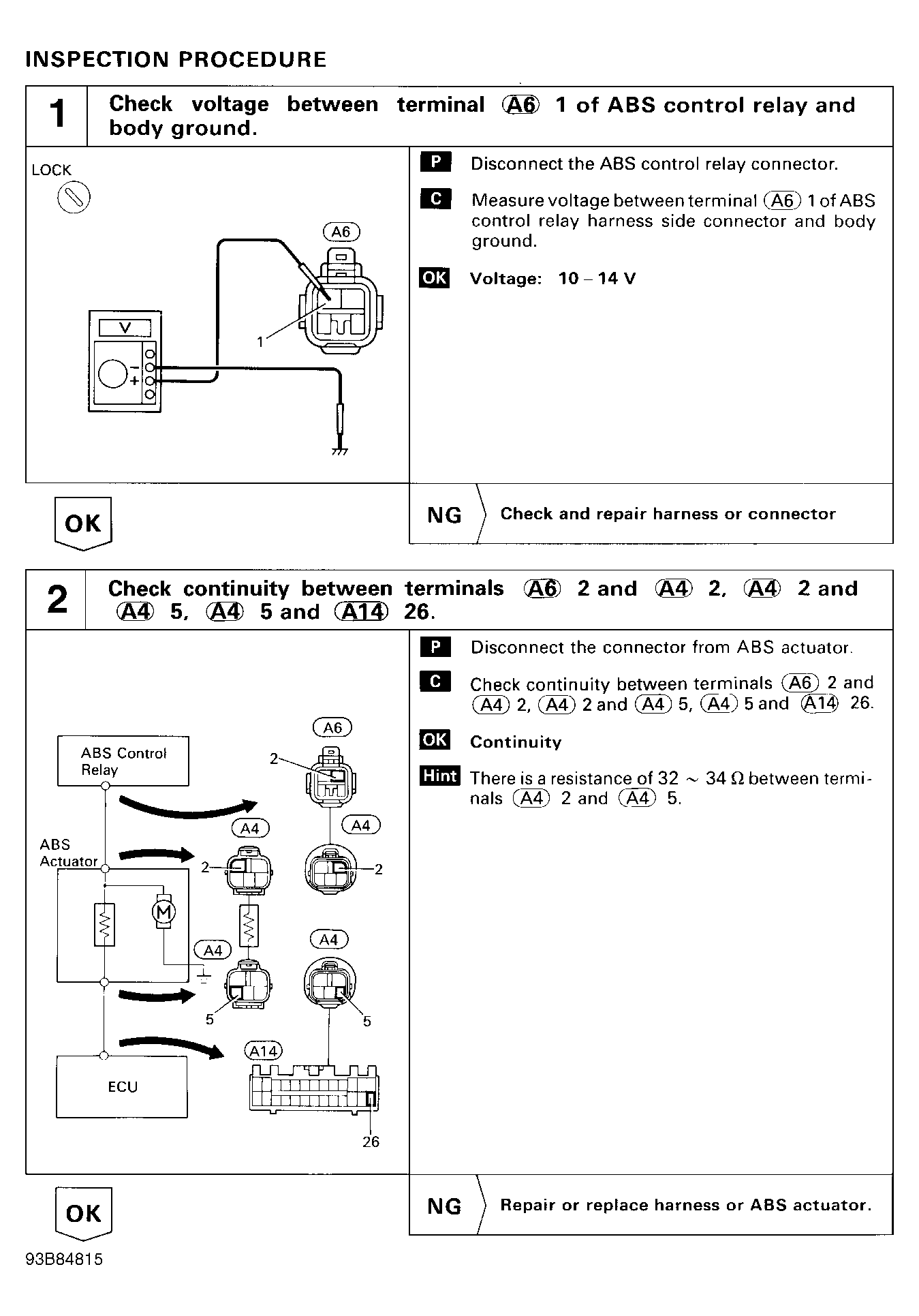

Fig 2: DTC 13 & DTC 14 ABS CONTROL (MOTOR) RELAY CIRCUIT CHART (2 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

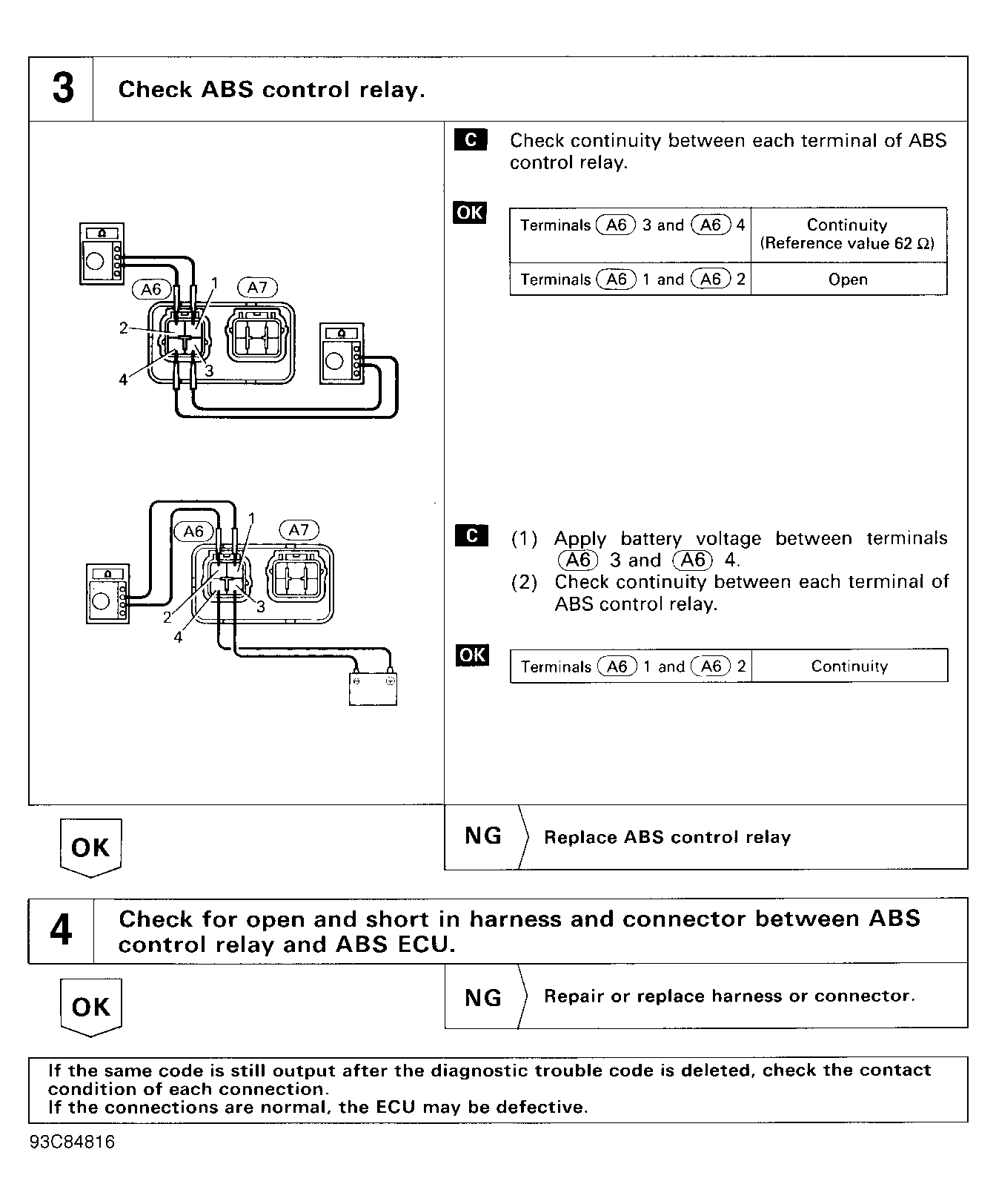

Fig 3: DTC 13 & DTC 14 ABS CONTROL (MOTOR) RELAY CIRCUIT CHART (3 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
