DTC 41 IG Power Source Circuit

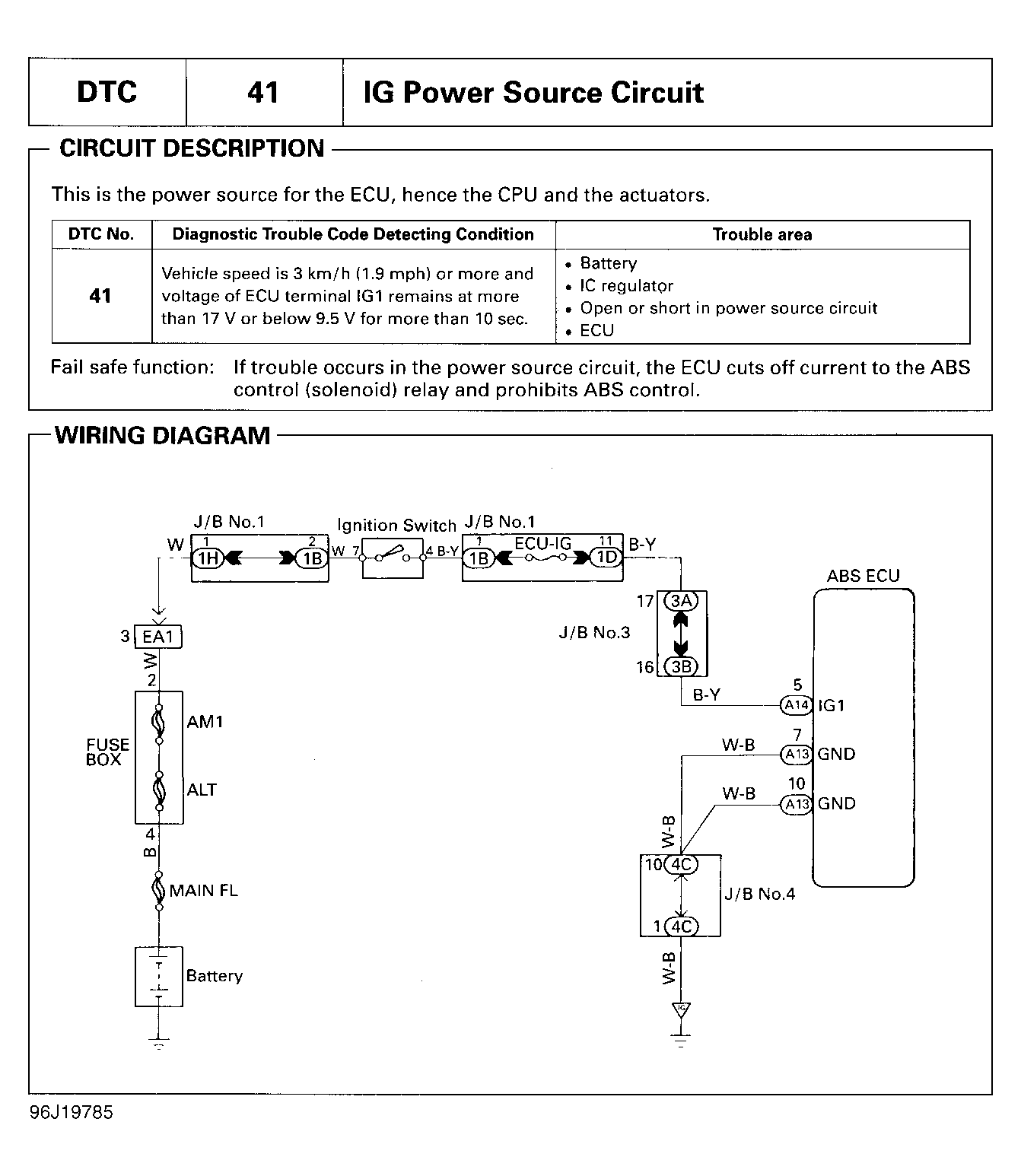

Fig 1: DTC 41 IG POWER SOURCE CIRCUIT CHART (1 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

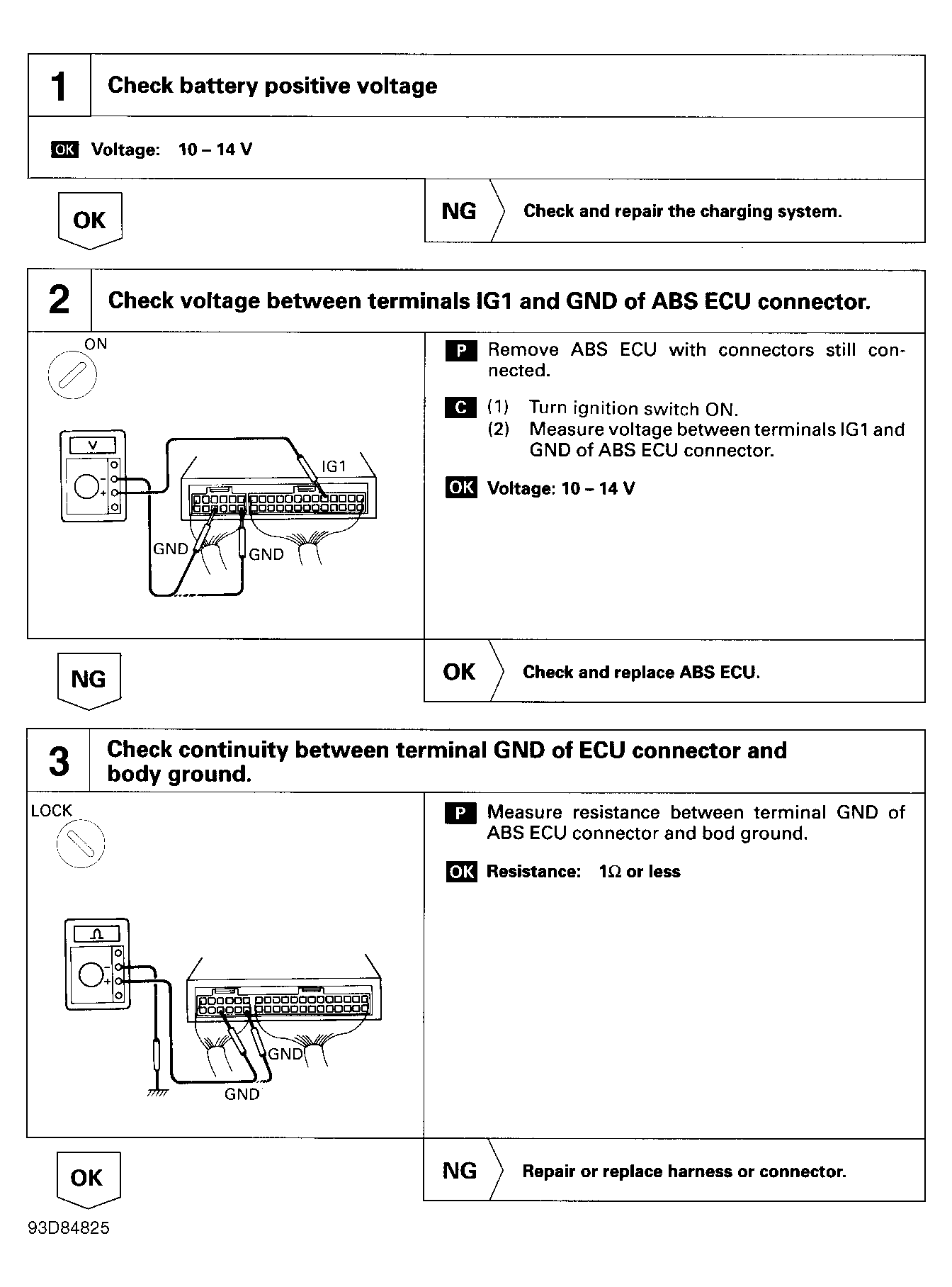

Fig 2: DTC 41 IG POWER SOURCE CIRCUIT CHART (2 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

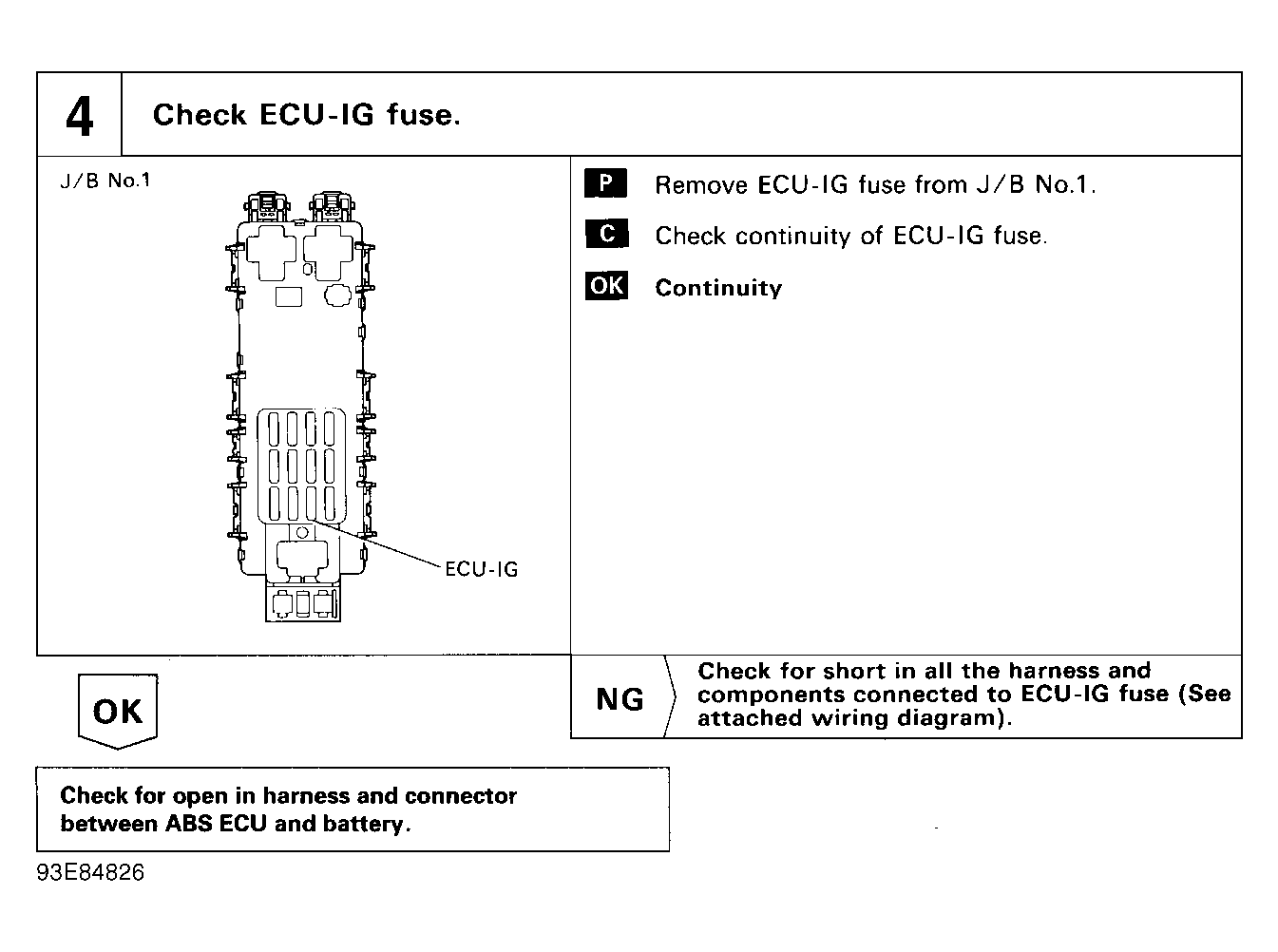

Fig 3: DTC 41 IG POWER SOURCE CIRCUIT CHART (3 OF 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
