Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

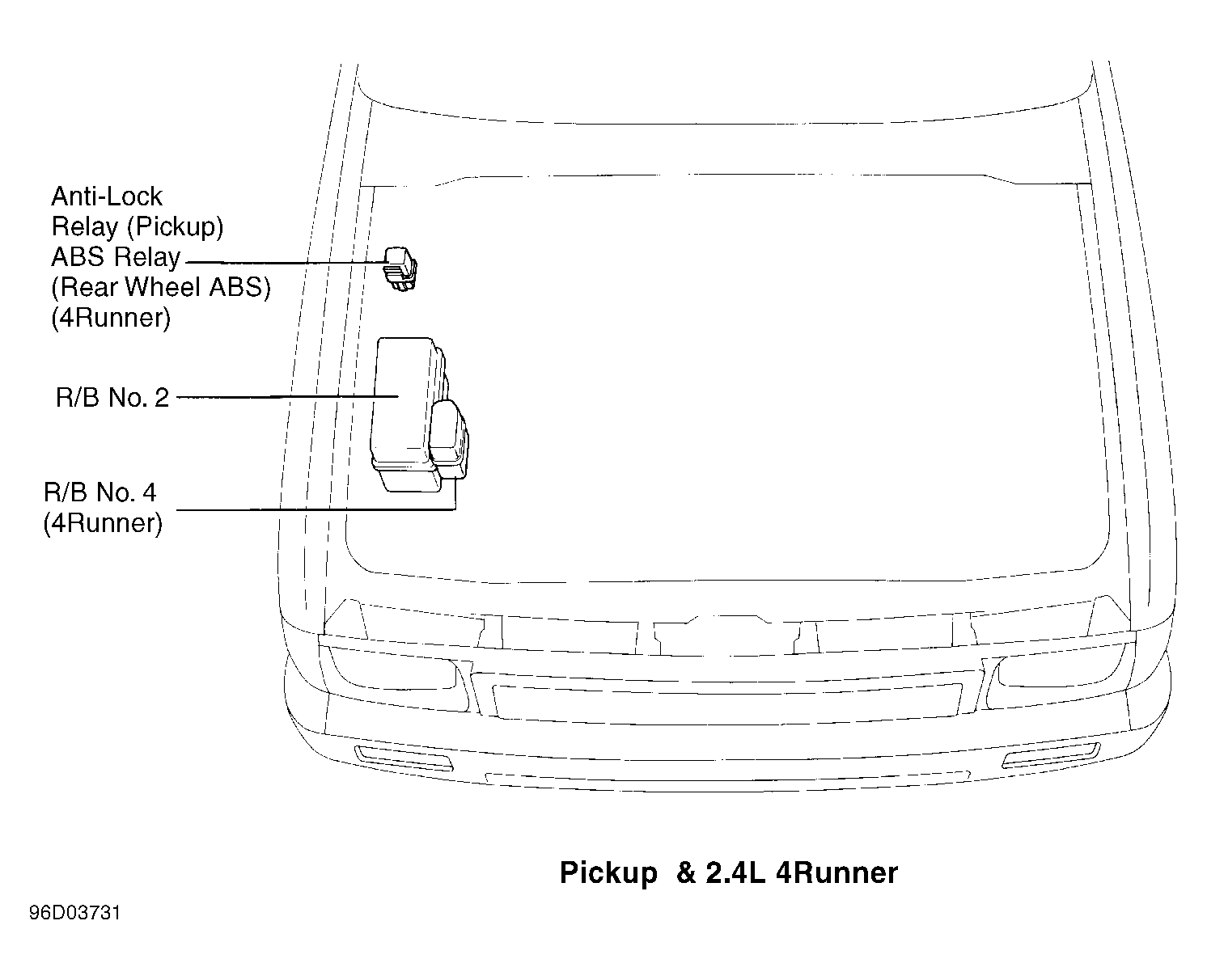

Fig 1: Engine Compartment (Pickup & 2.4L 4Runner)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

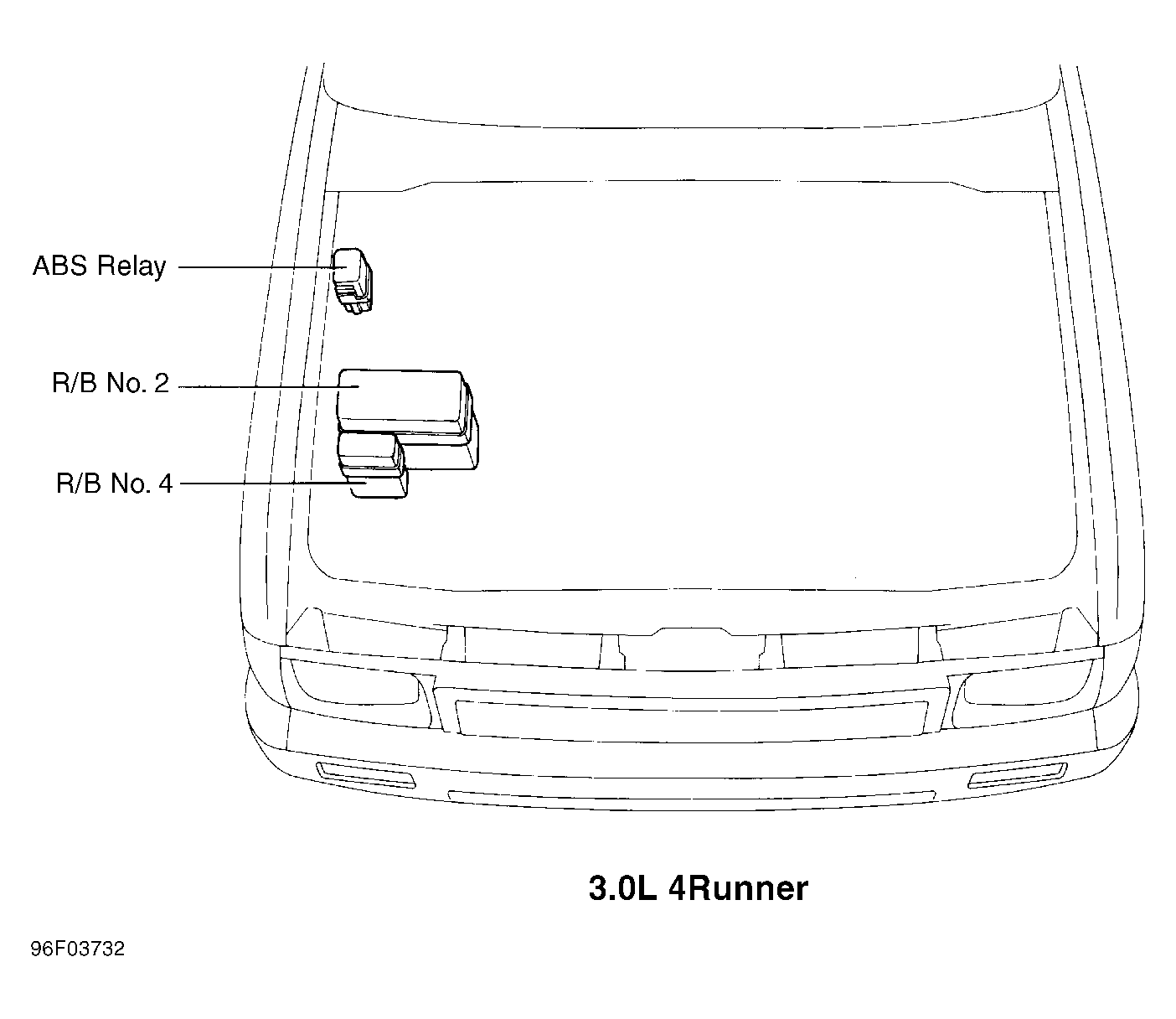

Fig 2: Engine Compartment (3.0L 4Runner)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

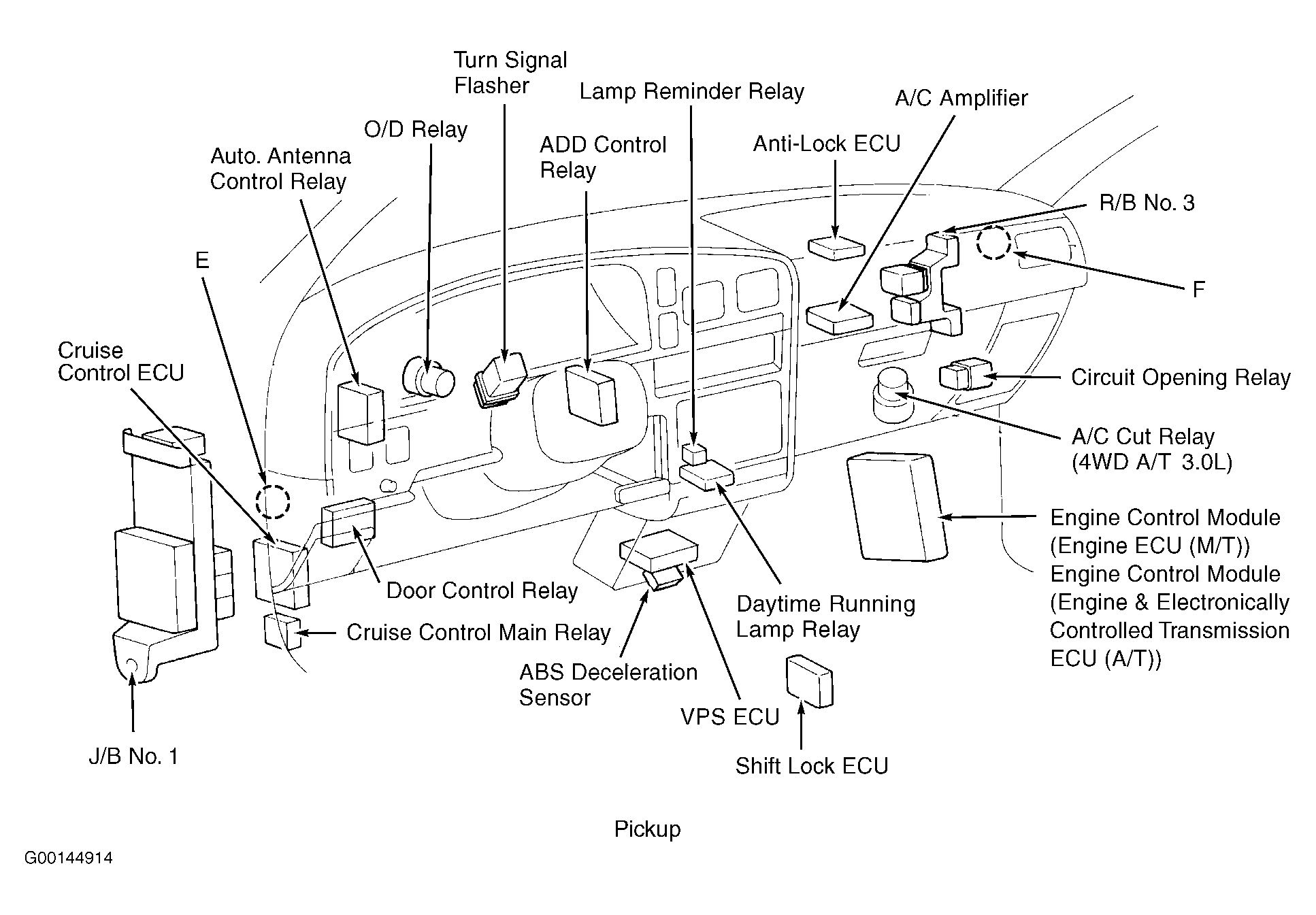

Fig 3: Dash (Pickup)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

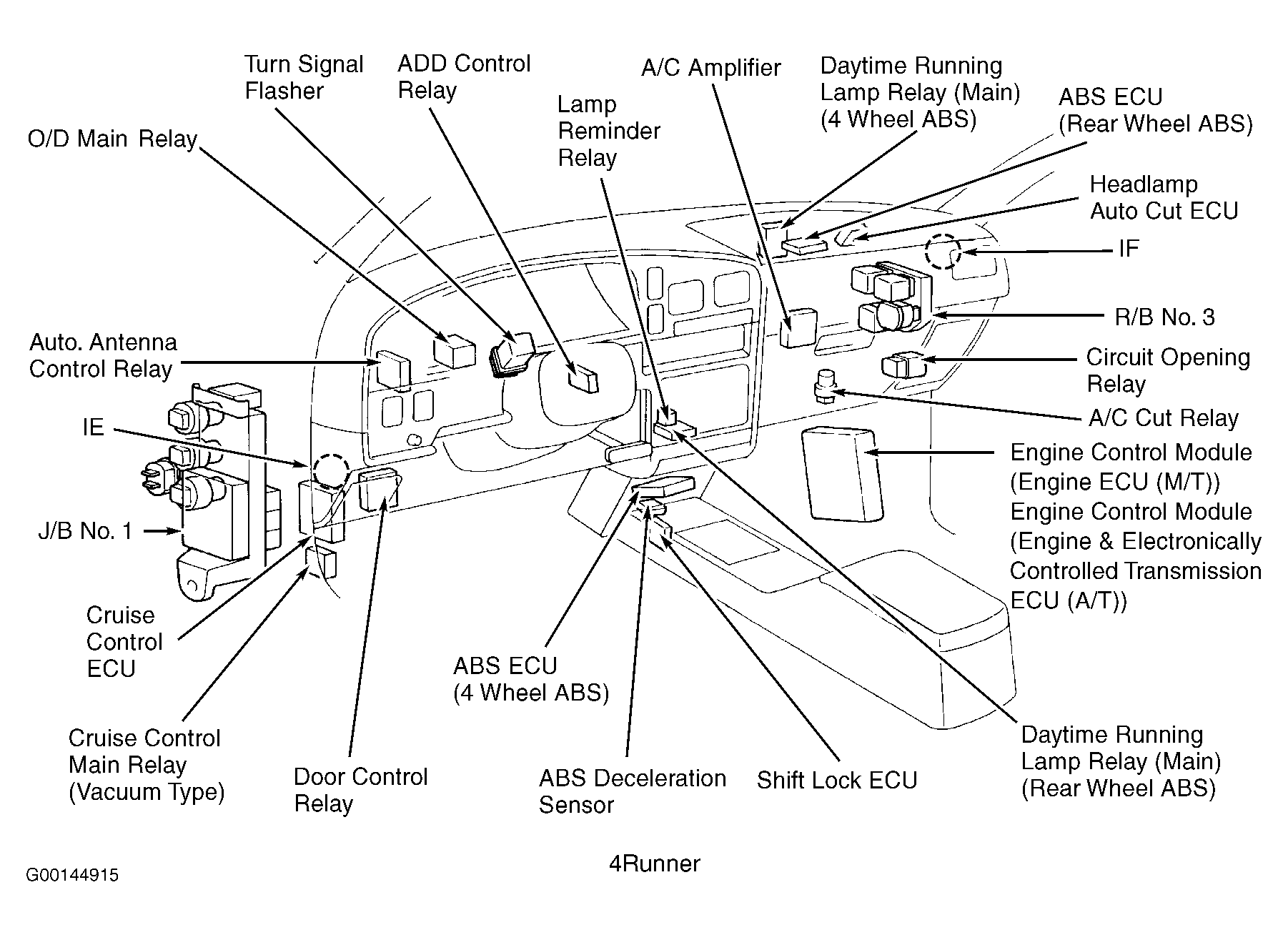

Fig 4: Dash (4Runner)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
