Pump Motor Relay

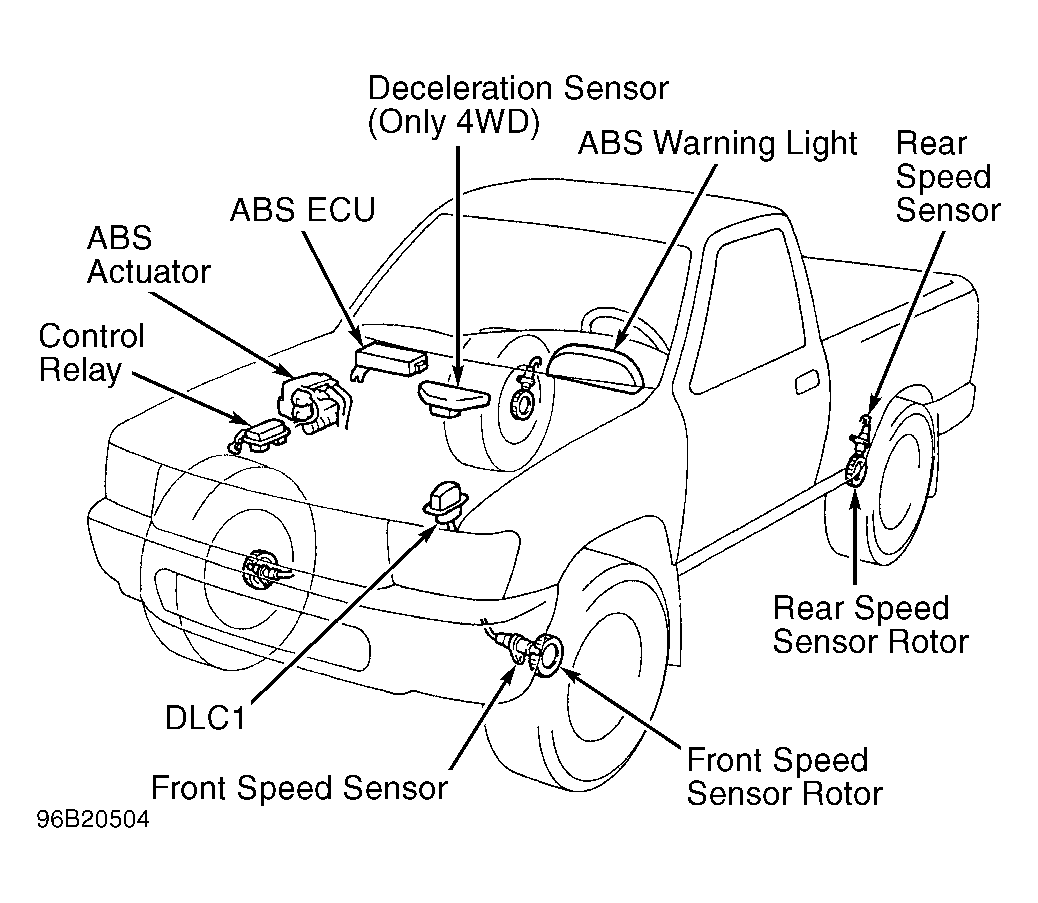

- Remove pump motor relay (control relay). See Figure and Figure through Figure . Using a DVOM, check continuity between specified terminals. Continuity should not exist between relay terminals No. 7 and 8. Continuity should exist between relay terminals No. 9 and 10. If continuity is not as specified, replace relay.
- Using fused jumper wire, connect positive battery terminal to pump motor relay terminal No. 10. Connect negative battery terminal to pump motor relay terminal No. 9. See Figure through Figure . Continuity should exist between relay terminals No. 7 and 8. If continuity is not as specified, replace pump motor relay.
