EGR Check Valve: A/T

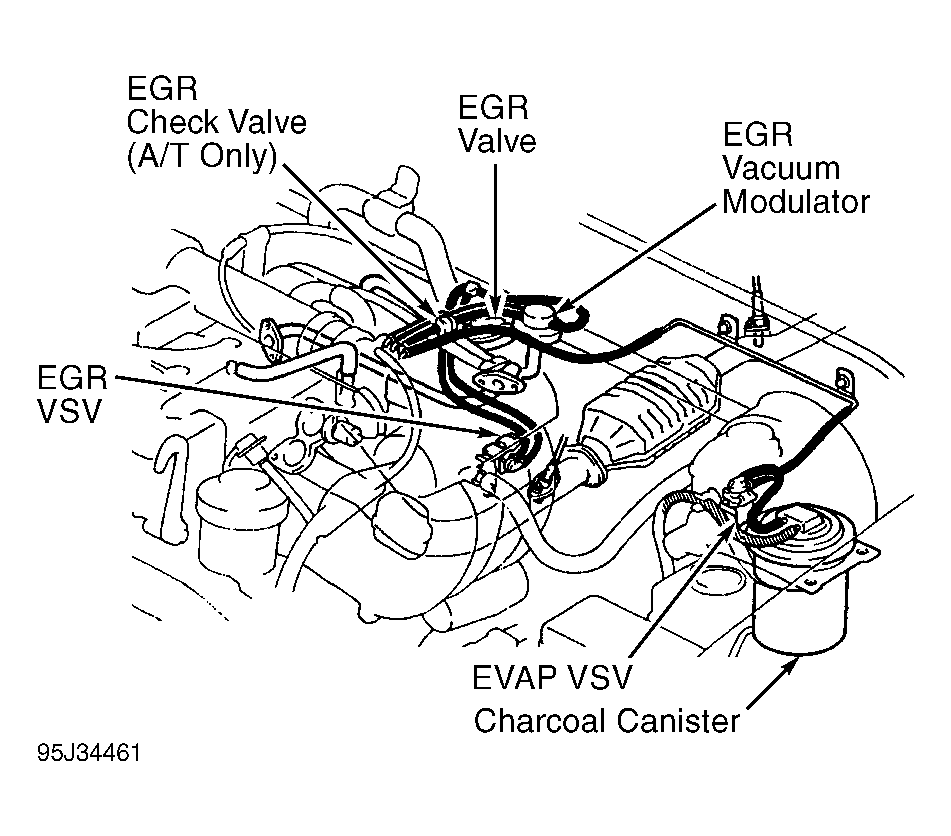

- Remove EGR check valve. See Fig 1. Apply air pressure on Orange end of EGR check valve. Air should flow through the EGR check valve.
- Apply air pressure on Black end of EGR check valve. Air should not flow through the EGR check valve. Replace EGR check valve if defective.
