Starting System: Overhaul

NOTE: Overhaul procedures are not available from manufacturer. For exploded views of starters, see Fig 1-Fig 2 .

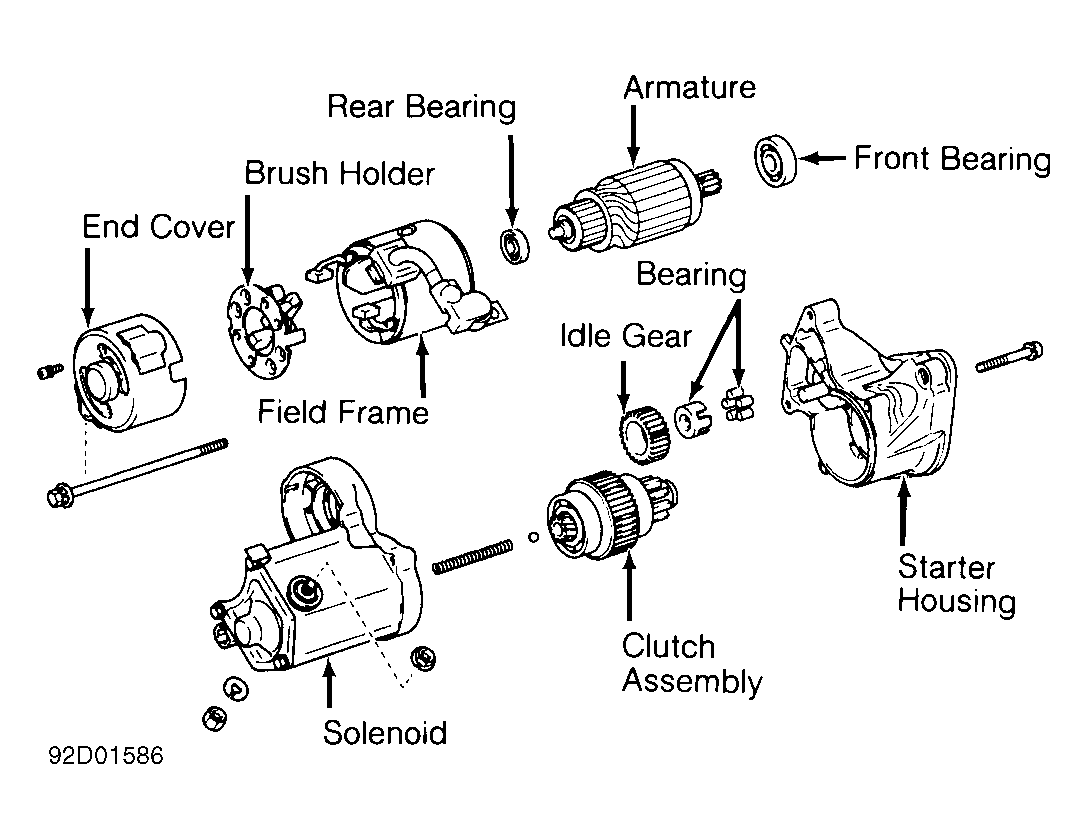

Fig 1: Exploded View Of Reduction Gear Starter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

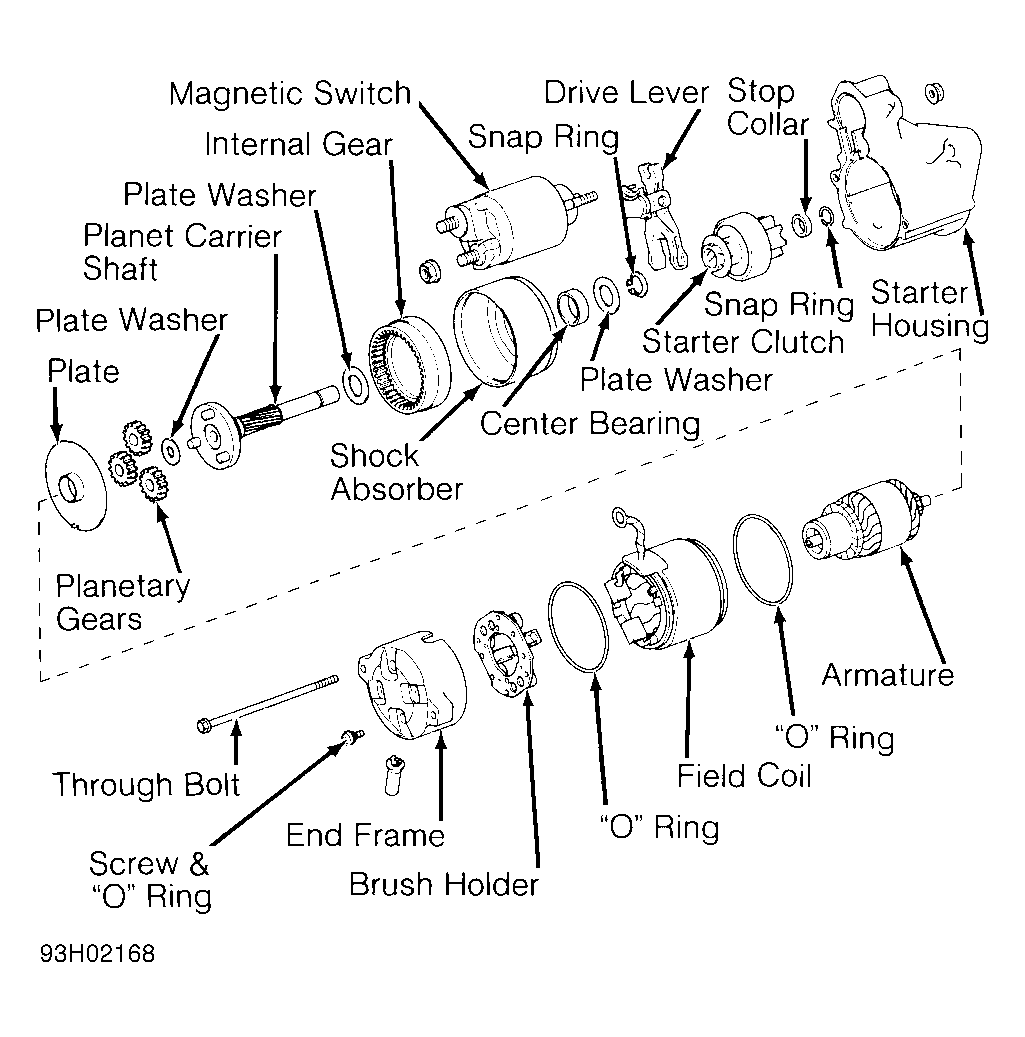

Fig 2: Exploded View Of Planetary Gear Starter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
