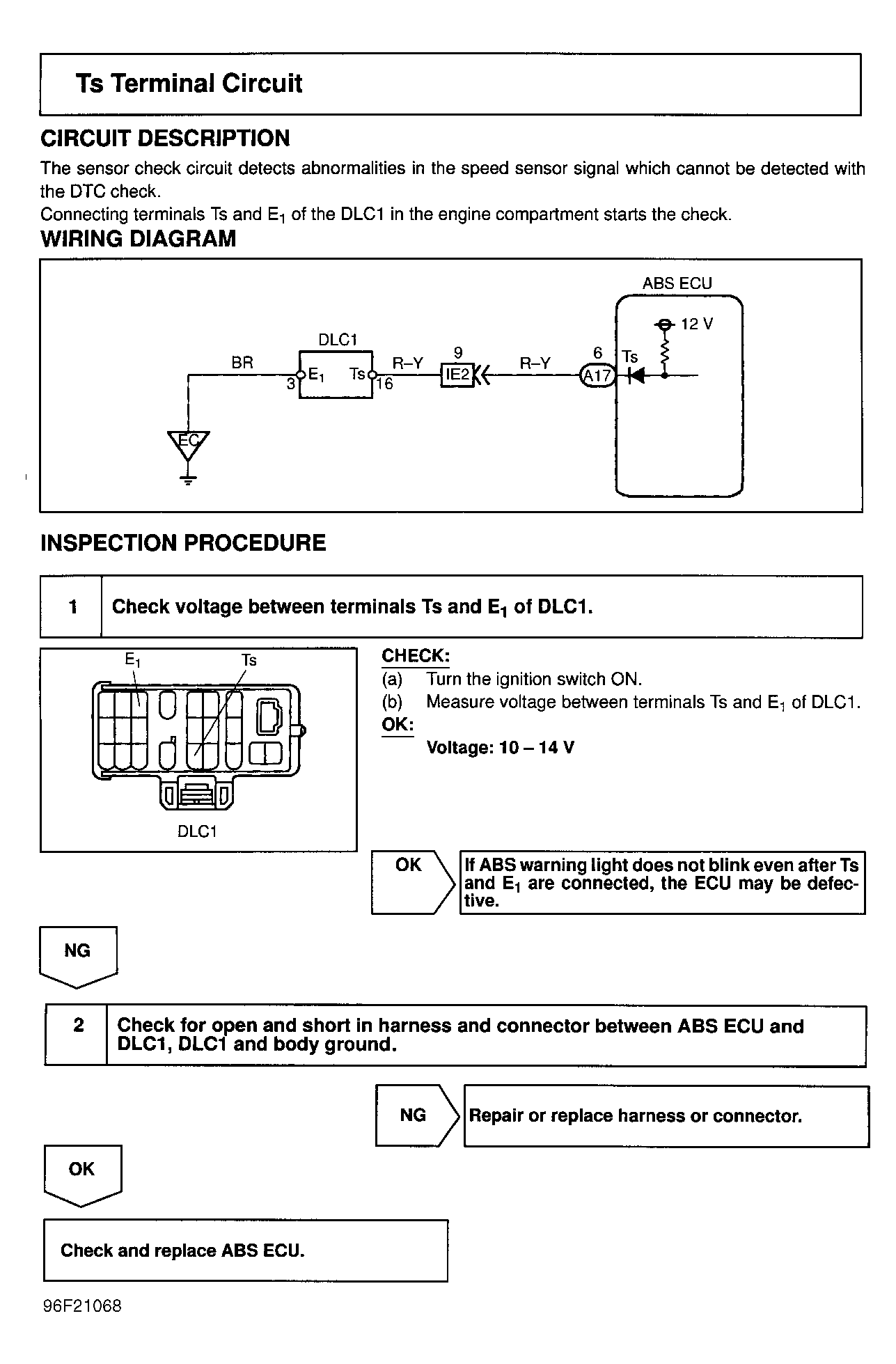

Ts TERMINAL CIRCUIT
DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC 11 & 12 | ABS CONTROL (SOLENOID) RELAY CIRCUIT |
| DTC 13 & 14 | ABS CONTROL (MOTOR) RELAY CIRCUIT |
| DTC 21, 22 & 23 | ABS ACTUATOR SOLENOID CIRCUIT |
| DTC 31, 32, 33 & 34 | SPEED SENSOR CIRCUIT |
| DTC 37 | NEITHER FRONT SPEED SENSOR ROTOR MISSING |
| DTC 37 | TIRES OF DIFFERENT SIZE (2WD) |
| DTC 41 | IG POWER SOURCE CIRCUIT |
| DTC 43 | DECELERATION SENSOR MALFUNCTION |
| DTC 44 | DECELERATION SENSOR CIRCUIT |
| DTC 48 | REAR DIFFERENTIAL LOCK CIRCUIT |
| DTC 51 | ABS PUMP MOTOR LOCK |
