Fuel Evaporation System: Notes

NOTE: Fuel evaporation systems contain different components depending on application. See Fig 1. When testing fuel evaporation system components, use illustration to determine component location.

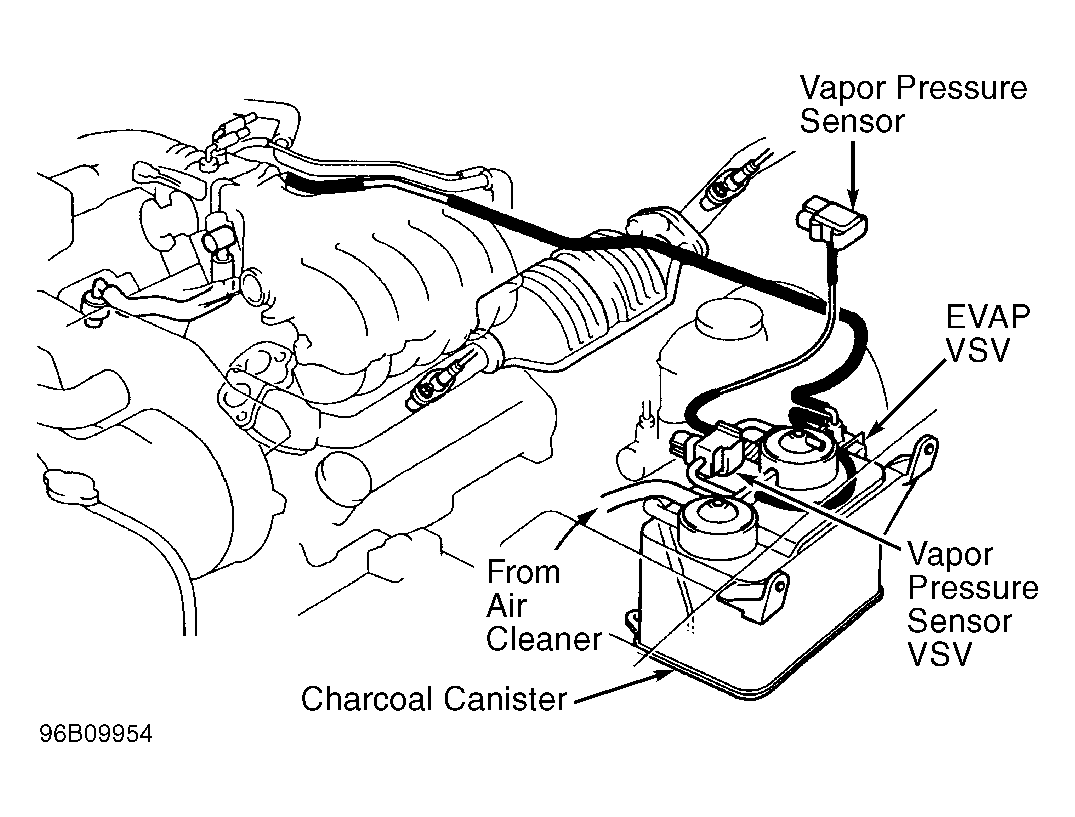

Fig 1: Emission System Component ID 4Runner
