Rear Suspension
- Measure rear camber. See WHEEL ALIGNMENT SPECIFICATIONS . If adjustment is necessary, see appropriate adjustment procedure.

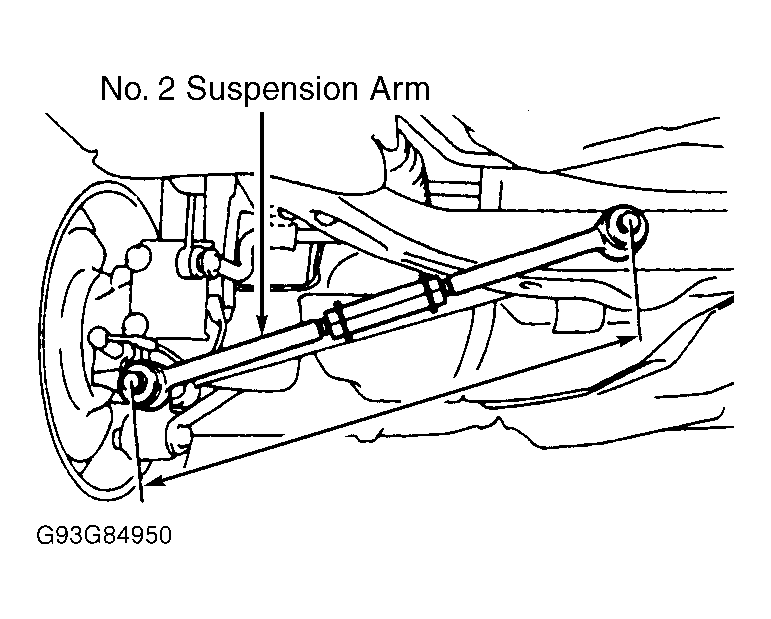

- Bounce both ends of vehicle several times to settle suspension. Measure length of left and right No. 2 suspension arms. See Fig 1. Ensure lengths of both arms are equal within 0.04" (1.0 mm).
- If toe-in is not within specification, adjust toe-in by rotating rear toe adjuster sleeves, located on No. 2 suspension arms. See WHEEL ALIGNMENT SPECIFICATIONS . Tighten lock nuts to specification after adjustment. See TORQUE SPECIFICATIONS .
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
